Firestone W01-358-1023 Air Bags 3-Ply Air Shock Absorber Bellows
Max OD. 37.4 Inches
Product Description:
AIRSUSTECH Air Springs are highly durable, precisely engineered and
cost effective for use in a wide variety of actuation and vibration
isolation applications. With time-tested designs, fabric-reinforced
Neoprene or Natural Rubber flex member construction and
corrosion-protected end retainers, AIRSUSTECH Air Springs provide
superior quality and performance. As an actuator, AIRSUSTECH Air
Springs provide linear or angular motion. As an isolator, air
springs are effective in reducing the harmful effects of vibration.
Specifications and Technical Parameters:
3H1023 Specifications:
| Minimum Height | 5.5 Inches |
| Maximum Height | 23 Inches |
| Stroke Height | 17.5 Inches |
| Design Height | 15 Inches |
| OEM NO. | Style 348-3 |
| Structure | Triple Convolutions |
| Material | Rubber |
3H1023 Technical Parameters:
Force (at 14.0 in.) @ 20 psig (pounds): 16,230
Force (at 14.0 in.) @ 40 psig (pounds): 32,380
Force (at 14.0 in.) @ 60 psig (pounds): 49,170
Force (at 14.0 in.) @ 80 psig (pounds): 66,610
Force (at 14.0 in.) @ 80 psig (pounds): 84,820
Natural frequency (at: 40 psig) (cpm): 73
Natural frequency (at: 60 psig) (cpm): 70
Natural frequency (at: 80 psig) (cpm): 68
Natural frequency (at: 100 psig) (cpm): 67
Cross References:
There are several other models of the product with style 348-3:
| Rubber bellows only | W01-358-1023, W01 358 1023, W013581023 WO1-358-1023, WO1 358 1023, WO13581023 |
| Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts,
washers | W01-358-9603, W01 358 9603 , W01358 9603 WO1-358-9603, WO1 358 9603, WO13589603 |
| Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts,
washers | W01-M58-6971, W01M586971, WO1-M58-6971 WO1 M58 6971, WO1M586971, W01 M58 6971 |
Attention Must Be Paid When Installation The Air Spring:
In designs that use air springs, care must be taken to ensure that
no sharp edges are in contact with the springs of the spring
element. This must verify maximum expansion and zero pressure
operation, particularly for leaf and sleeve rolled leaf springs,
which is a reduction in surface pressure drop in the gap between
the meniscus and the piston support. The outer envelope of the air
spring must clear the maximum air spring of 2 inches in diameter to
allow for normal growth and misalignment.
FAQ:
Q: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes
or as per the customers' requirements. |
Q: How long does it take to get product after placing the order?
A: The delivery time of your ordered product varies as per what
you've ordered and the shipping method that you've chosen. The
estimated delivery time is mentioned during the checkout process,
so be carefree while shopping. |
Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours. |

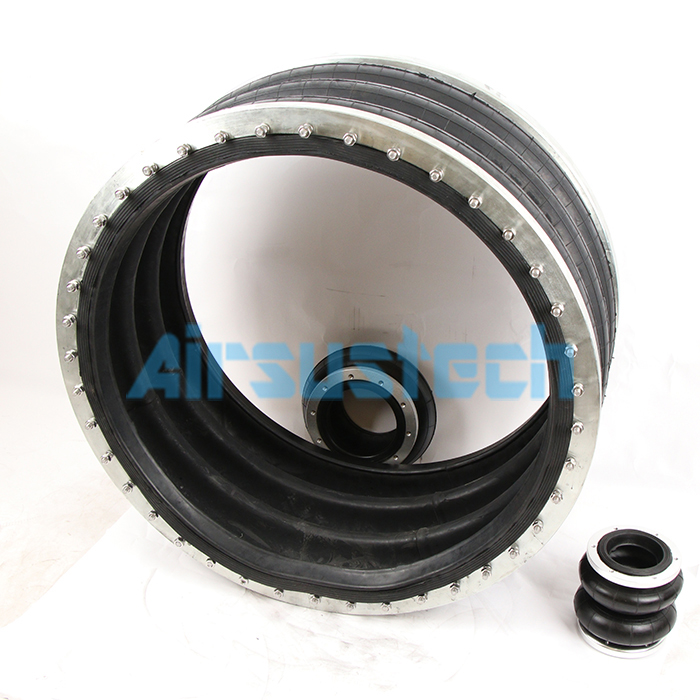

3H1023 Real and Comparison Pictures:
