Firestone W01-358-9603 Triple Convoluted Air Spring Stamped Flange
Air Shock Absorber
Product Description:
Air spring is a device that uses compressed air to achieve
suspension and shock absorption. It is widely used in automobiles,
trucks, trains, engineering machinery and other fields. Among them,
stamped flange air spring, as an important type, has the advantages
of simple structure, easy use and stable performance.
Specifications and Technical Parameters:
3H9603 Specifications:
| Minimum Height | 5.5 Inches | Top Cover Plate | 35.04 Inches |
| Maximum Height | 23 Inches | Bottom Cover Plate | 35.04 Inches |
| Stroke Height | 17.5 Inches | Bolts Type | 40(3/8-24) |
| Design Height | 15 Inches | Bolt Center Distance | 32.68 Inches |
| OEM NO. | Style 348-3 | Structure | Triple Convolutions |
3H9603 Technical Parameters:
Dynamic Characteristics at 15.0 in. Design Height (Required for Airmount isolator design only) |
| Volume @ 100 PSIG=13,501 in3 | Natural Frequency |
Gauge Pressure (PSIG) | Load (Ibs.) | Spring Rate (Ibs./in.) | CPM | HZ |
| 40 | 31,480 | 4,761 | 73 | 1.22 |
| 60 | 47,870 | 6,586 | 70 | 1.16 |
| 80 | 64,870 | 8,614 | 68 | 1.14 |
| 100 | 64,870 | 8,614 | 68 | 1.14 |
Cross References:
There are several other models of the product with style 348-3:
1. Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts,
nuts, washers:W01-358-9603, W01 358 9603 , W01358 9603, WO1-358-9603, WO1 358
9603, WO13589603
2. Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts,
nuts, washers:
W01-M58-6971, W01M586971, WO1-M58-6971, WO1 M58 6971, WO1M586971,
W01 M58 6971
3. Rubber Bellows only:
W01-358-1023, W01 358 1023, W013581023, WO1-358-1023, WO1 358 1023,
WO13581023
Product Application:
- Gate Valve Operator
- Glue Coating Machine
- Web Tightening Tool
- Stripper
- Tool Spring Driver
- Quenching Drain Driver
- Paper Mill
- Pickling Tank Driver
About Us:
We always focus on the development of automotive parts and provide
you with quality products and competitive prices.
If you are interested in our products, we are happy to provide you
with the best quotation. If you have any questions, please let me
know.
We look forward to establishing business with you.

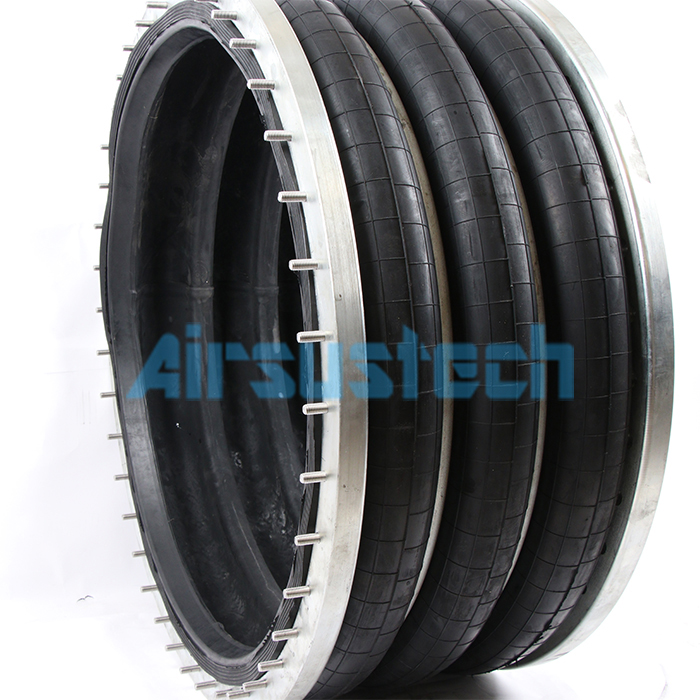

3H9603 Real and Comparison Pictures:
