Air spring is a device that uses compressed air to achieve suspension and shock absorption. It is widely used in automobiles, trucks, trains, engineering machinery and other fields. Among them, stamped flange air spring, as an important type, has the advantages of simple structure, easy use and stable performance.
Specifications and Technical Parameters:
3H1023 Specifications:
Minimum Height | 5.5 Inches |
Maximum Height | 23 Inches |
Stroke Height | 17.5 Inches |
Design Height | 15 Inches |
OEM NO. | Style 348-3 |
Structure | Triple Convolutions |
Material | Rubber |
3H1023 Technical Parameters:
Dynamic Characteristics at 15.0 in. Design Height (Required for Airmount isolator design only) | ||||
Volume @ 100 PSIG=13,501 in3 | Natural Frequency | |||
Gauge Pressure (PSIG) | Load (Ibs.) | Spring Rate (Ibs./in.) | CPM | HZ |
40 | 31,480 | 4,761 | 73 | 1.22 |
60 | 47,870 | 6,586 | 70 | 1.16 |
80 | 64,870 | 8,614 | 68 | 1.14 |
100 | 64,870 | 8,614 | 68 | 1.14 |
Force Table (Use for Airstroke actuator design) | ||||||
Assembly Height (in.) | Volume @ 100 PSIG (in3) | Pounds Force | ||||
@ 20 PSIG | @ 40 PSIG | @ 60 PSIG | @ 80 PSIG | @ 100 PSIG | ||
18.0 | 15,946 | 14,080 | 27,430 | 43,790 | 57,710 | 74,670 |
16.0 | 14,340 | 15,190 | 30,370 | 46,420 | 62,810 | 80,190 |
14.0 | 12,634 | 16.230 | 32,380 | 49,170 | 66,610 | 84,820 |
12.0 | 10,8,984 | 18,290 | 35,370 | 51,470 | 69,410 | 89,150 |
10.0 | 8,984 | 18,290 | 35,370 | 53,580 | 71,930 | 93,030 |
8.0 | 7,075 | 19,070 | 36,970 | 55,590 | 74,740 | 96,470 |
6.0 | 5,102 | 19,760 | 38,620 | 57,550 | 77,790 | 99,680 |
Cross References:
There are several other models of the product with style 348-3:
W01-358-1023, W01 358 1023, W013581023, WO1-358-1023, WO1 358 1023, WO13581023
W01-358-9603, W01 358 9603 , W01358 9603, WO1-358-9603, WO1 358 9603, WO13589603
3. Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers:
W01-M58-6971, W01M586971, WO1-M58-6971, WO1 M58 6971, WO1M586971, W01 M58 6971
FAQ:
Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in
good condition.
(3) Track and receive feedback from our customers.
Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.
Q: What is the model number of the Suspension Air Springs?
A: The model number of the Suspension Air Springs is 3H1023.

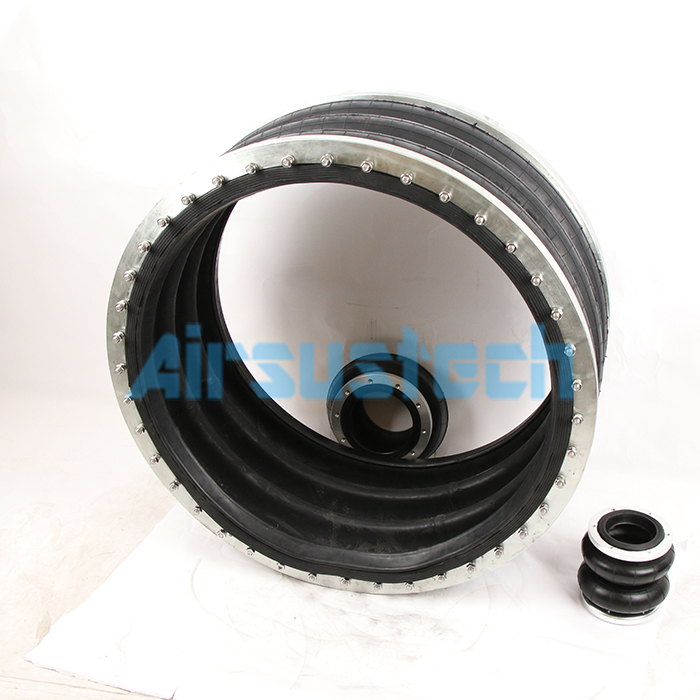

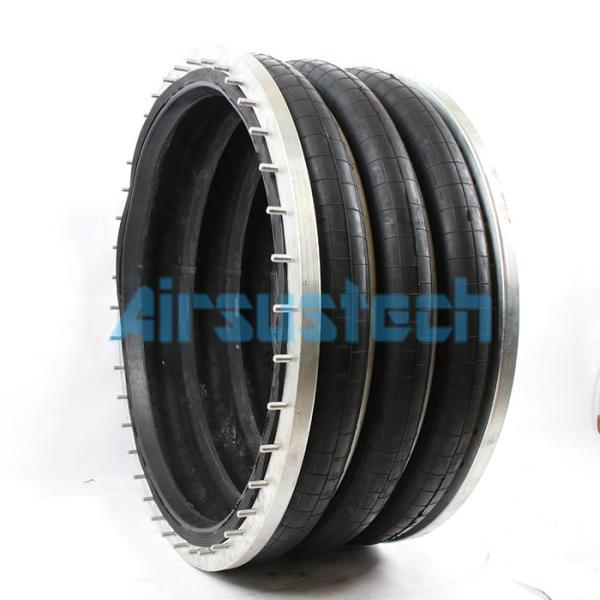

3H1023 Real and Comparison Pictures:
![]() |
