    Firestone W01-358-9603 Air Spring Assembly Cover Plate Diameter 35.04 Inches Air Bag

    Ask Lasest Price
    Brand Name : AIRSUSTECH Air Springs
    Model Number : 3H9603
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone W01-358-9603 Air Spring Assembly Cover Plate Diameter 35.04 Inches Air Bag

    Firestone W01-358-9603 Air Spring Assembly Cover Plate Diameter 35.04 Inches Air Bag


    Product Description:

    AIRSUSTECH actuators are playing a crucial role in modern machine design as pneumatic actuators in industrial applications.
    Due to their durability, ability to withstand abrasive environments, and exceptional performance, AIRSUSTECH actuators are becoming a popular replacement for traditional pneumatic and hydraulic cylinders.


    Specifications and Technical Parameters:


    3H9603 Specifications:

    Bellow MAX. Diameter at 100 PSIG37.4 Inches
    Minimum Height5.5 Inches
    Maximum Height23 Inches
    Stroke Height17.5 Inches
    Design Height15 Inches
    Top Cover Plate35.04 Inches
    Bottom Cover Plate35.04 Inches
    Bolts Type40(3/8-24)
    Bolt Center Distance32.68 Inches
    StructureTriple Convolutions
    OEM No.Style 348-3

    3H9603 Technical Parameters:

    Dynamic Characteristics at 15.0 in. Design Height

    (Required for Airmount isolator design only)

    Volume @ 100 PSIG=13,501 in3Natural Frequency

    Gauge

    Pressure (PSIG)

    Load (Ibs.)

    Spring Rate

    (Ibs./in.)

    CPMHZ
    4031,4804,761731.22
    6047,8706,586701.16
    8064,8708,614681.14
    10064,8708,614681.14

    Cross References:


    There are several other models of the product with style 348-3:


    Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers

    W01-358-9603, W01 358 9603 , W01358 9603

    WO1-358-9603, WO1 358 9603, WO13589603

    Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers

    W01-M58-6971, W01M586971, WO1-M58-6971

    WO1 M58 6971, WO1M586971, W01 M58 6971

    Rubber Bellows only

    W01-358-1023, W01 358 1023, W013581023

    WO1-358-1023, WO1 358 1023, WO13581023


    Applications:


    AIRSUSTECH industrial products are used in an array of industries ranging from air springs for agriculture equipment to anti-vibration solutions for commercial trailers. Some common industries AIRSUSTECH serves are:


    • Commercial Truck & Trailer
    • Rail Applications
    • Agriculture
    • Construction and Mining
    • Actuators and Isolators

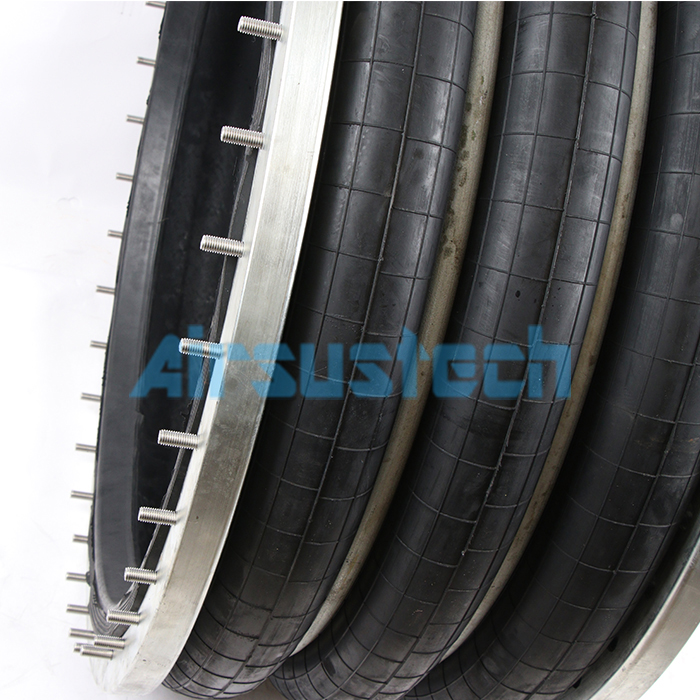

    3H9603 Real Pictures:



    Quality Firestone W01-358-9603 Air Spring Assembly Cover Plate Diameter 35.04 Inches Air Bag for sale
