    W01-358-9603 Firestone Industrial Bellows Actuator Max Height 23 Inches Air Shocks

    Ask Lasest Price
    Brand Name : AIRSUSTECH Air Springs
    Model Number : 3H9603
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    W01-358-9603 Firestone Industrial Bellows Actuator Max Height 23 Inches Air Shocks

    W01-358-9603 Firestone Industrial Bellows Actuator Max Height 23 Inches Air Shocks


    Product Description:

    Air springs are pneumatic devices that convert the energy of compressed air into pressure. Air cylinders are mechanical devices that apply force by converting the potential energy of compressed gas into kinetic energy. Pneumatics is a technology that uses compressed air to operate different mechanisms. In the industrial sector, it is used in a variety of processes and applications.


    Specifications and Technical Parameters:


    3H9603 Specifications:


    1. Bellow MAX. Diameter at 100 PSIG: 37.4 Inches
    2. Minimum Height: 5.5 Inches
    3. Maximum Height: 23 Inches
    4. Stroke Height: 17.5 Inches
    5. Design Height: 15 Inches
    6. Top Cover Plate: 35.04 Inches
    7. Bottom Cover Plate: 35.04 Inches
    8. Bolts Type: 40(3/8-24)
    9. Bolt Center Distance: Triple Convolutions
    10. OEM NO.: Style 348-3

    3H9603 Technical Parameters:

    Force Table (Use for Airstroke actuator design)

    Assembly

    Height

    (in.)

    Volume

    @ 100 PSIG

    (in3)

    Pounds Force
    @ 20 PSIG@ 40 PSIG@ 60 PSIG@ 80 PSIG@ 100 PSIG
    18.015,94614,08027,43043,79057,71074,670
    16.014,34015,19030,37046,42062,81080,190
    14.012,63416.23032,38049,17066,61084,820
    12.010,8,98418,29035,37051,47069,41089,150
    10.08,98418,29035,37053,58071,93093,030
    8.07,07519,07036,97055,59074,74096,470
    6.05,10219,76038,62057,55077,79099,680

    Cross References:


    There are several other models of the product with style 348-3:


    1. Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers:

    W01-358-9603, W01 358 9603 , W01358 9603, WO1-358-9603, WO1 358 9603, WO13589603


    2. Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers:

    W01-M58-6971, W01M586971, WO1-M58-6971, WO1 M58 6971, WO1M586971, W01 M58 6971


    3. Rubber Bellows only:

    W01-358-1023, W01 358 1023, W013581023, WO1-358-1023, WO1 358 1023, WO13581023


    Features of Rubber Airbags:


    1. Long service life. The self-sealing type has excellent durability due to less rubber deformation during expansion and contraction.
    2. Maintenance is very simple. There is no friction and sliding part, so no lubricating oil is required.
    3. The installation height can be reduced. Compared with other springs, the installation height can be reduced, effectively increasing the stroke.
    4. The spring parameters with elasticity and softness can be obtained, with large load and elasticity and excellent vibration resistance.
    5. The output of the load-bearing capacity is variable, and the load-bearing capacity can be changed within a wide range by changing the internal pressure.
    6. The height can be controlled. If used in conjunction with the height adjustment valve, a constant height can be maintained for different loads.
    7. It has a damping effect. If used in conjunction with the auxiliary air chamber and the throttle valve, excellent.

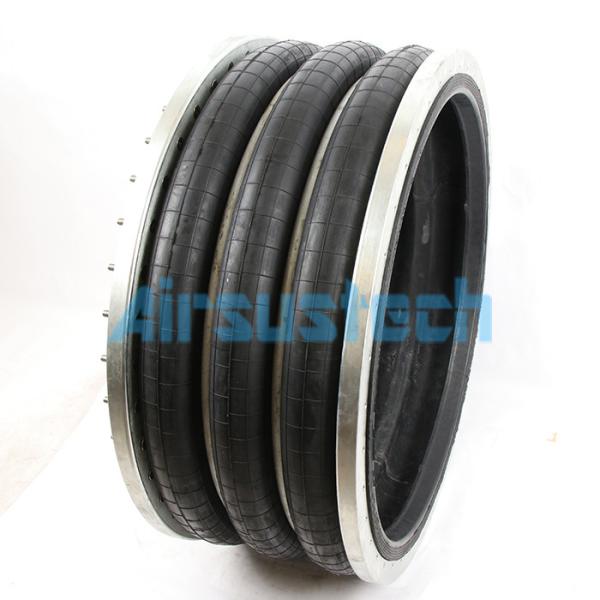

    3H9603 Real Pictures:
