AIRSUSTECH 8×1 Air Springs Suspension Cross Contitech FS 138-8 DS
Rubber Air Shocks
Product Description:
The AIRSUSTECH Air springs are highly durable, precisely engineered
and cost-effective for use in a wide variety of actuation and
vibration isolation applications. With time-tested designs,
fabric-reinforced Neoprene or Natural Rubber flex member
construction and corrosion-protected end retainers, air springs
provide superior quality and performance. We offers a variety of
air spring types to meet your actuation or isolation needs. The
Single, Double and Triple Convoluted Bellows, Rolling Lobe and
Sleeve Types are available in a wide range of sizes, with the End
Retainer Style required for your installation.
Specifications and Technical Parameters:
1B8×1T Specifications:
| Air Inlet | 1/2 BSP | Minimum Height | 47 mm |
| Screw Type | 4×M10 | Maximum Height | 120 mm |
| Distance Air Hole Betweeen Screw | 78 mm | Static Height | 90 mm |
| Screw Center Distance | 156 mm | Sroke Height | 73 mm |
| Screw Bolts Height | 25 mm | Installation Diameter | 240 mm |
| Top Cover Plate Diameter | 184 mm | Bellow MAX. Diameter | 230 mm |
| Bottom Cover Plate Diameter | 184 mm | Pressure Ability | 0-8 bar |
1B8×1T Technical Parameters:
| Pressure | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. [I] |
| Height H [mm] | 120 | 3.57 | 4.94 | 6.38 | 7.81 | 9.37 | 10.9 | 2 |
| 100 | 5.28 | 7.15 | 9.13 | 11.1 | 13.2 | 15.3 | 1.8 |
| 80 | 7.09 | 9.49 | 12 | 14.6 | 17.3 | 19.9 | 1.4 |
| 60 | 8.71 | 11.6 | 14.6 | 17.6 | 20.7 | 23.7 | 0.84 |
Alternative Items:
| Contitech | FS 138-8 DS, FS 138 8 DS, FS1388DS, FS 138-8DS FS 1388DS, FS 138 8DS, FS138-8 DS, FS138 8 DS |
| Firestone | W01-R58-4054, W01 R58 4054, W01R584054 WO1-R58-4054, WO1 R58 4054, WO1R584054 |
| Dunlop Springride | SP1537, SP 1537 |
Dunlop Pneuride | 8''×1 |
Norgren | M/31081 |
| Parker | 9109014 |
We Supply Other Single Convoluted Air Spring:
| OEM NO. | MIN.H. | MAX. H. | MAX. Diameter | Cover Plate OD. | Screw Type |
| 12×1 | 50 mm | 145 mm | 330 mm | 260 mm | M10 |
| 10×1 | 50 mm | 135 mm | 280 mm | 210 mm | M10 |
| 8×1 | 47 mm | 120 mm | 230 mm | 184 mm | M10 |
| 6×1 | 45 mm | 90 mm | 168 mm | 153 mm | M10 |
| 41/2×1 | 45 mm | 90 mm | 125 mm | 110 mm | M6 |
Advantages:
1. Improve the ride comfort of the vehicle.
2. Improve the stability of vehicle driving control.
3. Enhance the vehicle driving power and braking force on bumpy
road.
4. The body height remains the same, will not increase or decrease
with the load, reduce or increase.
5. Prolong the service life of tires and brake discs.
6. Reduce electrical, air conditioning, exhaust system, bridge,
body and chassis maintenance costs.
7. Prolong the service life of the vehicle and increase the
depreciation value.

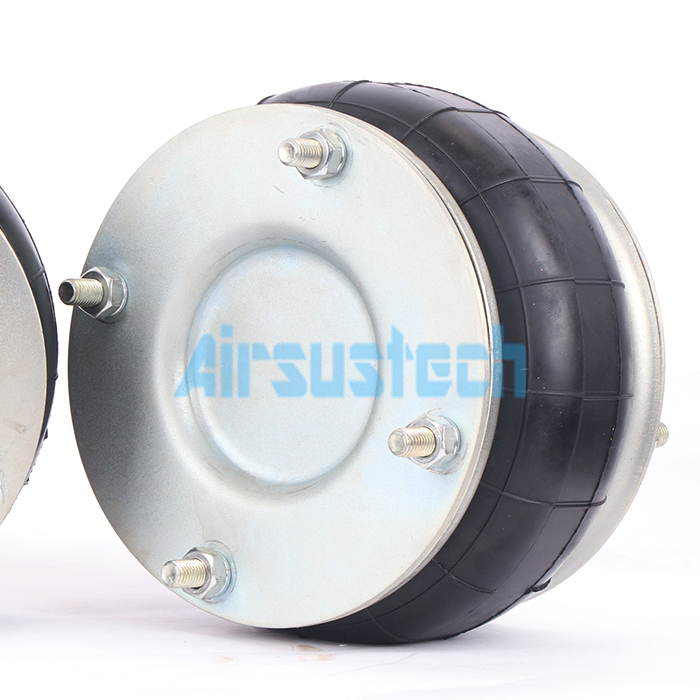

The Real Photos of 1B8×1T:
