    Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption

    Ask Lasest Price
    Brand Name : AIRSUSTECH Air Springs
    Model Number : 1B8×1T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption

    Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption


    Product Description:

    AIRSUSTECH actuators are playing a crucial role in modern machine design as pneumatic actuators in industrial applications.
    Due to their durability, ability to withstand abrasive environments, and exceptional performance, AIRSUSTECH actuators are becoming a popular replacement for traditional pneumatic and hydraulic cylinders.


    1B8×1T Specifications:


    Air Inlet1/2 BSPMinimum Height47 mm
    Screw Type4×M10Maximum Height120 mm
    Distance Air Hole Betweeen Screw78 mmStatic Height90 mm
    Screw Center Distance156 mmSroke Height73 mm
    Screw Bolts Height25 mmInstallation Diameter240 mm
    Top Cover Plate Diameter184 mmBellow MAX. Diameter230 mm
    Bottom Cover Plate Diameter184 mmOperationGas-filled

    Cross References:


    Firestone

    W01-R58-4054, W01 R58 4054, W01R584054

    WO1-R58-4054, WO1 R58 4054, WO1R584054

    Contitech

    FS 138-8 DS, FS 138 8 DS, FS1388DS, FS 138-8DS

    FS 1388DS, FS 138 8DS, FS138-8 DS, FS138 8 DS

    Dunlop Pneuride

    8''×1

    Dunlop Springride

    SP1537, SP 1537

    Norgren

    M/31081

    Parker

    9109014


    We Supply Other Single Convoluted Air Springs:


    OEM NO.MIN.H.MAX. H.MAX. DiameterCover Plate OD.Screw Type
    12×150 mm145 mm330 mm260 mmM10
    10×150 mm135 mm280 mm210 mmM10
    8×147 mm120 mm230 mm184 mmM10
    6×145 mm90 mm168 mm153 mmM10
    41/2×145 mm90 mm125 mm110 mmM6

    Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AIRSUSTECH 1B8×1T Bellows Style Industrial Air Spring number or any other model you need. We can offer competitive price, and delivery time.
    WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

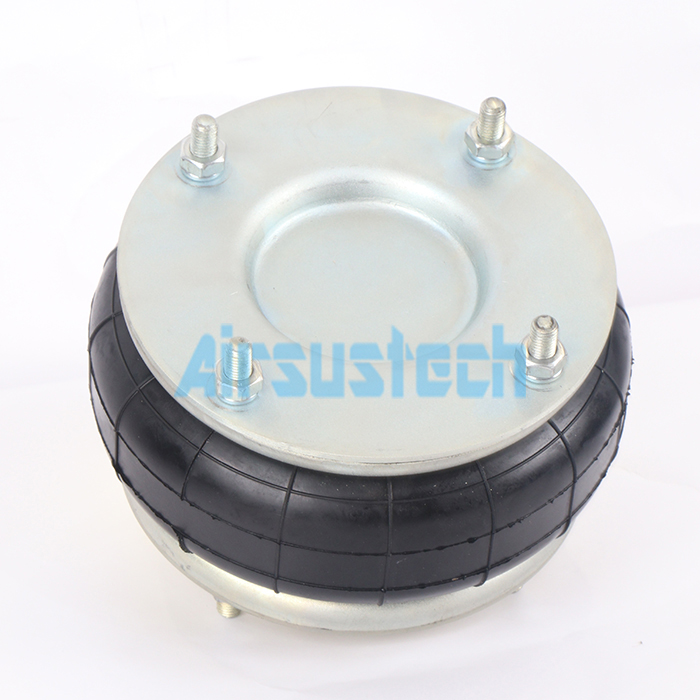

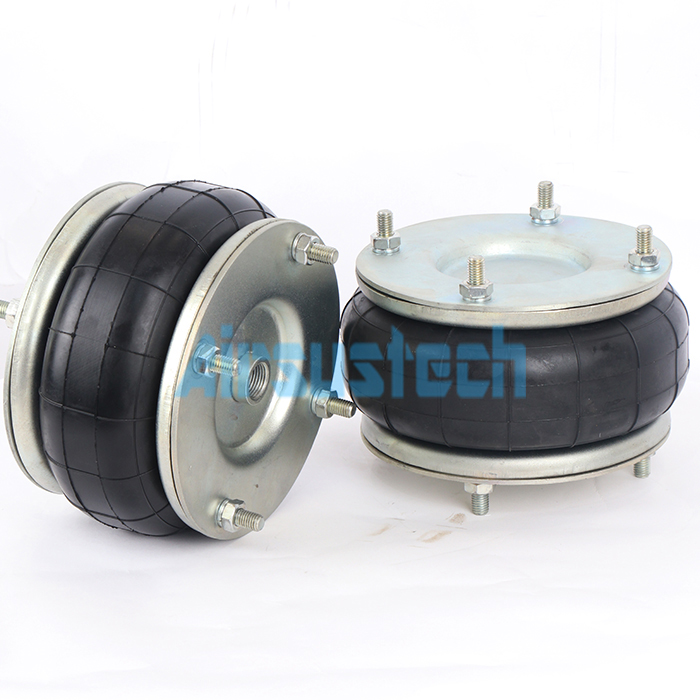

    The Real Pictures of 1B8×1T:


    Quality Firestone W01-R58-4054 Industrial Bellows Actuator 4×M10 Studs Air Shock Absorption for sale
