Parker 9109011 Air Bags Suspension Contitech FD 138-18 DS Air
Actuator Max. H. 225MM
Product Description:
Air springs are extremely durable, precisely engineered, and
cost-effective for a variety of actuation and vibration isolation
applications. With their proven design, fabric-reinforced neoprene
or natural rubber flex member construction, and corrosion-resistant
end retainers, air springs offer superior quality and performance.
As isolators, air springs effectively reduce the harmful effects of
vibration. They can simultaneously isolate vibration and adjust
load height, allowing for consistent vibration isolation at varying
loads.
Specifications and Technical Parameters:
2B8×2T Specifications:
| Air Inlet | 1/2 BSP | Minimum Height | 72 mm |
| Screw Type | 4×M10 | Maximum Height | 225 mm |
| Distance Air Hole Betweeen Screw | 78 mm | Static Height | 150 mm |
| Screw Center Distance | 156 mm | Sroke Height | 153 mm |
| Screw Bolts Height | 25 mm | Installation Diameter | 240 mm |
| Top Cover Plate Diameter | 184 mm | Bellow MAX. Diameter | 230 mm |
| Bottom Cover Plate Diameter | 184 mm | Pressure Ability | 0-8 bar |
2B8×2T Technical Parameters:
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. [I] |
| Force (Load) [kN] | 3.9 | 5.3 | 6.7 | 8.2 | 9.7 | 11.3 | 4.1 |
| Spring rate [N/mm] | 7.6 | 9.7 | 118.5 | 140 | 161 | 181.5 |
| Natural frequency [Hz] | 2.2 | 2.2 | 2.1 | 2.1 | 2.1 | 2.0 |
Cross References:
Parker
9109011
Contitech
FD 138-18 DS, FD 138 18 DS, FD13818DS, FD 138-18DS, FD 13818DS, FD 138 18DS, FD138-18 DS, FD138 18 DS
Firestone
W01-R58-4055, W01 R58 4055, W01R584055, WO1-R58-4055, WO1 R58 4055, WO1R584055
Dunlop Springride
SP1490, SP 1490
Dunlop Pneuride
8''×2
Norgren
M/31082
We Supply Other Single Convoluted Air Spring:
| OEM NO. | MIN.H. | MAX. H. | MAX. Diameter | Cover Plate OD. | Screw Type |
| 12×2 | 74 mm | 240 mm | 330 mm | 260 mm | M10 |
| 10×2 | 70 mm | 240 mm | 280 mm | 210 mm | M10 |
| 91/4×2 | 70 mm | 240 mm | 260 mm | 197 mm | M10 |
| 8×2 | 72 mm | 225 mm | 230 mm | 184 mm | M10 |
| 6×2 | 73 mm | 170 mm | 168 mm | 153 mm | M10 |
| 41/2×1 | 65 mm | 145 mm | 125 mm | 110 mm | M6 |
Please send us your request by e-mail, so we can send you our offer
with competitive prices and delivery time for AIRSUSTECH Bellows
Style Industrial Air Spring number or any other model you need. We
can offer competitive price, and delivery time.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

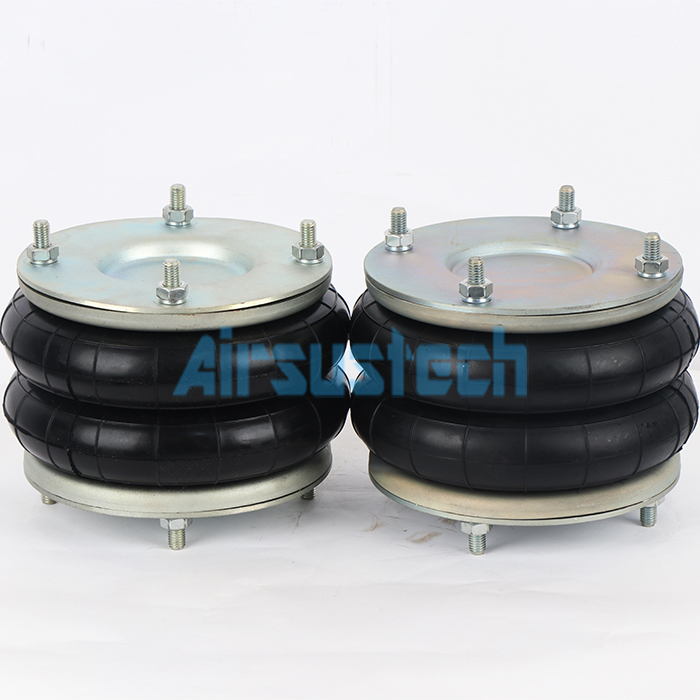

The Real Photos of 2B8×2T:
