Contitech FD 138-18 DS Air Spring Suspension System Double
Convoluted Bellows Type
Product Description:
Whether you're hauling heavy loads or simply looking for a more
comfortable ride, the AIRSUSTECH Industrial Air Springs are the
perfect choice. With their durable construction, wide operating
temperature range, and impressive stroke length, these air
vibration bags are sure to provide the performance and reliability
you need.
Specifications and Technical Parameters:
2B8×2T Specifications:
| Air Inlet | 1/2 BSP | Minimum Height | 72 mm |
| Screw Type | 4×M10 | Maximum Height | 225 mm |
| Distance Air Hole Betweeen Screw | 78 mm | Static Height | 150 mm |
| Screw Center Distance | 156 mm | Sroke Height | 153 mm |
| Screw Bolts Height | 25 mm | Installation Diameter | 240 mm |
| Top Cover Plate Diameter | 184 mm | Bellow MAX. Diameter | 230 mm |
| Bottom Cover Plate Diameter | 184 mm | Pressure Ability | 0-8 bar |
2B8×2T Technical Parameters:
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. [I] |
| Force (Load) [kN] | 3.9 | 5.3 | 6.7 | 8.2 | 9.7 | 11.3 | 4.1 |
| Spring rate [N/mm] | 7.6 | 9.7 | 118.5 | 140 | 161 | 181.5 |
| Natural frequency [Hz] | 2.2 | 2.2 | 2.1 | 2.1 | 2.1 | 2.0 |
Alternative Items:
Contitech | FD 138-18 DS, FD 138 18 DS, FD13818DS, FD 138-18DS FD 13818DS, FD 138 18DS, FD138-18 DS, FD138 18 DS |
| Firestone | W01-R58-4055, W01 R58 4055, W01R584055 WO1-R58-4055, WO1 R58 4055, WO1R584055 |
| Dunlop Springride | SP1490, SP 1490 |
| Dunlop Pneuride | 8''×2 |
Norgren | M/31082 |
| Parker | 9109011 |
We Supply Other Single Convoluted Air Spring:
| OEM NO. | MIN.H. | MAX. H. | MAX. Diameter | Cover Plate OD. | Screw Type |
| 12×2 | 74 mm | 240 mm | 330 mm | 260 mm | M10 |
| 10×2 | 70 mm | 240 mm | 280 mm | 210 mm | M10 |
| 91/4×2 | 70 mm | 240 mm | 260 mm | 197 mm | M10 |
| 8×2 | 72 mm | 225 mm | 230 mm | 184 mm | M10 |
| 6×2 | 73 mm | 170 mm | 168 mm | 153 mm | M10 |
| 41/2×1 | 65 mm | 145 mm | 125 mm | 110 mm | M6 |
Advantages:
1. Excellent materials
2. Effective shock
3. In situ installation
4. Comfortable and stable
5. Long life
6. Slove the abnormal noise
FAQ:
Q: Can I use my own logo and design on products?
A: YES,OEM is welcomed.
Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
Q: How do you make our business a long-term and good relationship?
A: 1. We maintain good quality and competitive prices to ensure our
customers benefit;
2. We respect every customer as our friend and we sincerely do
business and make friends with them no matter where they come from.

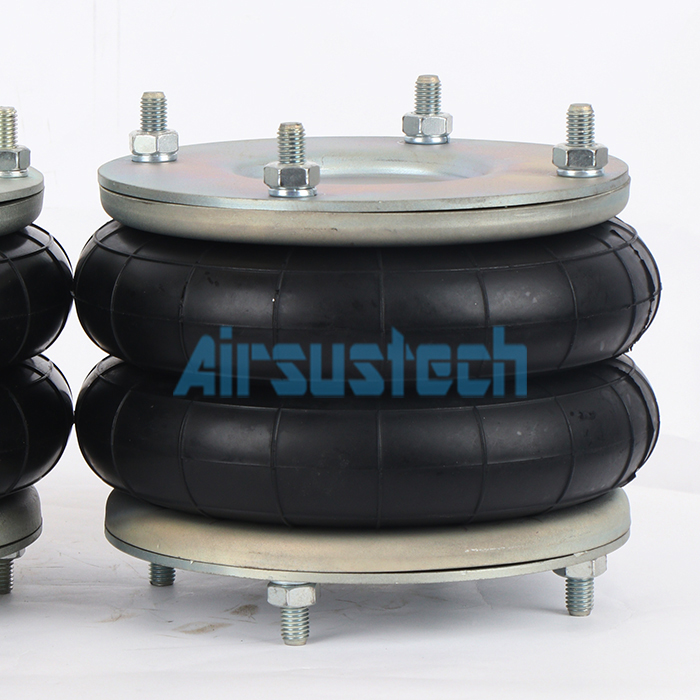

The Real Photos of 2B8×2T:
