Norgren M/31082 Air Shock Absorber Firestone W01-R58-4055 Air Bags
Screw Height 25MM
Product Description:
Expertly designed to provide superior performance and versatility
for a wide range of applications. At the heart of its robust
construction is a crimped assembly that ensures enhanced strength
and durability. This is complemented by a convoluted bellow,
meticulously crafted from Natural Rubber. This material is renowned
for its exceptional dynamic capabilities and excellent universal
properties, making our actuator not only powerful but also
adaptable to a variety of operating conditions.
Specifications and Technical Parameters:
2B8×2T Specifications:
| Air Inlet | 1/2 BSP | Minimum Height | 72 mm |
| Screw Type | 4×M10 | Maximum Height | 225 mm |
| Distance Air Hole Betweeen Screw | 78 mm | Static Height | 150 mm |
| Screw Center Distance | 156 mm | Sroke Height | 153 mm |
| Screw Bolts Height | 25 mm | Installation Diameter | 240 mm |
| Top Cover Plate Diameter | 184 mm | Bellow MAX. Diameter | 230 mm |
| Bottom Cover Plate Diameter | 184 mm | Pressure Ability | 0-8 bar |
2B8×2T Technical Parameters:
| Pressure | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. [I] |
| Height H [mm] | 220 | 2.9 | 4.03 | 5.16 | 6.41 | 7.65 | 8.98 | 4.3 |
| 200 | 3.86 | 5.27 | 6.68 | 8.21 | 9.73 | 11.3 | 4.1 |
| 150 | 5.9 | 8 | 10.1 | 12.4 | 14.7 | 16.9 | 3.2 |
| 100 | 8.2 | 10.9 | 13.7 | 16.6 | 19.4 | 22.4 | 2 |
Cross References:
Norgren
M/31082
Contitech
FD 138-18 DS, FD 138 18 DS, FD13818DS, FD 138-18DS, FD 13818DS, FD 138 18DS, FD138-18 DS, FD138 18 DS
Firestone
W01-R58-4055, W01 R58 4055, W01R584055, WO1-R58-4055, WO1 R58 4055, WO1R584055
Dunlop Springride
SP1490, SP 1490
Dunlop Pneuride
8''×2
Parker
9109011
Advantages:
Rubber actuators, compared with traditional products (rigid
actuators, spring...) offer numerous advantages such as
- Flexibility (no angle or alignment problem),
- Compactness
- Power / price ratio
- No maintenance or lubrication required
- Durability
- Reliability
- Resistance to aggressive or hot conditions
FAQ:
Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in
good condition.
(3) Track and receive feedback from our customers.
Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours.
Q: Where are the Suspension Air Springs manufactured?
A: The Suspension Air Springs are manufactured in Guangzhou, China.

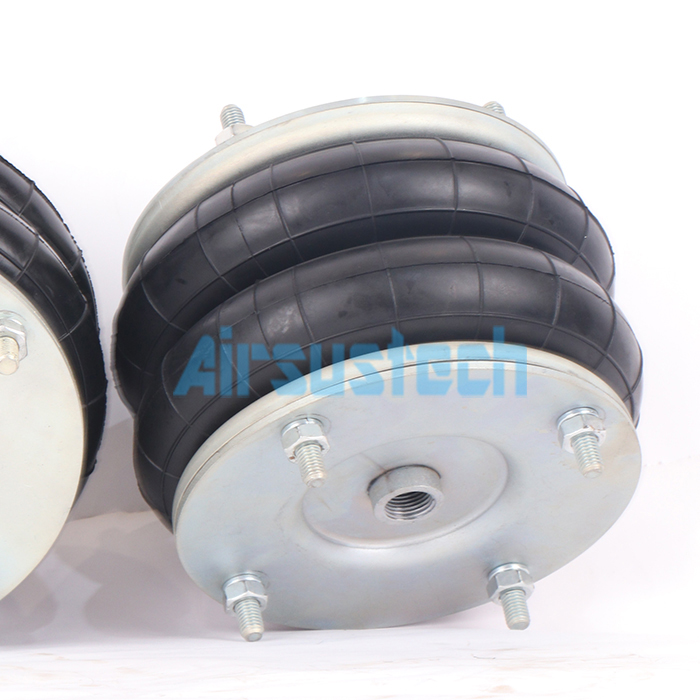

The Real Photos of 2B8×2T:
