    Industrial Air Bags 3B2300 Triple Convoluted Air Shocks Bellows Natural OD. 125MM

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B2300
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Industrial Air Bags 3B2300 Triple Convoluted Air Shocks Bellows Natural OD. 125MM

    Industrial Air Bags 3B2300 Triple Convoluted Air Shocks Bellows Natural OD. 125MM

    Product Description:

    AIRSUSTECH actuators are playing a crucial role in modern machine design as pneumatic actuators in industrial applications.
    Due to their durability, ability to withstand abrasive environments, and exceptional performance, AIRSUSTECH actuators are becoming a popular replacement for traditional pneumatic and hydraulic cylinders.


    3B2300 Specifications


    Air Inlet1/2-14 NPT
    Top Cover Plate Width113 MM
    Bottom Cover Plate Width113 MM
    Design Height187 MM
    Base Hole3/8-16 UNC
    Rubber Bellows Diameter152 MM
    Screw Center Distance44.5 MM
    Distance Gas Hole Between Nuts22 MM
    Top Plate Hole Stud QytThree
    Bottom Plate Hole Stud QytOne

    Other Models of Air Springs:


    In addition to the 3B2300 air spring, we also have other similar triple convoluted air springs.


    3B2200 Specifications:


    Air Inlet1/4 NPT
    Top Cover Plate Width97 MM
    Bottom Cover Plate Width97 MM
    Design Height180 MM
    Base Hole3/8-16 UNC
    Rubber Bellows Diameter100 MM
    Screw Center Distance44.5 MM
    Top Plate Hole Stud QytThree
    Bottom Plate Hole Stud QytOne

    3B2400 Specifications:


    Air Inlet1/2-14 NPT
    Top Cover Plate Width113 MM
    Bottom Cover Plate Width113 MM
    Design Height213 MM
    Base Hole3/8-16 UNC
    Rubber Bellows Diameter144.5 MM
    Screw Center Distance44.5 MM
    Distance Gas Hole Between Nuts22 MM
    Top Plate Hole Stud QytThree
    Bottom Plate Hole Stud QytOne

    About Us:


    We always focus on the development of automotive components, and provide you with quality products and competitive prices.
    If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know!
    We are looking forward to establishing business with you.

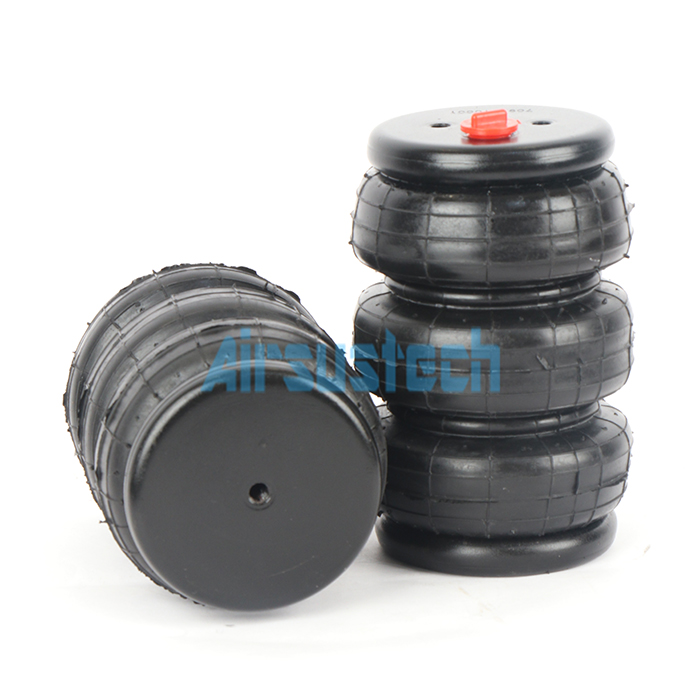

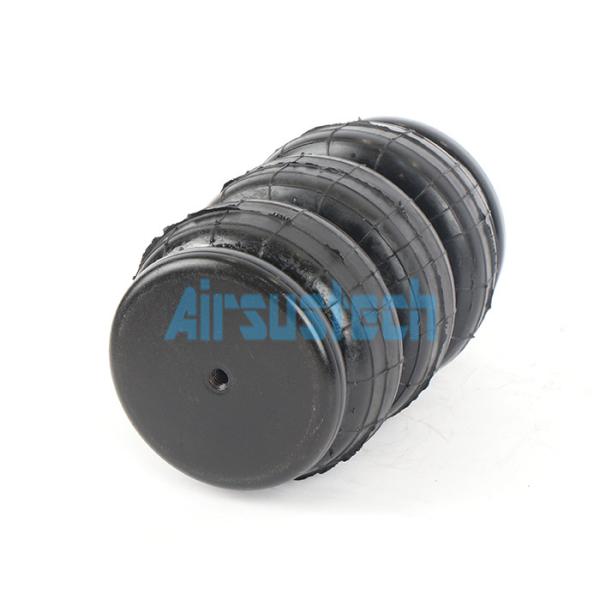

    The Real Pictures of 3B2300:
