    Rubber Air Spring 3B2300 Top/Bottom Cover Plate Diameter 113MM Air Bag Assembly

    Ask Lasest Price
    Brand Name : AIRSUSTECH Air Springs
    Model Number : 3B2300
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Rubber Air Spring 3B2300 Top/Bottom Cover Plate Diameter 113MM Air Bag Assembly

    Rubber Air Spring 3B2300 Top/Bottom Cover Plate Diameter 113MM Air Bag Assembly

    Product Description:

    One common use for AIRSUSTECH Air Bags is with compressors in the transportation industry. Whether you're hauling heavy loads or transporting equipment, these air bags can help ensure a smooth ride and prevent damage to your vehicle or cargo. With their durable construction and reliable performance, they are a great choice for anyone looking to improve their transportation operations.


    3B2300 Specifications:


    • Air Fitting: 1/2-14 NPT
    • Base Hole: 3/8-16 UNC
    • Top Cover Plate Width: 113 MM
    • Bottom Cover Plate Width: 113 MM
    • Natural Height: 187 MM
    • Rubber Bellows Diameter: 152 MM
    • Screw Center Distance: 44.5 MM
    • Distance Gas Hole Between Nut: 22 MM
    • Top Plate Hole Stud Qyt: Three
    • Bottom Plate Hole Stud Qyt: One

    Other Models of Air Springs:


    In addition to the 3B2300 air spring, we also have other similar triple convoluted air springs.


    3B2200 Specifications:


    Air Inlet1/4 NPT
    Top Cover Plate Width97 MM
    Bottom Cover Plate Width97 MM
    Design Height180 MM
    Base Hole3/8-16 UNC
    Rubber Bellows Diameter100 MM
    Screw Center Distance44.5 MM
    Top Plate Hole Stud QytThree
    Bottom Plate Hole Stud QytOne

    3B2400 Specifications:


    Air Inlet1/2-14 NPT
    Top Cover Plate Width113 MM
    Bottom Cover Plate Width113 MM
    Design Height213 MM
    Base Hole3/8-16 UNC
    Rubber Bellows Diameter144.5 MM
    Screw Center Distance44.5 MM
    Distance Gas Hole Between Nuts22 MM
    Top Plate Hole Stud QytThree
    Bottom Plate Hole Stud QytOne

    Support and Services:


    1. Our Industrial Air Springs product comes with comprehensive technical support and services to ensure that your experience with our product is seamless. Our team of experts is always available to assist with any technical issues that you may encounter with your air springs.
    2. We also provide installation services to ensure that your air springs are installed correctly and function optimally. Additionally, we offer maintenance and repair services to keep your air springs in top condition and to extend their lifespan.
    3. Our technical support and services are designed to help you get the most out of our product and to ensure that you have a positive experience with our brand.

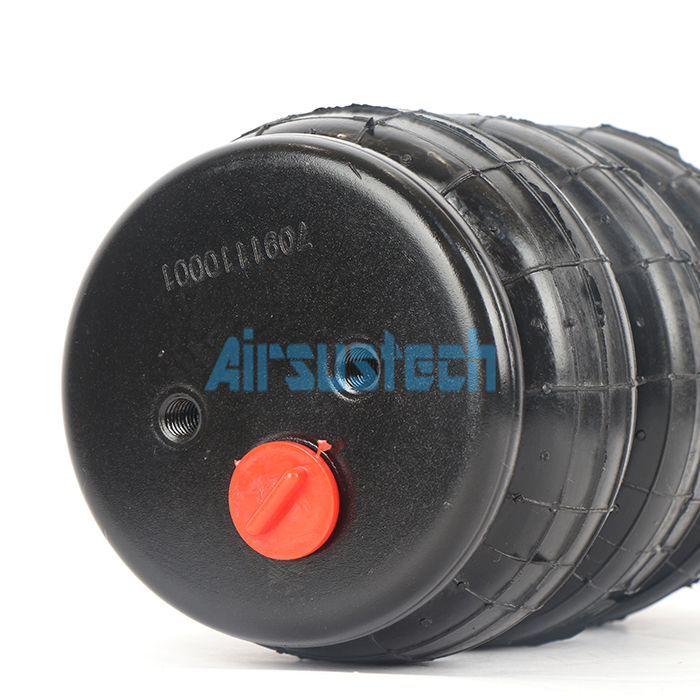

    The Real Pictures of 3B2300:



    Quality Rubber Air Spring 3B2300 Top/Bottom Cover Plate Diameter 113MM Air Bag Assembly for sale
