    3B2300 Air Spring Suspension System Base Hole 3/8-16 UNC Air Stroke Actuator

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B2300
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    3B2300 Air Spring Suspension System Base Hole 3/8-16 UNC Air Stroke Actuator

    3B2300 Air Spring Suspension System Base Hole 3/8-16 UNC Air Stroke Actuator

    Product Description:

    AIRSUSTECH actuators have long been used in the industrial market as pneumatic actuators integrated into new and innovative machine designs and as replacement actuators for traditional pneumatic or hydraulic cylinders. Their advantages over traditional cylinders are that they are durable, operate well in corrosive and abrasive environments, are easily tolerant of misalignment, and have a high ratio of stroke to collapsed height.


    3B2300 Specifications


    Air Inlet1/2-14 NPT
    Top Cover Plate Width113 MM
    Bottom Cover Plate Width113 MM
    Design Height187 MM
    Base Hole3/8-16 UNC
    Rubber Bellows Diameter152 MM
    Screw Center Distance44.5 MM
    Distance Gas Hole Between Nuts22 MM
    Top Plate Hole Stud QytThree
    Bottom Plate Hole Stud QytOne

    Applictaions:


    • Pulp and paper industry
    • Lumber mills
    • Lift tables
    • Tooling and machining system
    • Energy production
    • Tooling robotics and automation
    • Component assembly
    • Automotive assembly
    • Medical equipment
    • Conveyor systems
    • Packaging

    AIRSUSTECH Advantages:


    • Affordable:
    • Wide Range
    • Durability
    • No Internal Rod, Piston, or Sliding Seals
    • No Friction
    • Flexible
    • Angular Capabilities
    • Side Loading Capabilities
    • Compact Starting Height

    Please send us your request by e-mail, so we can send you our offer with competitive prices and delivery time for AIRSUSTECH 3B2300 Bellows Style Industrial Air Spring number or any other model you need. We can offer competitive price, and delivery time.
    WE SELL ONLY NEW AND ORIGINAL PRODUCTS!

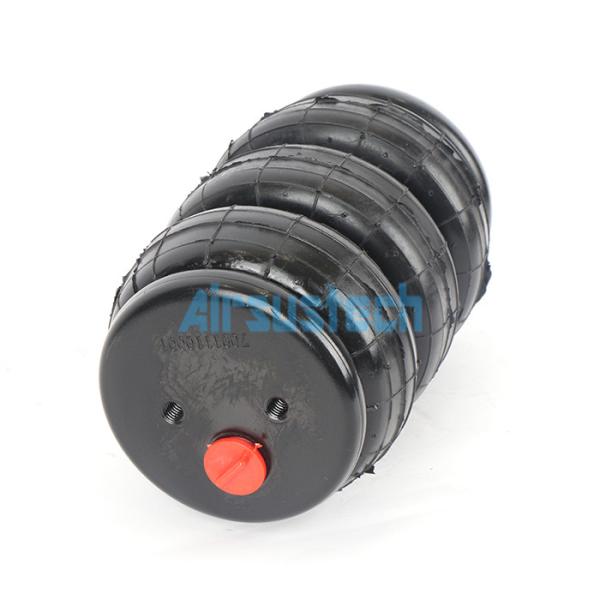

    The Real Pictures of 3B2300:
