3B12-304 Suspension Air Bags Goodyear Air Actuator 578933100 Triple
Convoluted Bellows
Product Description:
Rubber lining is a retractable inner mold with different shapes
formed by the polymer properties of vulcanized rubber and
high-strength fiber cloth. It is a product made of vulcanized
rubber and fibers. It is compressive, elastic and airtight. After
being filled with compressed air, the air bag will expand to meet
the design requirements of its cross-section. Under the premise of
ensuring quality, if it is used improperly, the service life of the
air spring will be greatly shortened. Due to its low quality, good
comfort and fatigue resistance, the rubber air spring has the
advantages of long service life, vibration reduction and noise
reduction. Widely used in industrial machinery, instrumentation and
other equipment.
Specifications: 3B12-304
Height
Compressed Height: 117 MM
Max Expanded Height: 460 MM
Stroke Height: 343 MM
Rubber Bellows
Bellow MAX. OD.: 330 MM
Bellows Type: Triple Convolutions
Material: Rubber+Steel
Cover Plate
Top Cover Plate Diameter: 231 MM
Bottom Cover Plate Diameter:231 MM
Screw Center Diatance:157.5 MM
Cross References:
| Goodyear | 3B12-304, 3B 12 304, 3B12304, 3B12 304, 3B 12304 578933100 |
| Contitech | FT 330-29 430, FT 330 29 430, FT 33029430 FT330-29 430, FT330-29430, FT33029430 |
| Firestone | W01-358-8006, W01 358 8006, W013588006 WO1-358-8006, WO1 358 8006, WO13588006 |
| Triangle | 6634, 4430 |
| Leland | Sc2132 |
| Arvin Meritor | 200320 |
Applications:
AIRSUSTECH air actuators can be used in nearly all branches of
industry, such as:
- vehicle applications
- automation technology
- conveyor systems
- agricultural machinery
- food industry
- paper and textile equipment
- pantograph drives
- sawmill machinery
- punch and forming presses
Features of 3B12-304:
3B12-304 this kind of air spring is produced by AIRSUSTEHC, our air springs
bring new high productivity and long life to your trucks, trailers,
buses and industrial equipment and lifting equipment. Bellows air
springs provide a constant level of traction and provide
trouble-free service.
The 3B12-304 air spring rubber airbag can protect the cargo and provide
horizontal transportation and long-term service. Rubber airbag air
springs provide quiet, cushioned driving, and because of less
vibration, they have a longer service life than steel springs. The
driver is more comfortable when riding, less fatigued, and stay
alert. The AIRSUSTECH Air Spring enables industrial vibration equipment to reduce
vibration and noise pollution. In addition, 3B12-304 goods have better shock and vibration resistance.

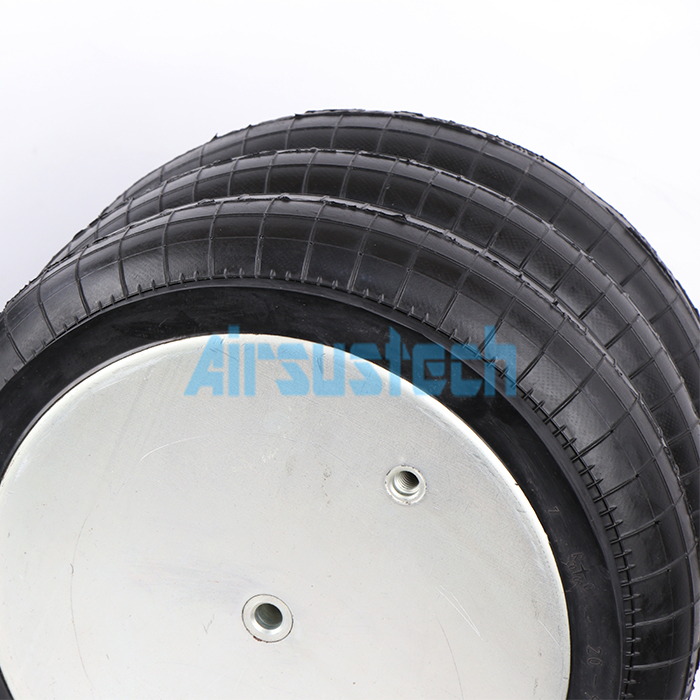

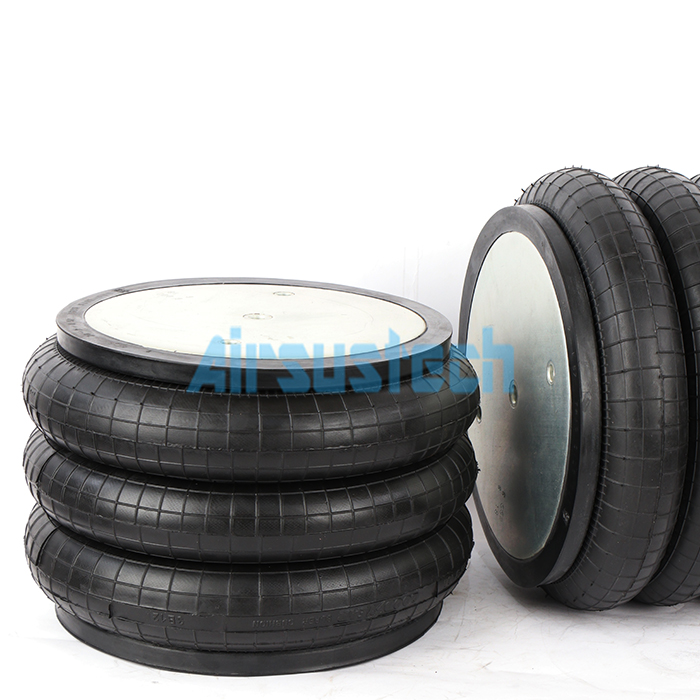

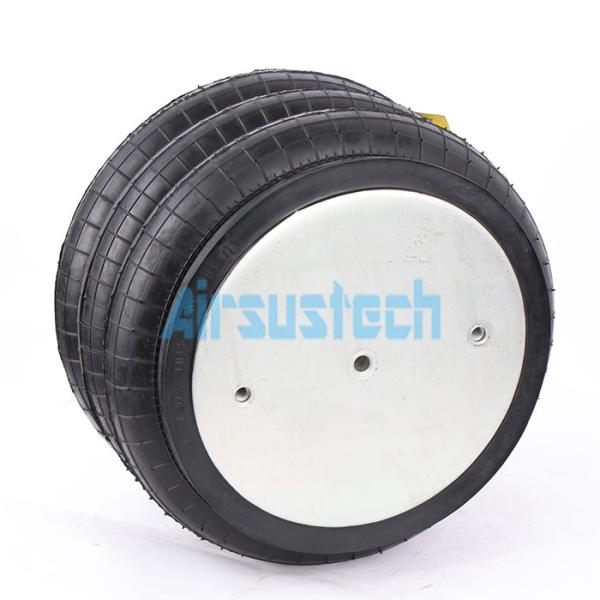

The Related Pictures of 3B12-304:
