    Firestone W01-358-8006 Industrial Bellows Air Actuator Triple Convoluted Air Bags

    Ask Lasest Price
    Brand Name : AIRSUSTECH Air Springs
    Model Number : 3B12-304
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Firestone W01-358-8006 Industrial Bellows Air Actuator Triple Convoluted Air Bags

    Firestone W01-358-8006 Industrial Bellows Air Actuator Triple Convoluted Air Bags

    Product Description:

    The AIRSUSTECH manufactures efficient, strong, and premium 3B12-304 air springs for all your vehicle steering needs. Not only is it efficient in performance, it is also extremely durable, providing long-lasting quality without compromising its effectiveness. These air springs are made of high-quality materials, including metal, which ensures maximum stability, durability, and sustainability for demanding use, and is also equipped with the latest features for consistent, optimal performance. These products are certified and tested by regulatory boards to ensure safe use and superior quality.


    When purchasing our products, you can also enjoy a host of after-sales services, including low-cost maintenance, installation guidance, and more. The AIRSUSTECH air springs here are environmentally friendly, with features such as anti-corrosion and anti-rust, and have a longer service life.


    Specifications: 3B12-304


    Minimum Height: 117 mm

    Maximum Height: 460 mm

    Stroke Height: 343 mm

    Bellow Maximum OD.: 330 mm

    Top Cover Plate Diameter: 231 mm

    Bottom Cover Plate Diameter: 231 mm

    Screw Center Distance: 157.5 mm

    Convolutions: Triple


    Cross References:


    Firestone

    W01-358-8006, W01 358 8006, W013588006

    WO1-358-8006, WO1 358 8006, WO13588006

    Contitech

    FT 330-29 430, FT 330 29 430, FT 33029430

    FT330-29 430, FT330-29430, FT33029430

    Goodyear

    3B12-304, 3B 12 304, 3B12304, 3B12 304, 3B 12304

    578933100

    Triangle6634, 4430
    LelandSc2132
    Arvin Meritor200320

    Advantageous Features of Air Suspension:


    1. shock absorption effect is better, can effectively improve the comfort of the whole car

    2. Effectively reduce fuel consumption, improve economic efficiency

    3. Protect the vehicle's own parts, extend the life of the vehicle

    4. Facilitate dumping transportation, effectively improve the transportation efficiency

    5. Facilitate the loading and unloading of goods on platforms of different heights.

    6. Extend the service life of tires and help road surface protection

    7. Good safety performance


    About Us:


    We always focus on the development of automotive parts and provide you with quality products and competitive prices.
    If you are interested in our products, we are happy to provide you with the best quotation. If you have any questions, please let me know.
    We look forward to establishing business with you.

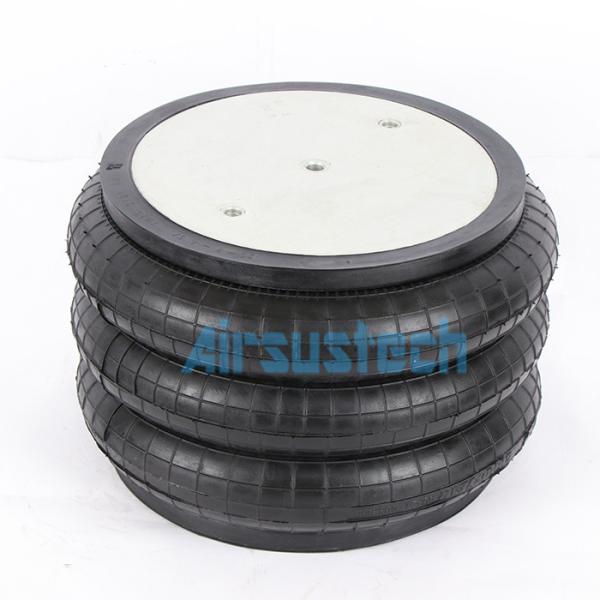

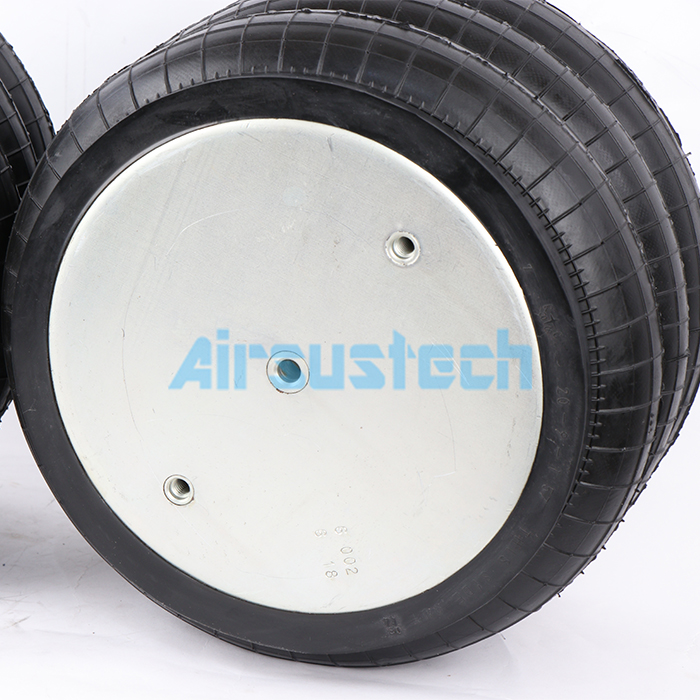

    The Real Pictures of 3B12-304:
