Brand Name : | AIRSUSTECH Air Springs |
Model Number : | 3B12-304 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
The AIRSUSTEHC Air Springs are designed with advanced technology and are engineered to provide superior performance in a wide range of applications. Our air shocks are designed to provide superior load capacity and durability, while still providing a comfortable and safe ride. With our air shocks, you can rest assured that your vehicle will have a smoother and safer ride, no matter what the conditions are.
Specifications: 3B12-304
Height
Compressed Height: 117 MM
Max Expanded Height: 460 MM
Stroke Height: 343 MM
Rubber Bellows
Bellow MAX. OD.: 330 MM
Bellows Type: Triple Convolutions
Material: Rubber+Steel
Cover Plate
Top Cover Plate Diameter: 231 MM
Bottom Cover Plate Diameter:231 MM
Screw Center Diatance:157.5 MM
Cross References:
Triangle | 6634, 4430 |
Goodyear | 3B12-304, 3B 12 304, 3B12304, 3B12 304, 3B 12304 578933100 |
Contitech | FT 330-29 430, FT 330 29 430, FT 33029430 FT330-29 430, FT330-29430, FT33029430 |
Firestone | W01-358-8006, W01 358 8006, W013588006 WO1-358-8006, WO1 358 8006, WO13588006 |
Leland | Sc2132 |
Arvin Meritor | 200320 |
Advantages of 3B12-304 Air Springs:
FAQ:
Q1: Can you produce the product according to the samples? A1: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
Q2: Can you print my logo on inner box and outer box? A2: Yes. We can do it, but it has MOQ. |
Q3: How to guarantee your after sales service? A3: (1) Strict inspection during production. (2) Recheck the products before shipment to ensure our packaging in good condition. (3) Track and receive feedback from our customers. |
Q4: What are the packaging details for the Suspension Air Springs? A4: The Suspension Air Springs are packaged in strong carton boxes or as per the customers' requirements. |

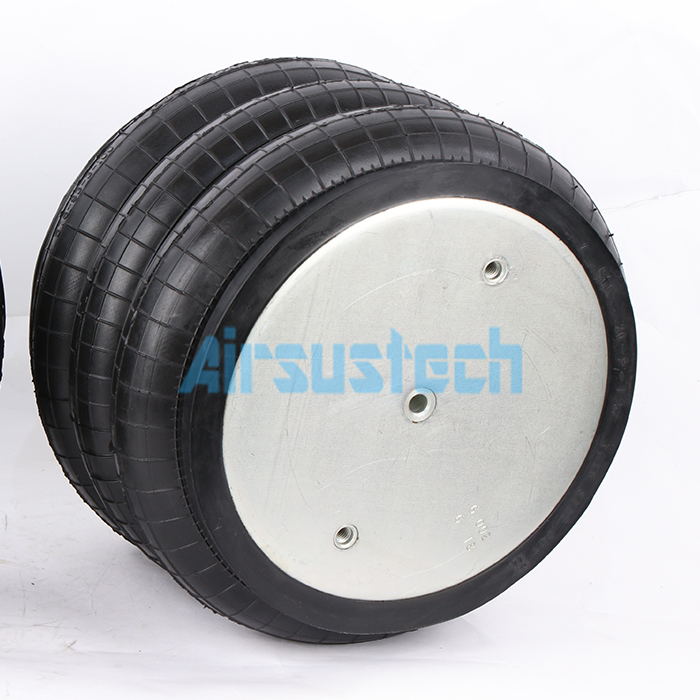

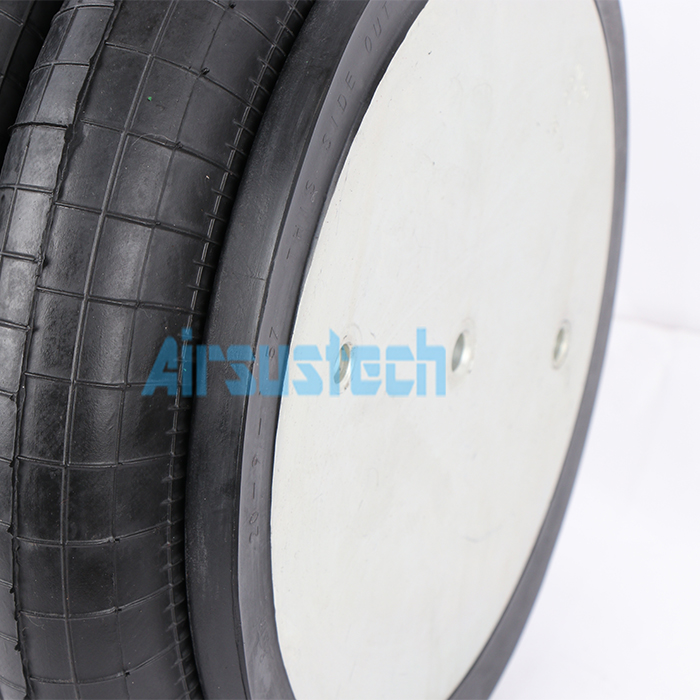

The Related Pictures of 3B12-304:
![]() |
