Taurus KF218-6910 Air Shock Absorbers Goodyear 2B9-200 Air Bags 1/4
NPTF Air Inlet
Product Description:
The AIRSUSTECH Air Springs are highly durable, precisely engineered
and cost-effective for use in a wide variety of actuation and
vibration isolation applications. With time-tested designs,
fabric-reinforced Neoprene or Natural Rubber flex member
construction and corrosion-protected end retainers, air springs
provide superior quality and performance.
2B6910 Features:
Air Fitting
Operation: Gas-filled
Gas Hole: 1/4 NPTF
Height
MAX. Height: 260 mm
MIN. Height: 75 mm
Stroke Height: 185 mm
Cover Plate
Top Cover Plate Width: 160 mm
Bottom Cover Plate Width: 160 mm
Hole/Stud
Hole/Stud Qty: Two on One Plate
Screw Center Distance: 89 mm
Distance Gas Hole Between Nut: 44.5 mm
Bolts Type: 2X3/8-16UNC
Rubber Bellows
Natural Diameter: 224 mm
Bellow Max. Diameter: 251 mm
Double Convolutions
Cross References:
| Contitech | FD 200-19 320, FD 200 19 320 FD20019320, FD 20019 320 FD 200 19320, FD 20019320 | Leland | Sc2011 |
| Firestone | W01-358-6910, W01 358 6910 W013586910, WO1-358-6910 WO1 358 6910, WO13586910 | Dayton | 3546910 |
| Goodyear | 2B9-200/202/216
578423202 | Navistar | 554783C1 |
| Triangle | 6325/4320 | Hendrickson | S8768/458433 |
| Taurus | KF218-6910 | Ridewell | 1003586910C |
| Brake & Wheel | M3501 | SAF Holland | 57006910 |
| Dina | A812719/AZ812719 | Trailers De | 133128 |
| Tuthill | 1371 | Watson & Chalin | AS-0001/AS-0156G |
Product Core Competitiveness:
1. Imported rubber
It is smelted with advanced sol technology, which improves the acid
resistance, corrosion resistance and longer life of the product.
2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness,
anti-leakage, high density of skin, anti-burst.
3. Ensure in-situ installation
The shape and size are the same as the original, directly replace
the original air spring, no need to change, easy to install.
4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant,
long service life.
Applications:
- Pulp and paper industry
- Lumber mills
- Lift tables
- Tooling and machining system
- Energy production
- Tooling robotics and automation
- Component assembly
- Automotive assembly
- Medical equipment
- Conveyor systems
- Packaging

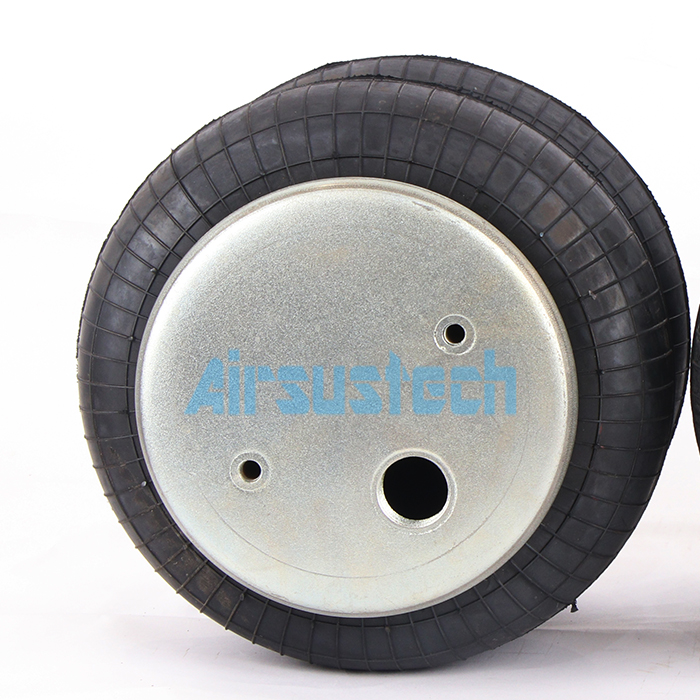

The Related Pictures of 2B6910:
