Brand Name : | AIRSUSTECH |
Model Number : | 2B6910 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
The AIRSUSTECH Air Springs are available in single, double and triple convolution types for virtually every conceivable heavy-duty vehicle suspension application. In addition, 2B6910 air spring is a carefully designed rubber/fabric bellows which contains a column of compressed air. The rubber bellows itself does not provide force or support load. This is done by the column of air.
Specifications and Detailed Technical Parameters
2B6910 Specifications
Air Hole | 1/4 NPTF |
Number of Ply Bellows | Double |
Minimum Usable Height | 75 MM |
Max Expanded Height | 260 MM |
Stroke Height | 224 MM |
Threaded Hole | 2X3/8-16UNC |
Top/Bottom Cover Plate Diameter | 185 MM |
Hole/Stud Qty | Two On One Plate |
Screw Center Distance | 89 MM |
Distance Gas Hole Between Nut | 44.5 MM |
Bellow Max. Diameter | 251 MM |
Bellow Natural Diameter | 224 MM |
Top/Bottom Plate Width | 160 MM |
2B6910 Technical Parameters
Dynamic Characteristics at 8.5 in. Design Height (Required for Airmount isolator design only) | ||||
Volume @ 100 PSIG=782 in3 | Natural Frequency | |||
Gage Pressure (PSIG) | Load (Ibs.) | Spring Rate (Ibs./in.) | CPM | HZ |
40 | 990 | 414 | 121 | 2.02 |
60 | 1,540 | 615 | 119 | 1.98 |
80 | 2,130 | 820 | 116 | 1.94 |
100 | 2,720 | 996 | 114 | 1.89 |
Cross References:
Firestone | W01-358-6910, W01 358 6910 W013586910, WO1-358-6910 WO1 358 6910, WO13586910 | Dayton | 3546910 |
Contitech | FD 200-19 320, FD 200 19 320 FD20019320, FD 20019 320 FD 200 19320, FD 20019320 | Leland | Sc2011 |
Goodyear | 2B9-200/202/216 | Navistar | 554783C1 |
Triangle | 6325/4320 | Hendrickson | S8768/458433 |
Taurus | KF218-6910 | Ridewell | 1003586910C |
Brake & Wheel | M3501 | SAF Holland | 57006910 |
Dina | A812719/AZ812719 | Trailers De | 133128 |
Tuthill | 1371 | Watson & Chalin | AS-0001/AS-0156G |
Support and Services:
From Original Equipment Manufacturers (OEM) to aftermarket
applications, AIRSUSTECH offers a unique combination of product selection, engineering
excellence and technical support to meet even the toughest
application needs.
Global Manufacturing and Sales Facilities offer our customers:
• Highly Trained Distribution Network
• State-of-the Art Engineering Capabilities
• Custom Solution Development
• Customer Service Specialists
• Multiple Open Communication Channels

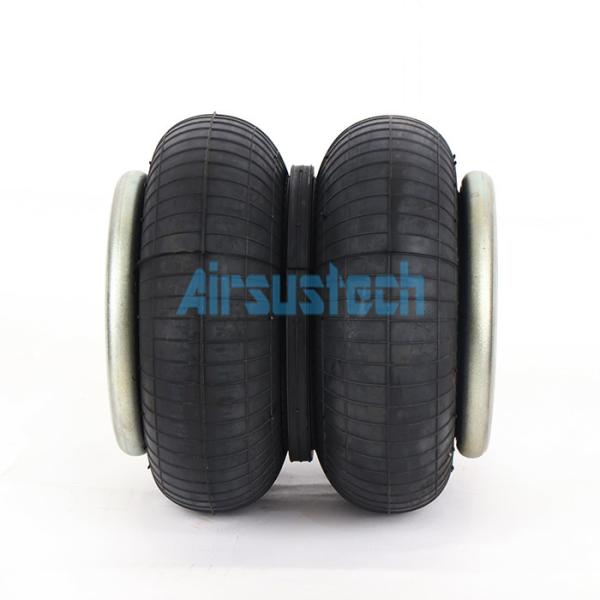

The Related Pictures of 2B6910:
![]() |
