    Triangle 6316/4363 Shock Absorption Air Springs Firestone W01-358-7180 1/4 NPTF Gas Hole

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6330
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

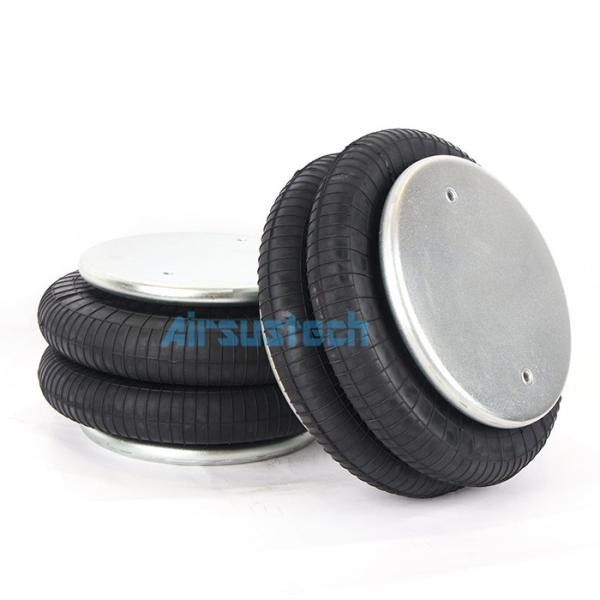

    Triangle 6316/4363 Shock Absorption Air Springs Firestone W01-358-7180 1/4 NPTF Gas Hole

    Triangle 6316/4363 Shock Absorption Air Springs Firestone W01-358-7180 1/4 NPTF Gas Hole

    Product Description:

    AIRSUSTECH actuators have long been used in the industrial market as pneumatic actuators integrated into new and innovative machine designs and as replacement actuators for traditional pneumatic or hydraulic cylinders. Their advantages over traditional cylinders are that they are durable, operate well in corrosive and abrasive environments, are easily tolerant of misalignment, and have a high ratio of stroke to collapsed height.


    2B6330 Specifications:


    Air Fitting

    Operation: Gas-filled

    Gas Hole: 1/4 NPTF


    Height

    MAX. Height: 305 MM

    MIN. Height: 81 MM

    Stroke Height: 224 MM


    Cover Plate

    Top Cover Plate Width: 231 MM

    Bottom Cover Plate Width: 231 MM


    Hole/Stud

    Hole/Stud Qty: Two on One Plate

    Screw Center Distance: 157 MM

    Distance Gas Hole Between Nut: 73 MM

    Bolts Type: 2X3/8-16UNC


    Rubber Bellows

    Bellow Max. Diameter: 325 MM

    Double Convolutions


    Cross References:


    Goodyear

    2B12-425/311, 2B12 425/311

    2B12425/311

    Firestone

    W01-358-7180, W013587180

    W01 358 7180, WO1-358-7180

    WO13587180, WO1 358 7180

    Contitech

    FD 330-22 363, FD 330 22 363

    FD33022363, FD 33022 363

    FD 33022363, FD330-22 363

    FD330 22 363, FD33022 363

    FD33022363, FD 33022 363

    FD330-22363, FD 330-22363

    Watson & Chalin

    AS0154 1G/01881F

    AS01541G/01881F

    Triangle

    6316/4363

    Airkraft6316/4363
    EI Ride8030190VibracousticVSP2B22R7180
    LelandSc2075Navistar1685179C1
    Hendrickson1VA1816Ridewell1003587180C
    SAF Holland57007180Peerless0550 00001

    Air Spring Components:


    1. Air fitting: A tapped hole allowing for the spring to be fed from the air compressor
    2. Nut/bolt/mount: The method for attaching the air spring to the component. Some air springs incorporate a bolt and air fitting combination device.
    3. Bead plate: Crimped metal plate enclosing the spring and allowing attachment. This is typically forged steel, cast zinc alloy or cast aluminum.
    4. Bellows: The physical, multi-layer material withholding the compressed gas. Usually made of neoprene or rubber. 2B6330 air springs are highly engineered elastomeric bellows with specially designed metal end closures. Our standard two ply air spring bellows is actually made up of four layers:

    a. An inner liner of calendered rubber.
    b. One ply of fabric reinforced rubber.
    c. A second ply of fabric-reinforced rubber (with the cords at
    a specific bias angle to the first ply).
    d. An outer cover of calendered rubber
    5. Girdle: Only found in air springs of convoluted design, separating the bellows chambers.


    The Related Pictures of 2B6330:



    Quality Triangle 6316/4363 Shock Absorption Air Springs Firestone W01-358-7180 1/4 NPTF Gas Hole for sale
