Brand Name : | AIRSUSTECH Air Springs |
Model Number : | 1B5330 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
The AIRSUSTEHC Air Springs have the advantages of long service life, vibration and noise reduction because of low quality, good comfort and fatigue resistance. It is widely used in, industrial machinery, instrumentation and other equipment. With their high quality construction and intelligent design, air actuators exhibit excellent universal performance. This enables it to adapt to different operational requirements and ensures consistently high quality performance.
Specifications and Detailed Technical Parameters: 1B5330
Top plate screw (nut) teeth | 2X3/8-16UNC |
The screw center distance of the top cover plate | 157.5 mm |
Screw (nut) teeth of the bottom cover plate | 2X3/8-16UNC |
The screw center distance of the bottom cover plate | 157.5 mm |
Air hole/air inlet | 1/4 NPTF |
The distance between the screw center and air fittings | 73 mm |
Top plate width | 231 mm |
Diameter of the bottom cover | 231 mm |
MAX. Rubber Bellow Diameter | 325 mm |
Stroke | Minimum 231 mm to Maximum 325 mm |
Cross References:
Triangle | 6374/4474 |
Goodyear | 1B12-300/313, 1B12 300/313, 1B12300/313 |
Firestone | W01-358-7008, W01 358 7008, W013587008 WO1-358-7008, WO13587008, WO1 358 7008 |
Contitech | FS 330-11 474, FS330-11 474, FS330-11474 FS 330 11 474, FS330 11 474, FS33011 474 FS330-11 474, FS330 11474, FS33011474 |
Holland(Neway) | 90557226 |
The AIRSUSTECH Air Springs are typically packaged and shipped in sealed bags or boxes, depending on the size and quantity of the order. For large orders, the 1B5330 air springs may be placed on a pallet and secured with shrink wrap to prevent movement during transit. The pallet is then placed on a truck or other method of transport for delivery to the customer's location.

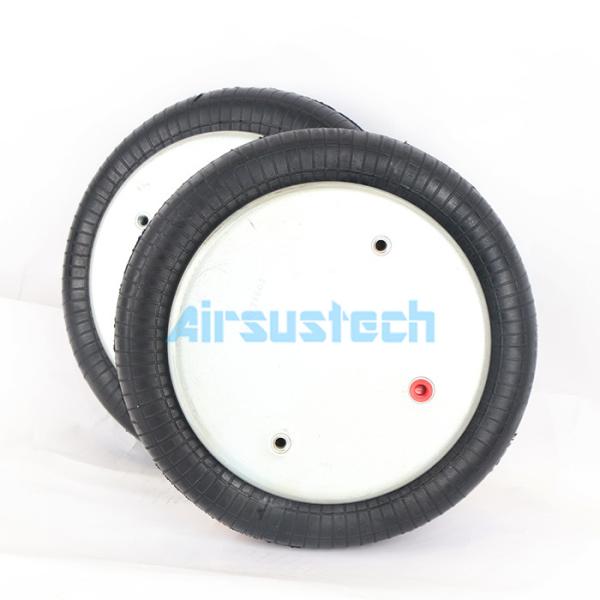

The Related Pictures of 1B5330:
![]() |
