Contitech FS 330-11 474 Air Actuator Single Convoluted Air Bags
2X3/8-16UNC Bolts
Product Description:
The AIRSUSTECH Air springs have been used in heavy duty vehicle suspension
systems for nearly a century, where they have been able to provide
usefulness by taking advantage of the compressed air required for
vehicle braking systems. The 1B5330 air springs have provided a two-fold advantage over mechanical
leaf- or coil-springs. One advantage with air suspension is the
extra comfort provided by being able to vary the air pressure
inside the spring, which changes the spring rate, and therefore,
ride quality. Additionally, because variable control over air
pressure adjusts the deck or trailer height, aligning loading docks
to the level of the deck is possible when dock plates are
unavailable.
Specifications and Detailed Technical Parameters:
Top plate screw (nut) teeth: 2X3/8-16UNC
The screw center distance of the top cover plate: 157.5 mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 157.5 mm
- Air hole/air inlet/air fittings
Air hole/air inlet: 1/4 NPTF
The distance between the screw center and air inlet/air hole/air
fittings: 73 mm
Top plate width: 231 mm
Diameter of the bottom cover: 231 mm
MAX. Rubber Bellow Diameter: 325 mm
Stroke: Minimum 231 mm to Maximum 325 mm
- Bumper block/bumper block
No bumper block
Belt loop/Belt loop
Without belt loop
Cross References:
| Firestone | W01-358-7008, W01 358 7008 W013587008 WO1-358-7008, WO13587008, WO1 358 7008 |
| Contitech | FS 330-11 474, FS330-11 474, FS330-11474 FS 330 11 474, FS330 11 474, FS33011 474 FS330-11 474, FS330 11474, FS33011474 |
| Goodyear | 1B12-300/313, 1B12 300/313, 1B12300/313 |
| Triangle | 6374/4474 |
| Holland(Neway) | 90557226 |
Applications:
- Pulp and paper industry
- Lumber mills
- Lift tables
- Tooling and machining system
- Energy production
- Tooling robotics and automation
- Component assembly
- Automotive assembly
- Medical equipment
- Conveyor systems
- Packaging
FAQ:
Q1: What is your sample policy?
A1: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
Q2: How do you make our business a long-term and good relationship?
A2: Firstly, we maintain good quality and competitive prices to
ensure our customers benefit, and then, we respect every customer
as our friend and we sincerely do business and make friends with
them no matter where they come from.
Q3: How to guarantee your after sales service?
A3: (1) Strict inspection during production
(2) Recheck the products before shipment to ensure our packaging in
good condition
(3) Track and receive feedback from our customers
Q4: What will you do for customer's complaint?
A4: We will respond quickly to our customers within 24 hours.

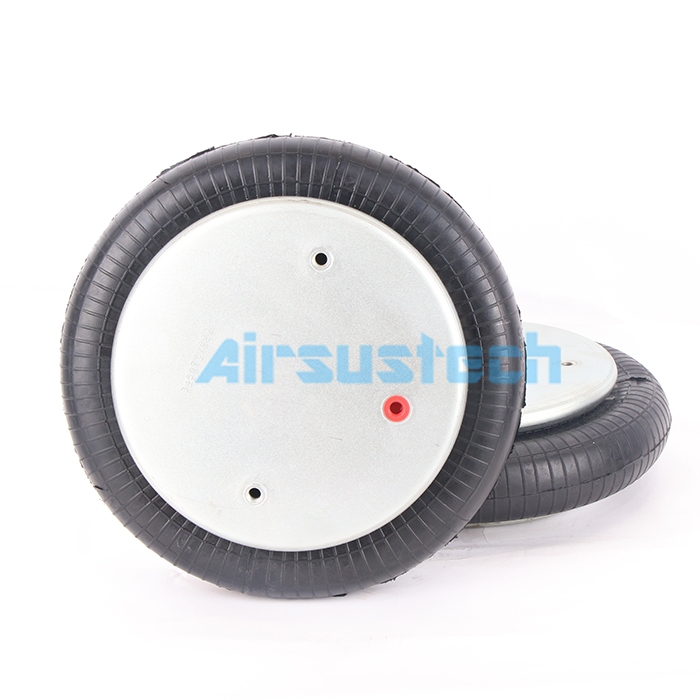

The Related Pictures of 1B5330:
