Phoenix Air Shock Absorber SP1B07 Bellow Style G 1/4 Gas Hole Air
Springs
Product Description
Rubber lining is a retractable inner mold with different shapes
formed by the polymer properties of vulcanized rubber and
high-strength fiber cloth. It is a product made of vulcanized
rubber and fibers. It is compressive, elastic and airtight. After
being filled with compressed air, the AIRSUSTECH air bag will
expand to meet the design requirements of its cross-section. Under
the premise of ensuring quality, if it is used improperly, the
service life of the air spring will be greatly shortened. Due to
its low quality, good comfort and fatigue resistance, the rubber
air spring has the advantages of long service life, vibration
reduction and noise reduction. Widely used in, industrial
machinery, instrumentation and other equipment.
Specifications of 1B5022
Air hole/air inlet/air fittings
Air hole/air inlet: G1/4
The distance between the screw center and air inlet/air hole/air
fittings: 26 mm
Nut/blind nut
Top plate screw (nut) teeth: 2×M8×1.25
The screw center distance of the top cover plate: 53mm
Screw (nut) teeth of the bottom cover plate: 2×M8×1.25
The screw center distance of the bottom cover plate: 53mm
Cover plate
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm
Rubber bellows
MAX. Rubber Bellow Diameter: 215mm
Stroke: Minimum 50mm to Maximum 115mm
Cross References
Phoenix SP 1 B 07
Phoenix SP1 B 07
Phoenix SP1B 07
Phoenix SP1B07
Phoenix SP 1B 07
Phoenix SP 1B07
These OEM AIRSUSTECH can offer as the same size
| SP 1 B 04 | SP 2 B 05 R-a | 2B 07 R | 2B07R |
| SP 1 B 05 | SP 2 B 07 R | 2B 12 R | 2B12R |
| SP 1 B 07 | SP 2 B 12 R | 2B 12 R-3 | 2B12R-3 |
| SP 1 B 12 | SP 2 B 12 R-1 | 2B 15 R | 2B15R |
| SP 1 B 22 | SP 2 B 12 R-2 | 2B 20 R | 2B20R |
| SP 1 B 34 | SP 2 B 12 R-3 | 2B 20 R-9 | 2B20R-9 |
| SP1B04 | SP 2 B 22 R | 2B 21 R | 2B21R |
| SP1B05 | SP 2 B 34 R | 2B 21 R-9 | 2B21R-9 |
| SP1B07 | SP 2 B 34 R-b | 2B 22 R | 2B22R |
| SP1B12 | SP2B05R-a | 2B 22 R a-9 | 2B21Ra-9 |
| SP1B22 | SP2B07R | 2B 34 R | 2B34R |
| SP1B34 | SP2B12R | 2B 34 R-b | 2B34R-b |
| SP2B12R-1 | 2B 49 R-a | 2B34R-a |
| SP2B12R-2 | 2B 49 R-b | 2B49R-a |
| SP2B12R-3 | 2B 85 R | 2B49R-b |
| SP2B22R | 2B 85 R-a | 2B85R |
| SP2B34R | | 2B85R-a |
| SP2B34R-b | | |
Applications
This 1B5022 Industrial Air Spring can be used for:
- Pulp and paper industry
- Lumber mills
- Lift tables
- Tooling and machining system
- Energy production
- Tooling robotics and automation
- Component assembly
- Automotive assembly
- Medical equipment
- Conveyor systems
- Packaging
1B5022 Advantages:
Rubber actuators, compared with traditional products (rigid
actuators, spring...) offer numerous advantages such as
- Flexibility (no angle or alignment problem),
- Compactness
- Power / price ratio
- No maintenance or lubrication required
- Durability
- Reliability
- Resistance to aggressive or hot conditions
FAQ:
Q: Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures. |
Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost. |
Q: How do you make our business a long-term and good relationship?
A: Firstly, we maintain good quality and competitive prices to
ensure our customers benefit, and then, we respect every customer
as our friend and we sincerely do business and make friends with
them no matter where they come from. |
Q: After-sales service?
A: One year warranty for all kinds of products. If you have any
questions after receiving the goods, please feel free to contact me
,as an experienced manufacturer ,you can rest assured of the
quality and after-sales service. |

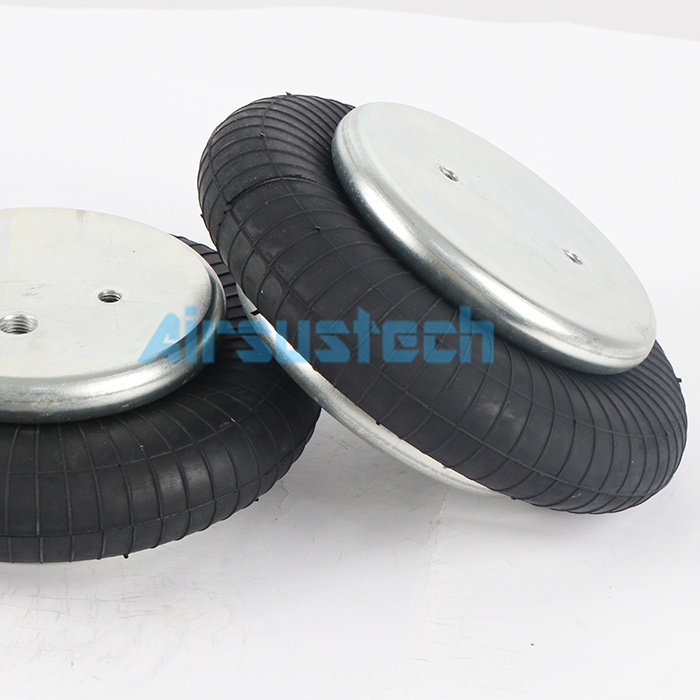

The Related Pictures of 1B5022
