Dunlop SP2913 Industrial Air Suspension Contitech FS 76-7 DI Screw
Bolts Width 9MM
Product Description:
Air springs are extremely durable, precisely engineered, and
cost-effective for a variety of actuation and vibration isolation
applications. With their proven design, fabric-reinforced neoprene
or natural rubber flex member construction, and corrosion-resistant
end retainers, air springs offer superior quality and performance.
Specifications and Technical Parameters:
Specifications:
Air Hole
Gas Fitting: G 1/2
Operation: Gas-filled
Screw/Blind Nuts
Screw Type: 4 pcs×M8
Distance Air Hole Betweeen Screw Hole: 63.5 mm
Screw Center Distance: 127 mm
Screw Width: 9 mm
Cover Plate
Top Cover Plate Diameter: 152.5 mm
Bottom Cover Plate Diameter: 152.5 mm
Height
Minimum Height: 55 mm
Maximum Height: 110 mm
Recommed Height: 90 mm
Rubber Bellows
Installation Diameter: 190 mm
Bellow MAX. Diameter: 175 mm
Pressure Ability: 3-8 bar
Technical Parameters:
Pneumatic application-static characteristic values
| Pressure | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Height H [mm] | 100 | 2.27 | 3.12 | 3.99 | 4.89 | 5.82 | 6.79 | 0.97 |
| 90 | 3.05 | 4.15 | 5.25 | 6.35 | 7.51 | 8.72 | 0.87 |
| 80 | 3.81 | 5.11 | 6.42 | 7.76 | 9.13 | 10.5 | 0.75 |
| 70 | 4.54 | 6.03 | 7.55 | 9.08 | 10.7 | 12.3 | 0.6 |
| 60 | 5.34 | 7.06 | 8.82 | 10.6 | 12.4 | 14.2 | 0.43 |
Cross References:
| Contitech | FS 76-7 DI, FS 76 7 DI, FS767DI, FS76-7 DI FS767 DI, FS 76 7FDI, FS76-7DI,FS 7-67DI |
| Firestone | W01-R58-4078, W01R584078, W01 R58 4078 WO1-R58-4078, WO1R584078, WO1 R58 4078 |
| Dunlop Pneuride | 6" x 1 |
| Dunlop Springride | SP2913, SP 2913 |
| Norgren | PM/31061 |
| Parker | 9109004A |
FAQ:
Q: What is your advantage?
A: (1) High quality - Natural rubber.
(2) Fast delivery - Stock sales.
(3) Best service - 24 hours online.
Q: How do you guarantee quality?
A: We have testing on aging, hardness, bending, tension, viscosity,
rheology, water inspection, bursting, fatigue, etc.
Q: Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q: Can you print my logo on inner box and outer box?
A: Yes. We can do it, but it has MOQ.

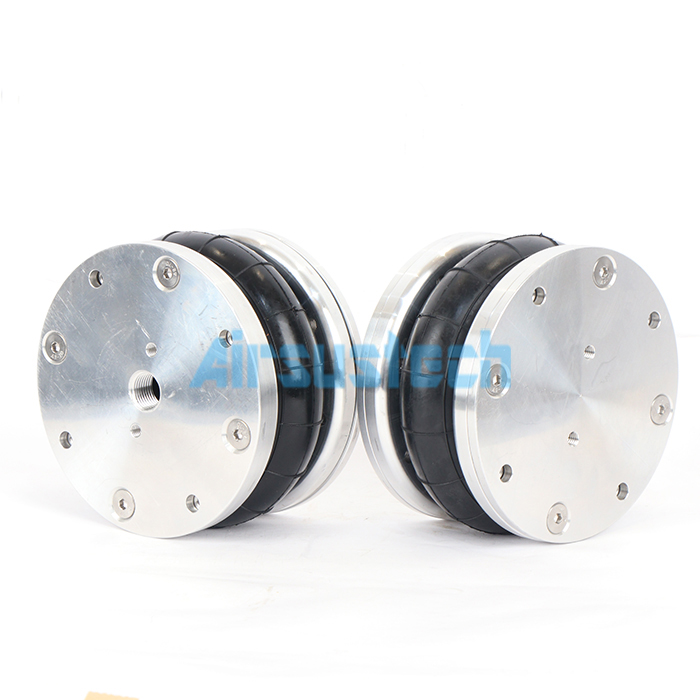

The Real Pictures of 1B6×1P:
