Firestone W01-R58-4078 Industrial Air Suspension 4×M8 Screw Hole
Air Spring Assembly
Product Description:
Air spring is a device that uses compressed air to achieve
suspension and shock absorption. It is widely used in automobiles,
trucks, trains, engineering machinery and other fields. Among them,
stamped flange air spring, as an important type, has the advantages
of simple structure, easy use and stable performance.
Specifications and Technical Parameters:
1B6×1P Air Springs Specifications:
Air Hole
Gas Fitting: G 1/2
Operation: Gas-filled
Screw/Blind Nuts
Screw Type: 4 pcs×M8
Distance Air Hole Betweeen Screw Hole: 63.5 mm
Screw Center Distance: 127 mm
Screw Width: 9 mm
Cover Plate
Top Cover Plate Diameter: 152.5 mm
Bottom Cover Plate Diameter: 152.5 mm
Height
Minimum Height: 55 mm
Maximum Height: 110 mm
Recommed Height: 90 mm
Rubber Bellows
Installation Diameter: 190 mm
Bellow MAX. Diameter: 175 mm
Pressure Ability: 3-8 bar
Mini Pressure: 0 bar
1B6×1P Air Springs Technical Parameters:
Vibration isolation-dynamic characteristic values
| Pressure [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Force (Load) [kN] | 3.1 | 4.2 | 5.3 | 6.4 | 7.5 | 8.7 | 0.87 |
| Spring Rate [N/mm] | 158.5 | 200.5 | 245.5 | 286 | 331.5 | 374.5 |
| Natural frequency [Hz] | 3.5 | 3.4 | 3.4 | 3.3 | 3.3 | 3.3 |
Pneumatic application-static characteristic values
| Pressure | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Height H [mm] | 100 | 2.27 | 3.12 | 3.99 | 4.89 | 5.82 | 6.79 | 0.97 |
| 90 | 3.05 | 4.15 | 5.25 | 6.35 | 7.51 | 8.72 | 0.87 |
| 80 | 3.81 | 5.11 | 6.42 | 7.76 | 9.13 | 10.5 | 0.75 |
| 70 | 4.54 | 6.03 | 7.55 | 9.08 | 10.7 | 12.3 | 0.6 |
| 60 | 5.34 | 7.06 | 8.82 | 10.6 | 12.4 | 14.2 | 0.43 |
Cross References:
Firestone
W01-R58-4078, W01R584078, W01 R58 4078, WO1-R58-4078, WO1R584078, WO1 R58 4078
Contitech
FS 76-7 DI, FS 76 7 DI, FS767DI, FS76-7 DI, FS767 DI, FS 76 7FDI, FS76-7DI,FS 7-67DI
Dunlop Pneuride
6" x 1
Dunlop Springride
SP2913 SP 2913
Norgren
PM/31061
Parker
9109004A
Applications:
AIRSUSTECH air actuators can be used in nearly all branches of
industry, such as:
- Vehicle applications
- Automation technology
- Conveyor systems
- Agricultural machinery
- Food industry
- Paper and textile equipment
- Pantograph drives
- Sawmill machinery
- Punch and forming presses

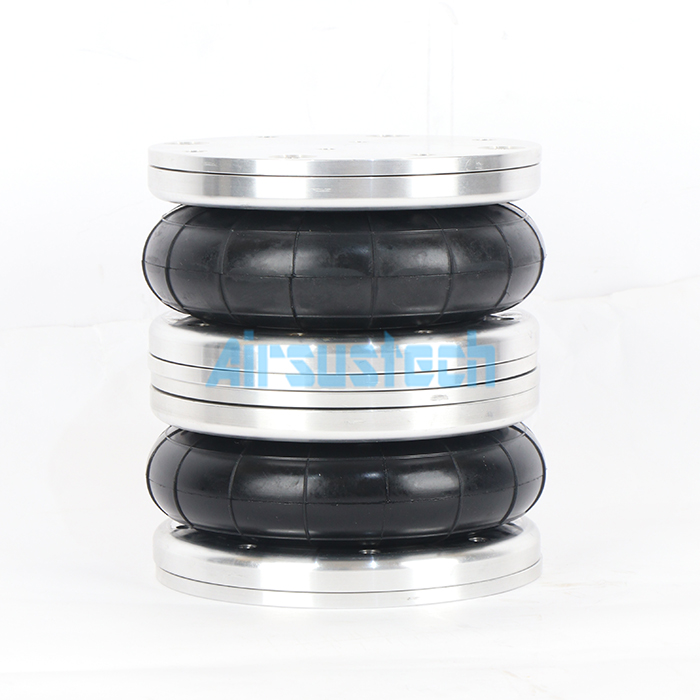

The Real Pictures of 1B6×1P:
