Norgren M/31061 Single Convoluted Air Spring Assembly 4×M10 Screw
Bolts Air Bags
Product Description:
One common use for AIRSUSTECH Air Bags is with compressors in the transportation industry.
Whether you're hauling heavy loads or transporting equipment, these
air bags can help ensure a smooth ride and prevent damage to your
vehicle or cargo. With their durable construction and reliable
performance, they are a great choice for anyone looking to improve
their transportation operations.
Specifications and Technical Parameters:
1B6×1T Specifications:
| Gas Fitting | G 1/2 | Bottom Cover Plate Diameter | 153.5 mm |
| Operation | Gas-filled | Minimum Height | 50 mm |
| Nuts Type | 4 pcs×M10 | Maximum Height | 105 mm |
| Distance Air Hole Betweeen Screw | 63.5 mm | Recommed Height | 85 mm |
| Screw Center Distance | 127 mm | Installation Diameter | 190 mm |
| Screw Height | 25 mm | Bellow MAX. Diameter | 175 mm |
| Top Cover Plate Diameter | 153.5 mm | Pressure Ability | 3-8 bar |
1B6×1T Technical Parameters:
Vibration isolation-dynamic characteristic values
| Pressure [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Force (Load) [kN] | 3.1 | 4.2 | 5.3 | 6.4 | 7.5 | 8.7 | 0.87 |
| Spring Rate [N/mm] | 158.5 | 200.5 | 245.5 | 286 | 331.5 | 374.5 |
| Natural frequency [Hz] | 3.5 | 3.4 | 3.4 | 3.3 | 3.3 | 3.3 |
Cross References:
Norgren
M/31061
Firestone
W01-R58-4052, W01R584052, W01 R58 4052, WO1-R58-4052, WO1R584052,
WO1 R58 4052
Contitech
FS 76-7 DS, FS 76 7 DS, FS767DS, FS76-7 DS, FS767 DS, FS 76 7FDS,
FS76-7DS,FS 7-67DS
Dunlop Pneuride
6" x 1
Dunlop Springride
SP1536, SP 1536
Parker
9109004
The Reason Why Choose Us?
1. Variety of products and high quality. We have hundreds of models to meet your needs. And our products
have passed ISO/TS 16949:2009 certification, reaching international
standards, with high quality.
2. Respond promptly. We generally reply within one day.
3. Good after-sale service. Customer satisfaction is our greatest pursuit. Once the product
has any damage or quality problem, please advise us and we will
replace it.

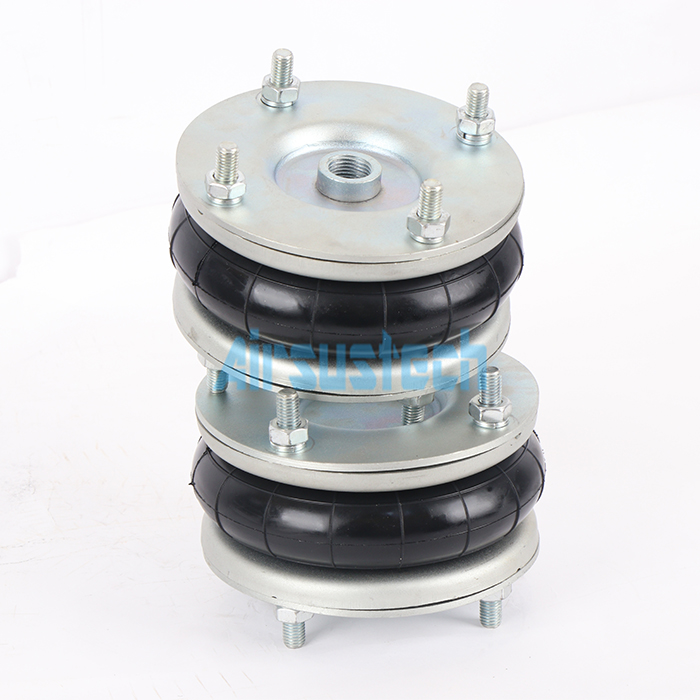

The Real Pictures of 1B6×1T:
