Dunlop Pneuride 6" x 1 Air Bags Suspension Cross Contitech FS 76-7
DS Screw Bolts
Product Description:
One of the most common applications for AIRSUSTECH air spring kits
is heavy-duty trucks and commercial vehicles. These vehicles often
carry heavy loads and require a suspension system that can handle
the weight. AIRSUSTECH air springs provide additional support to
the existing suspension system, making it easier to carry heavy
loads without damaging the vehicle.
Specifications and Technical Parameters:
1B6×1T Specifications:
Air Hole
Gas Fitting: G 1/2
Operation: Gas-filled
Screw Bolts
Nuts Type: 4 pcs×M10
Distance Air Hole Betweeen Screw: 63.5 mm
Screw Center Distance: 127 mm
Screw Height: 25 mm
Cover Plate
Top Cover Plate Diameter: 153.5 mm
Bottom Cover Plate Diameter: 153.5 mm
Height
Minimum Height: 50 mm
Maximum Height: 105 mm
Recommed Height: 85 mm
Rubber Bellows
Installation Diameter: 190 mm
Bellow MAX. Diameter: 175 mm
Pressure Ability: 3-8 bar
Mini Pressure: 0 bar
1B6×1T Technical Parameters:
Pneumatic application-static characteristic values
| Pressure | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Height H [mm] | 90 | 2.66 | 3.63 | 4.62 | 5.62 | 6.67 | 7.75 | 0.91 |
| 80 | 3.43 | 4.63 | 5.83 | 7.05 | 8.32 | 9.63 | 0.8 |
| 70 | 4.17 | 5.57 | 6.99 | 8.42 | 9.89 | 11.4 | 0.67 |
| 60 | 4.94 | 6.54 | 8.19 | 9.83 | 11.5 | 13.2 | 0.51 |
Cross References:
| DUNLOP PNEURIDE | 6" x 1 |
| Contitech | FS 76-7 DS, FS 76 7 DS, FS767DS, FS76-7 DS FS767 DS, FS 76 7FDS, FS76-7DS,FS 7-67DS |
| Firestone | W01-R58-4052, W01R584052, W01 R58 4052 WO1-R58-4052, WO1R584052, WO1 R58 4052 |
| DUNLOP SPRINGRIDE | SP1536, SP 1536 |
| NORGREN | M/31061 |
| PARKER | 9109004 |
About Us:
We always focus on the development of automotive components, and
provide you with quality products and competitive prices.
If you are interested in our products, we are pleased to offer you
our best quotation. If you have any question, please do let me know
We are looking forward to establishing business with you.

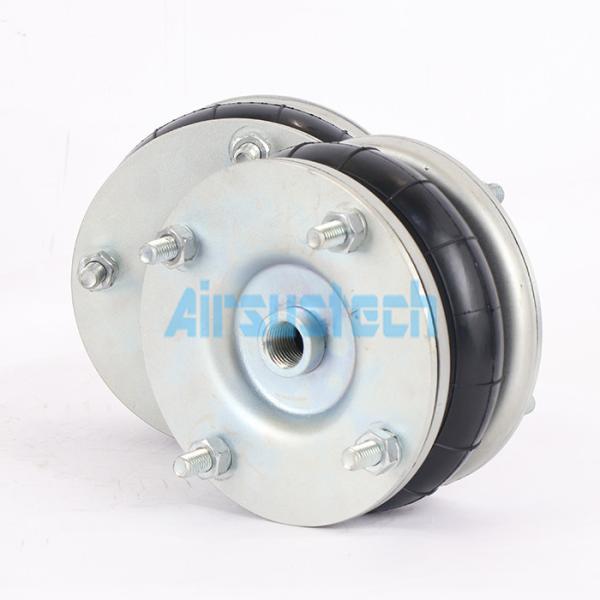

The Real Pictures of 1B6×1T:
