Contitech FS 76-7 DS Industrial Air Spring Actuator G 1/2 Gas Hole
Flang Air Bags
Product Description:
6×1 air spring is produced by AIRSUSTEHC, our air springs bring new
high productivity and long life to your trucks, trailers, buses and
industrial equipment and lifting equipment. Bellows air springs
provide a constant level of traction and provide trouble-free
service.
1B6×1T Specifications:
| Gas Fitting | G 1/2 | Bottom Cover Plate Diameter | 153.5 mm |
| Operation | Gas-filled | Minimum Height | 50 mm |
| Nuts Type | 4 pcs×M10 | Maximum Height | 105 mm |
| Distance Air Hole Betweeen Screw | 63.5 mm | Recommed Height | 85 mm |
| Screw Center Distance | 127 mm | Installation Diameter | 190 mm |
| Screw Height | 25 mm | Bellow MAX. Diameter | 175 mm |
| Top Cover Plate Diameter | 153.5 mm | Pressure Ability | 3-8 bar |
Cross References:
| Contitech | FS 76-7 DS, FS 76 7 DS, FS767DS, FS76-7 DS FS767 DS, FS 76 7FDS, FS76-7DS,FS 7-67DS |
| Firestone | W01-R58-4052, W01R584052, W01 R58 4052 WO1-R58-4052, WO1R584052, WO1 R58 4052 |
| DUNLOP PNEURIDE | 6" x 1 |
| DUNLOP SPRINGRIDE | SP1536, SP 1536 |
| NORGREN | M/31061 |
| PARKER | 9109004 |
The Structure of the Industrial Air Spring Elements:
1. Screw bolt / Stud
Produced as a permanent part of the Cover Plate assembly for
maximum strength and durability. It is used to attach the air
spring to the vehicle’s suspension system.
2. Combined link rod / Combo Stud
Used as the dual purpose of installing the air spring to the
suspension system and providing the air inflation.
3. Nut / Blind Nut
As well a permanent part of the Cover Plate assembly. Provides an
alternative to bolt installation system. It is inside defect within
the iron plate
4. Gas Hole / Air inlet / Air Fitting
Most usually 1/4 N.P.T. which provides the air entrance to the
rubber bellows.
5. Cover Plate
Curled up to more durable bellows design and the largest quality
control in the factory. Allows 100% of the leak test before
shipment.
6. Rubber Bellows
Air Bellows includes four layers of materials: an inner layer, two
layer cord - reinforced fabrics, and a cover. Construction of a
natural rubber provides – 65F functional properties.
7. Bumper block / Buffer block
Solid rubber or engineering plastic device designed to prevent
major damage to the vehicle or suspension in the event of a sudden
loss of air pressure in the spring.
8. Bottom Piston
Provides a low installation of air spring. To control the pressure
in a changing under the load characteristics of spring.
9. Piston Bolt
Connecting the piston to the bellows. Sometimes extensions as an
additional vehicle suspension spring.

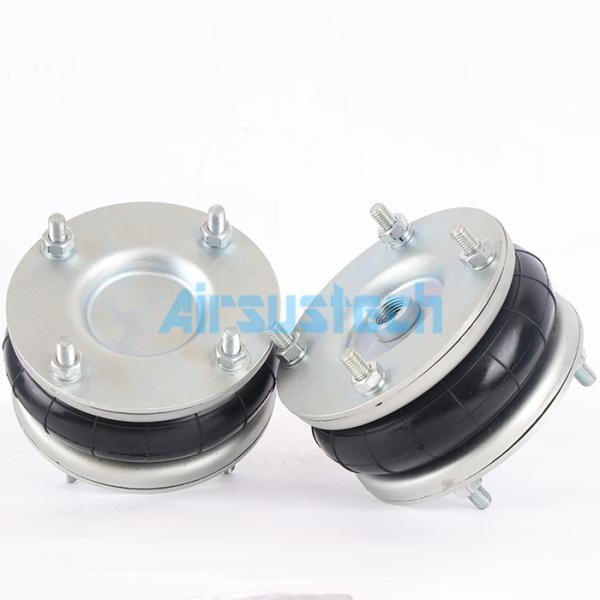

The Real Pictures of 1B6×1T Air Bags:
