Norgren M/31101 Suspension Air Bags Firestone W01-R58-4057 Cover
Plate Max. OD. 210MM
Product Description:
AIRSUSTECH actuators are playing a crucial role in modern machine
design as pneumatic actuators in industrial applications.
Due to their durability, ability to withstand abrasive
environments, and exceptional performance, AIRSUSTECH actuators are
becoming a popular replacement for traditional pneumatic and
hydraulic cylinders.
Specifications and Technical Parameters:
1B10×1T Air Springs Specifications:
Air Hole
Gas Fitting: 1/2 BSP
Operation: Gas-filled
Screw/Blind Nuts
Screw Type: 4 pcs×M10
Distance Air Hole Betweeen Screw: 90.5 mm
Screw Center Distance: 181 mm
Screw Height: 25 mm
Cover Plate
Top Cover Plate Diameter: 210 mm
Bottom Cover Plate Diameter: 210 mm
Height
Minimum Height: 50 mm
Maximum Height: 135 mm
Design Height: 95 mm
Rubber Bellows
Installation Diameter: 295 mm
Bellow MAX. Diameter: 280 mm
Pressure Ability: 3-8 bar
1B10×1T Air Springs Technical Parameters:
Pneumatic application-static characteristic values
| Pressure | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Height H [mm] | 120 | 6.94 | 9.41 | 11.9 | 14.4 | 16.9 | 19.3 | 3.4 |
| 100 | 8.94 | 12.1 | 15.2 | 18.3 | 21.4 | 24.4 | 2.9 |
| 80 | 10.9 | 14.6 | 18.3 | 22 | 25.7 | 29.3 | 2.2 |
| 60 | 12.2 | 16.4 | 20.4 | 24.6 | 28.7 | 32.7 | 1.4 |
Cross References:
| Firestone | W01-R58-4057, W01 R58 4057, W01R584057 WO1-R58-4057, WO1 R58 4057, WO1R584057 |
| Contitech | FS 210-10 DS, FS 210 10 DS, FS21010DS, FS 210-10DS FS 21010DS, FS 210 10DS, FS210-10 DS, FS210 10 DS |
| Dunlop Pneuride | 10''×1 |
| Dunlop Springride | SP2523, SP 2523 |
| Norgren | M/31101 |
| Parker | 9109024 |
FAQ:
Q: How to guarantee your after sales service?
A: (1) Strict inspection during production.
(2) Recheck the products before shipment to ensure our packaging in
good condition.
(3) Track and receive feedback from our customers.
Q: What are the packaging details for the Suspension Air Springs?
A: The Suspension Air Springs are packaged in strong carton boxes
or as per the customers' requirements.
Q:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.

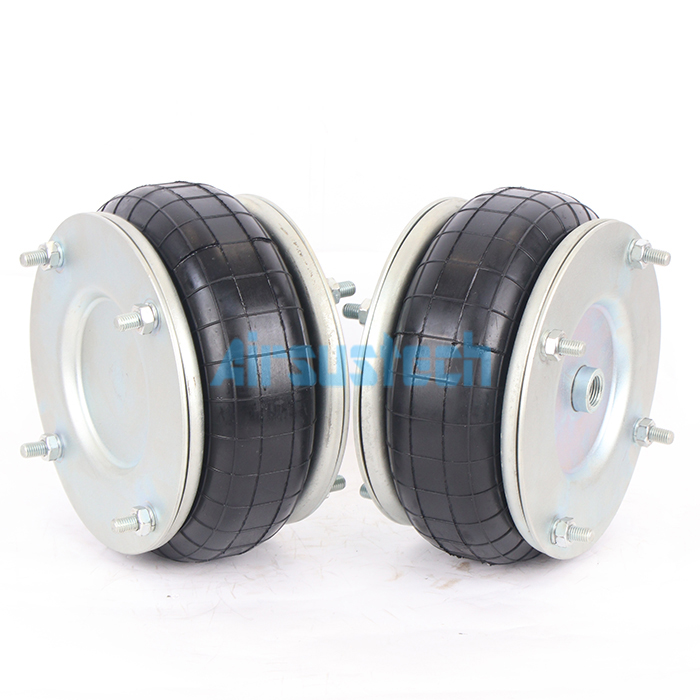

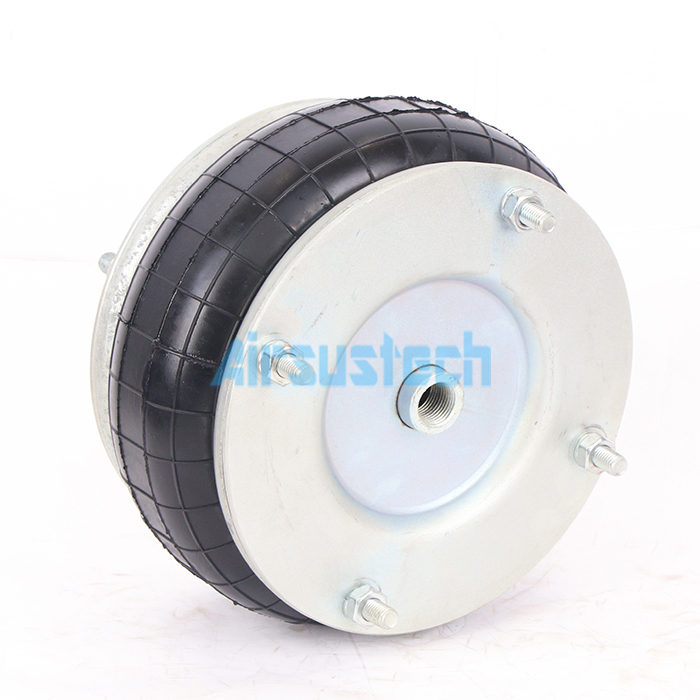

The Real Pictures of 1B10×1T:
