Dunlop Pneuride 10''×1 Air Spring Actuator Cross Contitech FS
210-10 DS Air Shocks
Product Description:
The weight of a truck, and therefore the axle load, fluctuates
greatly depending on the payload. In order to provide the best
possible solution to meet the resulting suspension requirements,
virtually all commercial vehicle manufacturers make use of air
springs. Air-suspended trucks with level control system provide
constant chassis height and road clearance, regardless of the
loading weight.
Specifications and Technical Parameters:
1B10×1T Air Springs Specifications:
Air Hole
Gas Fitting: 1/2 BSP
Operation: Gas-filled
Screw/Blind Nuts
Screw Type: 4 pcs×M10
Distance Air Hole Betweeen Screw: 90.5 mm
Screw Center Distance: 181 mm
Screw Height: 25 mm
Cover Plate
Top Cover Plate Diameter: 210 mm
Bottom Cover Plate Diameter: 210 mm
Height
Minimum Height: 50 mm
Maximum Height: 135 mm
Design Height: 95 mm
Rubber Bellows
Installation Diameter: 295 mm
Bellow MAX. Diameter: 280 mm
Pressure Ability: 3-8 bar
1B10×1T Air Springs Technical Parameters:
Vibration isolation-dynamic characteristic values
| Pressure [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Force (Load) [kN] | 6.9 | 9.4 | 11.9 | 14.4 | 16.9 | 19.3 | 3.4 |
| Spring Rate [N/mm] | 203 | 257 | 313 | 369 | 428 | 481 |
| Natural frequency [Hz] | 2.7 | 2.6 | 2.6 | 2.5 | 2.5 | 2.5 |
Cross References:
Dunlop Pneuride
10''×1
Firestone
W01-R58-4057, W01 R58 4057, W01R584057, WO1-R58-4057, WO1 R58 4057,
WO1R584057
Contitech
FS 210-10 DS, FS 210 10 DS, FS21010DS, FS 210-10DS, FS 21010DS, FS
210 10DS, FS210-10 DS, FS210 10 DS
Dunlop Springride
SP2523, SP 2523
Norgren
M/31101
Parker
9109024
Advantages:
1. Excellent materials
2. Effective shock
3. In situ installation
4. Comfortable and stable
5. Long life
6. Slove the abnormal noise
FAQ:
Q: What is your warranty term?
A : There is a 12months warranty for our export products has run
out from the date of the shipment. |
Q: I can not find out the items what i want from your website, can
you offer the products i need?
A: YES.One of our service term is sourcing the products that our
customers need, so please tell us the details information of the
item. |
Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost. |
Q: What will you do for customer's complaint?
A: We will respond quickly to our customers within 24 hours. |

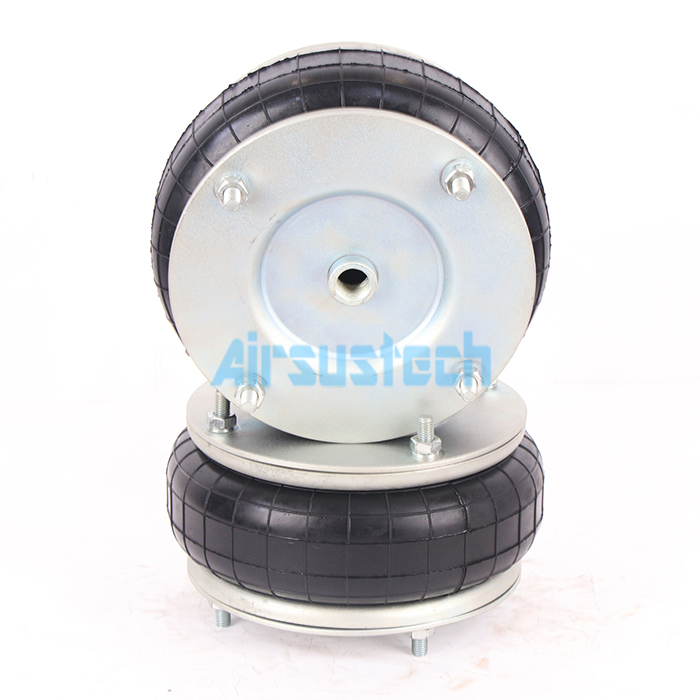

The Real Photos of 1B10×1T:
