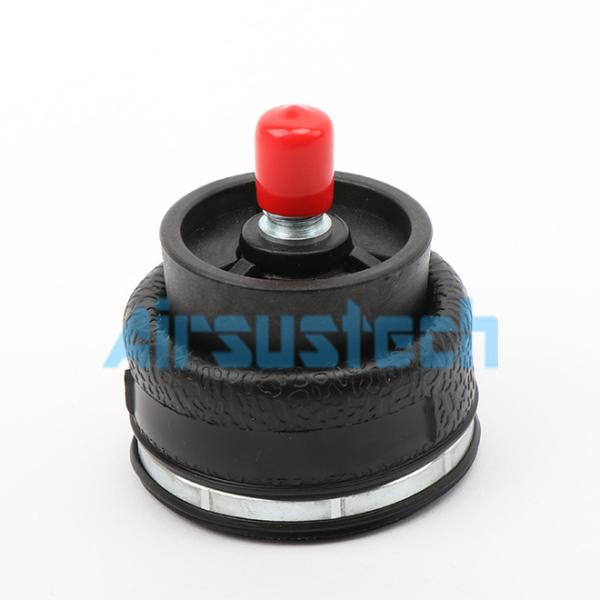

Goodyear 1S3-013 Air Springs Mini Lobe Super-Cushion Air Suspension
Springs Sleeve Type
Product Description:
The AIRSUSTECH Air Spring vibration that is typically experienced in industrial
machinery can cause excessive wear and tear on equipment, which can
lead to costly repairs and downtime. The Industrial Air Springs
product effectively reduces this vibration with its Vibration
Bellows technology. The bellows air bags work by absorbing the
shock and vibration that is generated during equipment operation,
resulting in smoother and more efficient performance. The 1S3-013 Air Springs product is a cost-effective solution for equipment
owners who are looking to improve the performance and longevity of
their machinery.
Technical Parameters: G3013
Actuator
| Air Inlet | 1/8 in |
| Blind Tap for Mounting | 5/16-18 UNC x 0.44 Deep |
| Temperature Range [Min] | -40 °F |
| Style No. | YI-1S |
| Stroke Length [Max] | 2.1 in |
| Force @ Maximum Stroke (80 psi) | 120 lbf |
| Weight | 0.6 LB |
Bellows Assembly
| End Closure | Style 2 End Retainer |
| Temperature Range [Max] | 150 °F |
| Upper End Plate Diameter | 2.4 in |
| Bellows Type | Shaped Sleeve |
| Compressed Height | 1 1/2 in |
| Bumpers | w/o Bumpers |
| Recommended Isolator Design Height [Min] | 2 in |
| Force @ Stroke (80 psi) | 580 lbf @ 1 in |
| Air Inlet Type | NPT |
| Force @ 1 in Stroke | 560 lbf |
| Lower End Plate Diameter | 3.4 in |
| Pressure [Max] | 100 psi |
| Recommended Isolator Design Height [Max] | 3 in |
Cross References:
| Goodyear | 1S3-013, 1S3 013, 1S3013 |
| Firestone | W02-358-3000, W02 358 3000, W023583000 WO2-358-3000, WO2 358 3000, WO23583000 |
W02-358-3001, W023583001, W02 358 3001 WO2-358-3001, WO2 358 3001, WO23583001 |
| Contitech | SK37-6P02, SK37 6P02, SK376P02 SK37-6PO2, SK37 6PO2, SK376P02 |
| Prevost | 950208 |
Applications:
The AIRSUSTECH Air Springs for trucks, trailers buses, and cab & seat springs
protect cargo, provide constant-level hauling, and deliver long,
trouble-free service.The 1S3-013 air springs give your trucks, trailers and buses a new high in
productivity and long life. They offer a quiet, cushioned ride.
Truck, trailer and bus bodies last longer than with steel springs
because there is less vibration. The driver rides in greater
comfort, becomes less fatigued and stays more alert. Plus cargo has
better protection from shock and vibration. Whenever you want to
add an axle, AIRSUSTECH G3013 air springs fit right in. AIRSUSTECH air springs, when used with
leveling valves, also maintain consistent trim regardless of the
load. That means clearance heights remain constant,and that trailer
floors are flush with loading dock floors for ease of loading and
unloading. For driver comfort, load cushioning, and long life for
your trucks, trailers, bus, and cab and seat springs specify
AIRSUSTECH Air Springs.
