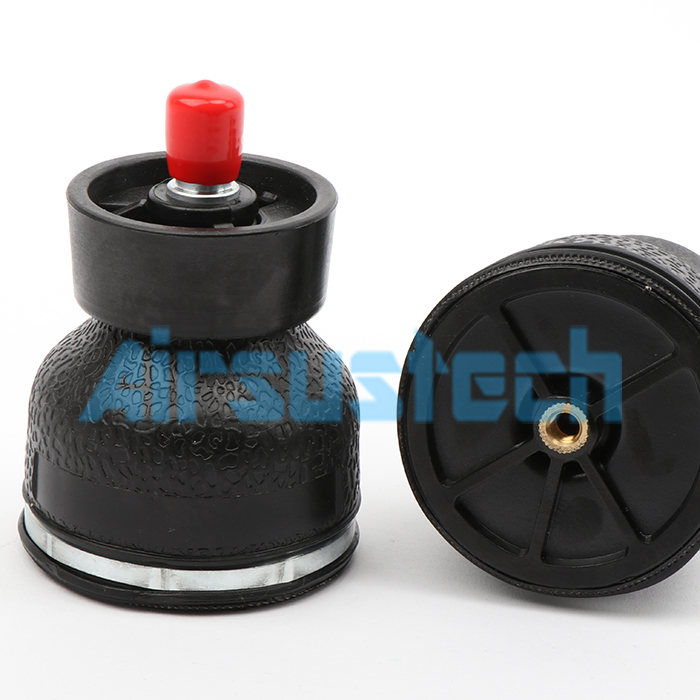

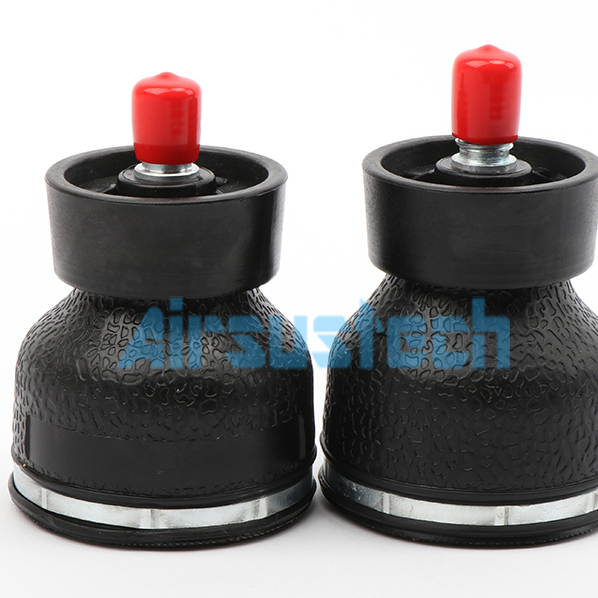

Contitech SK37-6P02 Air Springs Sleeve-type Conical Air Actuator
G1/8 Air Fitting
Product Description:
These AIRSUSTECH air springs are capable of operating within a pressure range of 0
Bar to 8 Bar, making them suitable for a wide range of industrial
applications. The rubber fabric reinforced material used in the
construction of these air springs provides exceptional durability
and resistance to wear and tear, ensuring a long service life.
The SK37-6P02 Air Springs come equipped with M8×9.5 mmbolts on one plate, making
them easy to install and use in a variety of different settings.
Whether you need to isolate vibrations in heavy machinery or
provide cushioning for sensitive equipment, these air springs are
the perfect solution.
Features:
| Bottom Plate Bolts | M8×9.55 mm |
| Bottom Diameter | 76 mm |
| Top Diameter | 61 mm |
| Air Hole | G 1/8 |
| Minimum Height | 38 mm |
| Maxmum Height | 84 mm |
| Stroke Height | 46 mm |
| Max Pressure | 8 bar |
Technical Parameters: G3013
Vibration isolation- dynamic characteristic values Design height H: recommended 60mm |
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [I] |
| Force (Load) [kN] | 1.1 | 1.4 | 1.8 | 2.1 | 2.5 | 2.9 | 0.15 |
| Spring rate [N/mm] | 32.5 | 41 | 50 | 59 | 67 | 75 |
| Natural Frequency [Hz] | 2.8 | 2.7 | 2.7 | 2.6 | 2.6 | 2.6 |
Cross References:
| Contitech | SK37-6P02, SK37 6P02, SK376P02 SK37-6PO2, SK37 6PO2, SK376P02 |
| Goodyear | 1S3-013, 1S3 013, 1S3013 |
| Firestone | W02-358-3000, W02 358 3000, W023583000 WO2-358-3000, WO2 358 3000, WO23583000 |
W02-358-3001, W023583001, W02 358 3001 WO2-358-3001, WO2 358 3001, WO23583001 |
| Prevost | 950208 |
AIRSUSTECH Air Springs' Features and Benefits:
- Reasons for increased air suspension usage:
Suspension manufacturers have built in a greater degree of
durability and longer warranty periods
Increased need for greater axle excursion
- A greater level of isolation:
Reduces cab and body damage
Reduces downtime, driver fatigue, and extends trailer life
- For the owner-operator, air suspension:
Improves isolation in both loaded and unloaded conditions
Broadens types of load available for transport
Provides greater driver comfort
Support and Services:
Our AIRSUSTECH Industrial Air Springs are designed to provide reliable suspension
and vibration isolation solutions for a wide range of industrial
applications. Our technical support team is available to assist
with product selection, installation guidance, troubleshooting, and
repair services.
We offer comprehensive services to ensure that our customers
receive the best possible performance from their air springs. Our
services include:
- Custom engineering and design services for unique applications
- On-site installation and maintenance support
- Product testing and validation
- Repair and refurbishment services
- Training and education programs for customers and technicians
Our commitment to quality and customer satisfaction drives our
product support and services. Contact us for more information on
how we can assist with your industrial air spring needs.
FAQ:
Q1: How to order ? A1: Step 1, please tell us what model and quantity you need;
Step 2,then we will make a PI for you to confirm the order details;
Step 3,when we confirmed everything ,you can arrange the payment;
Step 4,finally we deliver the goods within the stipulated time. |
Q2: Can you print my logo on inner box and outer box? A2: Yes. We can do it, but it has MOQ. |
Q3: What is your advantage? A3: (1) High quality.
(2) Fast delivery.
(3) Best service. |
Q4: Can you produce the product according to the samples? A4: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures. |
