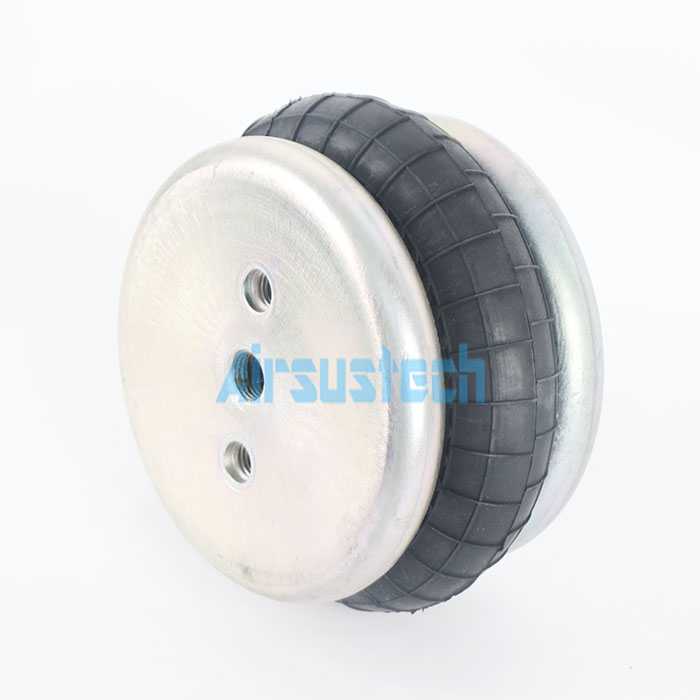

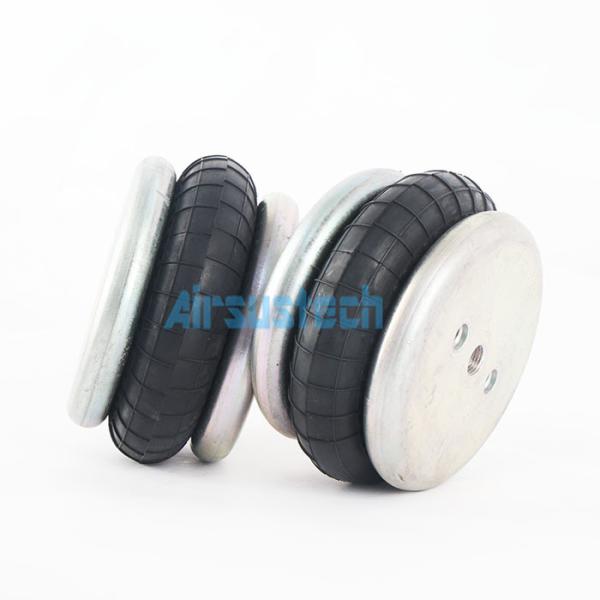

    Firestone W01-358-0010 Industrial Bellows Single Convoluted Air Shock Absorbers

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B130070
    Certification : ISO/TS16949:2009
    Price : USD69.9/PC-USD199.9/PC
    Delivery Time : 5-8 Working Days
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    • Product Details
    • Company Profile

    Firestone W01-358-0010 Industrial Bellows Single Convoluted Air Shock Absorbers

    Firestone W01-358-0010 Industrial Bellows Single Convoluted Air Shock Absorbers

    W01-358-0010 Features:


    Product NameAIRSUSTECH Air Springs
    MIN H.1.9 Inches
    MAX H.3.5 Inches
    MAX O.D. AT 100 PSIG
    6 Inches
    Max Expanded Height1.6 Inches

    1B130070 Technical Parameters:


    Volume @ 100 PSIG = 32 in3
    Natural Frequency
    Gage Pressure(PSIG)Load(Ibs.)

    Spring Rate

    (Ibs./in.)

    CPMHZ
    404207652544.24
    606401,0882444.07
    808801,4102373.96
    1001,1201,7102323.86

    Product Code Variations:
    Rubber bellows only

    W01-358-0010, W01 358 0010, W013580010

    WO1-358-0010, WO1 358 0010, WO13580010

    3/4 NPT (only) upper plate,
    blind nuts lower plate
    W01-358-0286, W01 358 0286, W013580286,
    WO1-358-0286, WO1 358 0286, WO13580286
    Socket head aluminum bead
    rings (bolts, nuts, washers not
    included-use 1/4 cap screws)
    W01-358-0017, W01 358 0017, W013580017
    WO1-358-0017, WO13580017, WO1 358 0017
    Blind nuts, 3/4 NPT
    W01-358-6996, W01 358 6996, W013586996
    WO1-358-6996, WO1 358 6996, WO13586996
    Blind nuts, 1/4 NPT

    W01-358-7001, W01 358 7001, W013587001

    WO1 358 7001, WO1-358-7001, WO13587001


    Applications:


    • Off-highway vehicles such as construction equipment, agricultural machinery, and mining equipment, where air springs are used for suspension and to improve ride comfort and stability.
    • Press equipment and part extraction, where air springs are used as actuators.
    • Test equipment and motion simulators , where air springs are used as vibration isolators and to reduce shock and noise.
    • Precision equipment and machinery, such as printing presses, where air springs are used for vibration isolation and leveling.
    • Textile machinery, where air springs are used to provide a smooth and stable ride, improve the quality of the finished product, and reduce the wear and tear on machinery.
    • Paper mill machinery, where air springs are used for suspension, levelling and vibration isolation.
    • Cheese and dairy industry machines

    Advantageous Features of AIRSUSTECH Air Springs:


    1. shock absorption effect is better, can effectively improve the comfort of the whole car
    2. Effectively reduce fuel consumption, improve economic efficiency
    3. Protect the vehicle's own parts, extend the life of the vehicle
    4. Facilitate dumping transportation, effectively improve the transportation efficiency

    Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AIRSUSTECH 1B130070 Bellows Style Industrial Air Spring number or any other model you need. We can offer competitive price, and delivery time.
