    W01-358-0010 Firestone Industrial Air Springs Single Convoluted Rubber Bellows

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B130070M8
    Certification : ISO/TS16949:2009
    Price : USD69.9/PC-USD199.9/PC
    Delivery Time : 5-8 Working Days
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    • Product Details
    • Company Profile

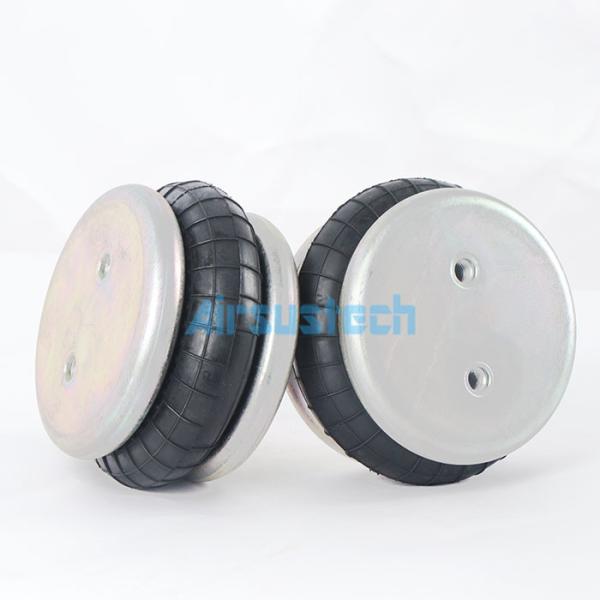

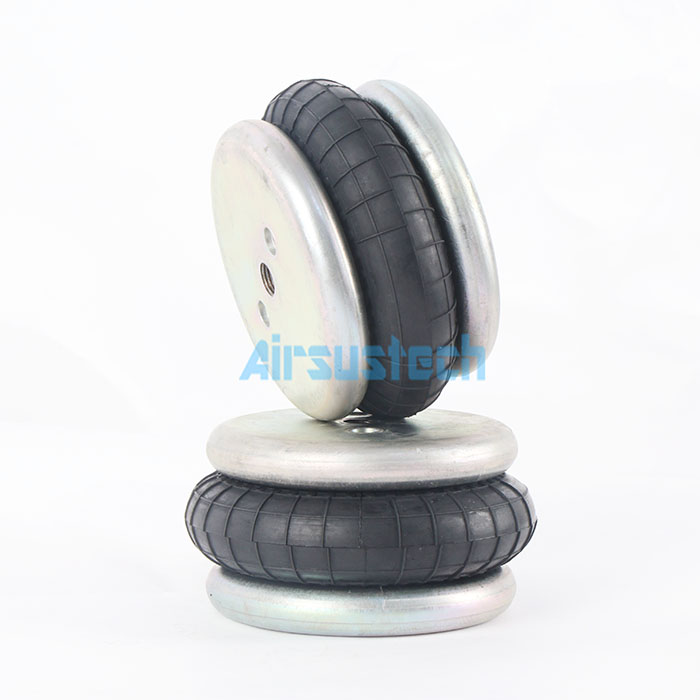

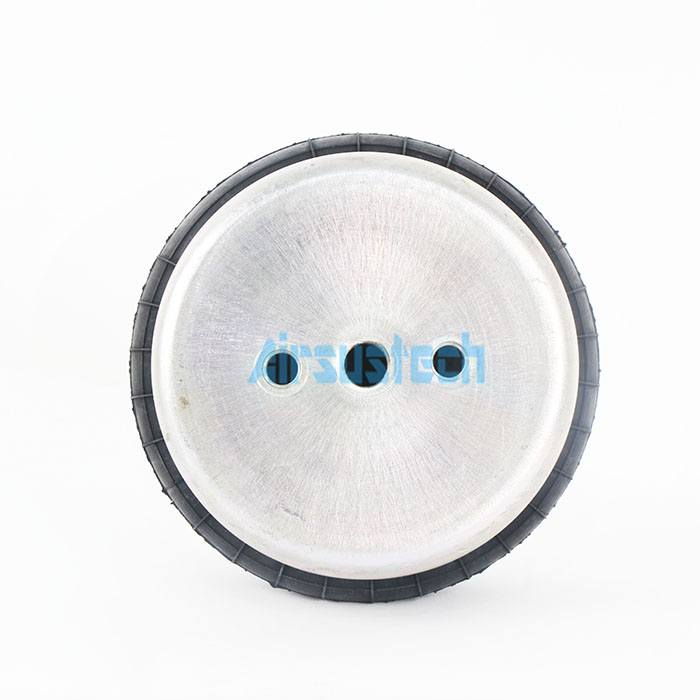

    W01-358-0010 Firestone Industrial Air Springs Single Convoluted Rubber Bellows

    W01-358-0010 Firestone Industrial Air Springs Single Convoluted Rubber Bellows


    Product Description:


    • The AIRSUSTECH Air Springs are used to resiliently attach machines and devices that generate shocks and vibrations transmitted through the foundation to the environment (eg textile looms, conveyors, impact hammers, forging presses, etc.). They are perfect for isolating laboratory instruments against vibrations. They can also be used to suspend truck trailers and caravans. They are used in pneumatic lifts, e.g. in car repair shops. Operation as a single linear air motor is also a common application.
    • Benefits of application: vehicle and cargo protection; reducing tire wear; lower fuel consumption; low maintenance costs and a very long service life.

    Features of 1B130070M8:


    • Product Name: AIRSUSTECH Air Springs
    • Rubber Bellows Only: W01-358-0010
    • MIN H.: 48 mm
    • Single Convoluted Air Bags
    • Max. O.D. At 7 Bar: 152 mm
    • Top and Bottom Cover Diameter: 114 mm
    • Material: Rubber

    Other Models of Firestone Style 16:


    • Blind nuts, 1/4 BSP
    W01-M58-6140, W01 M58 6140, W01M586140, WO1-M58-6140, WO1 M58 6140, WO1M586140
    • Socket head aluminum bead rings (bolts, nuts, washers not included–use M6 cap screws)
    W01-358-0017, W01 358 0017, W013580017, WO1-358-0017, WO1 358 0017, WO13580017

    Technical Parameters:


    Maximum Height89 mm
    Minimum Height48 mm
    Maximum Stroke41 mm
    Force in kN @ 5 Bar at Stroke of 25 mm3.6
    Force in kN @ 5 Bar at Stroke of Maximum Stroke2.5

    Applications:
    • AIRSUSTECH Air Bags, model number 1B130070M8, are designed for a variety of heavy-duty vehicles and machinery. These air bags are made from high quality materials, including rubber and steel, ensuring that they meet the strictest quality standards.
    • AIRSUSTECH industrial products are used in an array of industries ranging from air springs for agriculture equipment to anti-vibration solutions for commercial trailers. Some common industries AIRSUSTECH serves are:Commercial Truck & Trailer, Rail Applications,Agriculture, Construction and Mining, Actuators and Isolators.

    Why Choose Us?


    1. The low cost, wide range of specifications
    2. The long service life, no maintenance and lubrication, without the need for internal contraol rod or piston
    3. No friction effect, soft medium
    4. The bending capacity, lateral load capacity, compact original height
