Product Description:
The Suspension Air Springs require 600mm of installation space,
making them easy to install in a wide range of vehicles. They have
a working stroke of 380mm, which means they can be adjusted to
different road conditions and keep your vehicle stable. The maximum
recommended stroke for these rear air suspension systems is 420mm,
giving you plenty of flexibility when it comes to adjusting the
ride height.
One of the main features of the Suspension Air Springs is its
cross-FIRESTONE number W01-358-7324. This unique feature ensures
that you are getting a high-quality product that has been tested
and approved by industry experts. With this cross-reference number,
you can rest assured that you are getting a Suspension Air Spring
that is built to last.
Features:
- Product Name: Suspension Air Springs
- Cover Plate Diameter (Width): 517 Mm
- Assembly Weight: 16.5 KG
- Bolts Distance D: 482 Mm
- Features: Air Lift Air Springs, Air Lift Air Springs, Suspension
Air Bags
| FIRESTONE | W01-358-7324 |
| FIRESTONE | W01 358 7324 |
| FIRESTONE | W013587324 |
Technical Parameters:

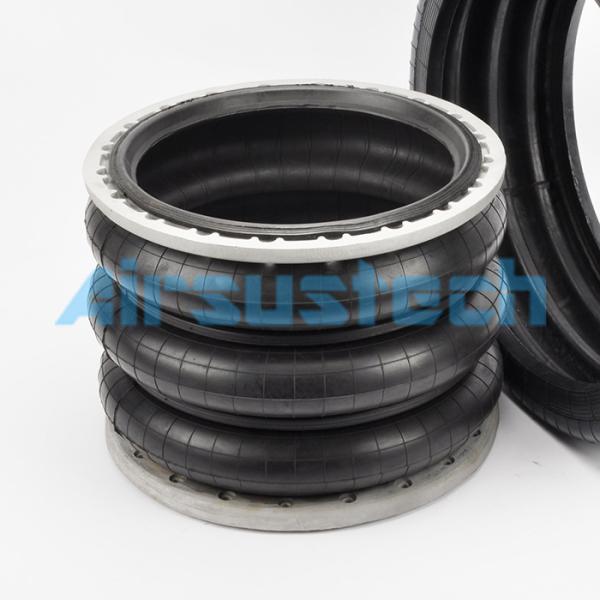

AIRSUSTECH 3H520312-482 AIR SPRING
The AIRSUSTECH 3H520312-482 air spring is an essential component in
various applications that require reliable and efficient suspension
systems. With its superior quality and high-end features, this air
spring is designed to provide exceptional performance that meets
your unique application requirements.
Technical Specifications
- Recommended max working height: 390mm
- Clamp ring diameter: 517mm
- Mounting bolts: 48x 3/8
- Temperature range: -40 to + 70°C
- Style: 320
- Stroke: 369mm
- Max. load at 7 bar: 156.73kn
- Max diameter at 7 bar: 569mm
- Max height: 483mm
- Min height: 114mm
Applications:
Suspension air springs are suitable for various applications
including air suspension, air shock absorber and air bag suspension
kit. The product is designed to provide a smooth and comfortable
ride, even on rough roads. The air springs are made of black rubber
and equipped with white zinc iron cover plates for durability.
Support and Services:
Our Suspension Air Springs are designed to provide superior comfort
and performance for a variety of vehicles, including trucks, buses,
and trailers. Our technical support team is available to answer any
questions you may have about installation, maintenance, or
troubleshooting. We also offer a range of services to ensure that
your air springs operate at peak performance, including:
- Customized engineering solutions
- Product testing and analysis
- Product training and education
- Warranty and repair services
- 24/7 customer support
Our goal is to provide our customers with the highest level of
technical support and services to ensure their satisfaction with
our Suspension Air Springs.
