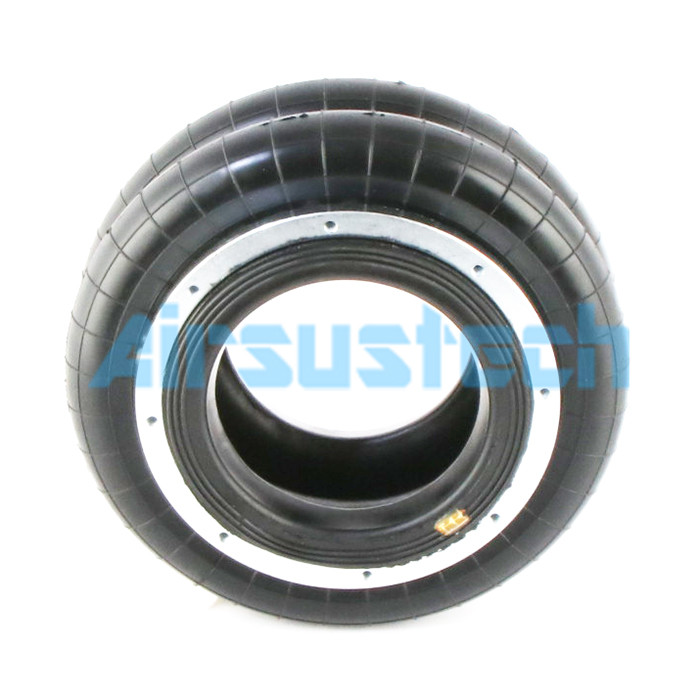

Product Description:
The air spring has a pressure range of 10-30 PSI, suitable for
different types of loads and road conditions. It can withstand
high-frequency vibrations and shocks due to its durability cycles
of over 10. With a full stroke of 185 mm, this air spring provides
a comfortable and smooth ride for passengers and reduces wear and
tear on vehicle components.
The air spring is an OEM product with part number 88538. It is
designed to fit perfectly on all types of vehicles, ensuring
hassle-free installation and maintenance. Made of high-quality
materials that are durable and long-lasting, this air spring offers
great value for money.
Features:
- Product Name: Torpress Air Spring
- Temperature: -35℃~+60℃
- DIA. of Two bolts: 160.3 Mm
- Connecting Bolts or Holes: 8PCS M8X1
- Condition: 100% Brand-new
- Torpress Pirelli No.: Torpress Model 20
- Features:
- Pirelli Air Suspension System
- Pirelli Air Lift Suspension
- Pirelli Pneumatic Shock Absorber
Technical Parameters:
Product Specification Update
Nut / Blind Nut
There are 8 pieces of M8X1 Top Cover Plate Screws with 8 tooth. The
Screw Center Distance of Top Cover Plate is 160.3 mm. Similarly,
there are 8 pieces of M8X1 Bottom Cover Plate Screws with 8 tooth.
The Screw Center Distance of Bottom Cover Plate is 160.3 mm
Gas Hole / Air inlet / Air Fitting
There is NO Gas Hole / Air inlet present
Cover Plate
The Top Cover Plate Diameter is 179 mm and the Bottom Cover Plate
Diameter is 179 mm.
Rubber Bellows
The Rubber Bellows has a MAX diameter of 255 mm and a Natural
Diameter of 224 mm. The Working Stroke ranges from MAX 265 mm to
MIN 80 mm. The Compressed Height is 80 mm / 3.12 inches while the
Design Height ranges from 178 mm-203 mm / 7-8 inches. There are a
total of 20 Bellows.
Bumper block / Buffer block
There is no Bumper Block present.
Girdle Hoop / Girdle Ring
There is one piece of Girdle Hoop present.
Applications:
Air spring products are ideal for a wide range of industrial
machines. It can be used in applications such as air shock
absorbers, air suspensions, and more. It provides a high level of
stability and support to these machines, ensuring they run smoothly
and efficiently.
Air spring products are designed to provide superior performance,
durability, and reliability. It is made from high-quality materials
and is engineered to withstand the toughest conditions. The product
has been tested and proven to be highly effective in industrial
settings.
Air spring products are a must-have product for anyone who wants to
ensure their industrial machines run smoothly and efficiently. It
is easy to install and requires minimal maintenance. The product is
also cost-effective, making it an excellent investment for
businesses of all sizes.
Packing and Shipping:
Product Packaging:
- Air Spring
- Instruction manual
- Warranty information
|
Shipping:
- Ships within 1-2 business days
- International shipping available with additional fees
|
