Product Description:

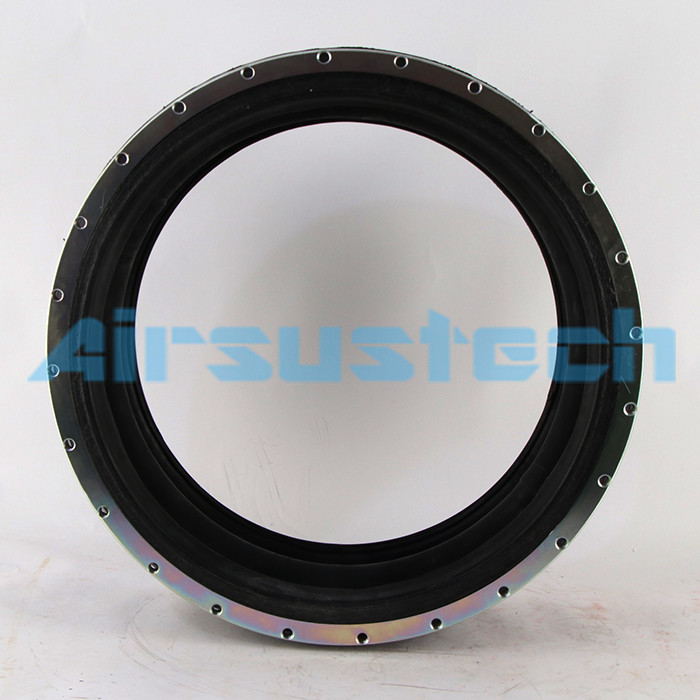

The rubber air springs are made from high-quality rubber + steel
materials, ensuring they can withstand the harshest conditions.
They can be used to replace worn suspension systems or as an
upgrade to an existing system. With its Firestone OEM part number
W01-M58-6985, it is a reliable choice for any heavy-duty vehicle.
Features:
Manufacturer Brand: AIRSUSTECH
Manufacturer ID: 2B6986
Firestone Style 218
Two Ply Bellows
| Firestone ID: W01-358-6986 |
| Firestone ID: W01 358 6986 |
| Firestone ID: W013586986 |
| Firestone ID: WO1-358-6986 |
| Firestone ID: WO1 358 6986 |
| Firestone ID: WO13586986 |
Technical Parameters:
Material
The standard cord used is 2-ply.
End Closure Details
The end closure is designed with a bead ring type and has 4 rings
that contain 24 bolts each. The bolt circle diameter is 419mm.
AIR MOUNT ISOLATOR
The design height of the AIR MOUNT ISOLATOR is 241mm. At 3 Bar, the
load at design height is 34.9kN; at 5 Bar, the load at design
height is 80.6kN; at 7 Bar, the load at design height is 84.5kN.
The natural frequency is 1.6 Hz at 5 Bar. At forced frequency 7 Hz,
the % of isolation is 93.9%; at forced frequency 13 Hz, the % of
isolation is 98.5%; and at forced frequency 25 Hz, the % of
isolation is 99.6%.
The AIR MOUNT ISOLATOR has a maximum diameter of 508mm and a
maximum height of 84mm. It has a maximum stroke of 183mm and a
minimum usable height of 267mm.
The AIR MOUNT ISOLATOR has a force of 86.3kN at 5 Bar at a stroke
of 25 mm, 75.1kN at 5 Bar at a stroke of 50% of max stroke, and
52.1kN at 5 Bar at a stroke of maximum stroke. The high strength
style number for this style cross-ref is 218.
Packing and Shipping:
Product Packaging:
The product will be packaged in a sturdy cardboard box. The box
will be sealed with tape and include a user manual and all
necessary mounting hardware.
Shipping:
The product will be shipped via standard international courier
shipping. The product will be carefully packed in the above
packaging and shipped within 1-2 business days of placing the
order. Once the order is shipped, the customer will receive a
tracking number via email.
FAQ:
Q: What is the brand name of the air bags product?
A: The brand name of the air bags product is AIRSUSTECH.
Q: What is the model number of the air bags?
A: The model number of the air bags is 2B6985.
Q: Where are the air bags manufactured?
A: The air bags are manufactured in Guangzhou, China.
Q: What is the certification of the air bags?
A: The air bags are certified with ISO/TS16949:2009.
Q: What is the minimum order quantity for the air bags?
A: The minimum order quantity for the air bags is 2.
Q: What is the price range for the air bags?
A: The price range for the air bags is USD399.9/PC-USD699.9/PC.
Q: What are the packaging details for the air bags?
A: The air bags are packaged in a strong carton box or as per
customer's requirement.
Q: What is the delivery time for the air bags?
A: The delivery time for the air bags is 5-8 working days.
Q: What are the payment terms for purchasing the air bags?
A: The payment terms for purchasing the air bags are T/T, Western
Union, Paypal or other options.
Q: What is the supply capacity of the air bags?
A: The supply capacity of the air bags is 1000PCS/week.
