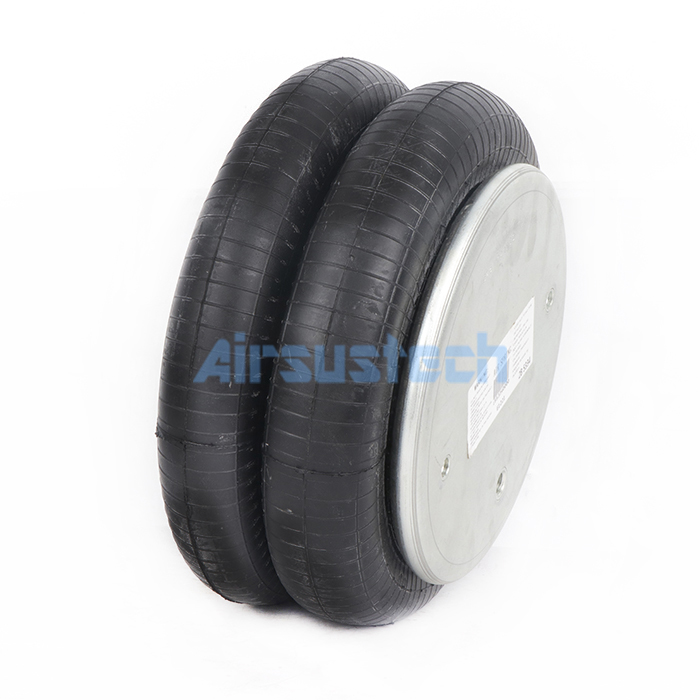

    Industrial Air Springs Fab Tek 04-0080 AIRSUSTECH 2B7400 Air Suspension Systems

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B7400
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    Industrial Air Springs Fab Tek 04-0080 AIRSUSTECH 2B7400 Air Suspension Systems

    Industrial Air Springs Fab Tek 04-0080 AIRSUSTECH 2B7400 Air Suspension Systems


    Product Dimensions


    Dimensions - Min. Compressed Height: 104 mm

    Dimensions - Max. Extended Height: 305 mm

    Dimensions - Cover Plate Width: 231 mm

    Dimensions - Center to Center Distance: 157 mm

    Dimensions - Maximum Diameter: 325 mm

    Air Hole Standard: 1/4 NPTF

    Screw Type: 2×3/8-16UNC


    OEM Original Manufacturer


    BrandPart NumberBrandPart Number
    Fab Tek

    04-0080

    040080

    04 0080

    Firestone

    W01-358-7400

    W013587400

    W01 358 7400

    W01-358-7422

    W013587422

    W01 358 7422

    Contitech

    FD 330-22 313

    FD 33022 313

    FD 330 22 313

    Goodyear

    2B12-309, 2B12-316

    2B12 309, 2B12 316

    2B12309, 2B12316

    Goodyear

    578-92-3-309

    578923309

    578 92 3 309

    Triangle6316 / 4313
    Freightliner

    16-10769-000

    1610769000

    16 10769 000

    GMC693230
    Granning2726HendricksonS1013
    Neway90557016R & S Truck & Body1027519
    Watson & chalinAs0003Ridewell1003587400C
    Dayton354700Volvo3130488
    Scania670199

    What Is Double Convoluted Air Spring Suspension?


    Engineered for demanding industrial applications, our ​​double convolution air springs​​ deliver superior load support and vibration isolation. Featuring ​​2-ply reinforced rubber bellows​​ and ​​zinc-plated steel end plates​​, these durable components withstand rigorous use in heavy machinery, commercial vehicles, and automation systems.


    ​​Key Specifications:​​


    1. ​​Structure:​​ Optimized double convolution design for enhanced stability
    2. ​​Capacity:​​ Supports loads up to 300 kN (adjustable via 4-8 bar pressure)
    3. ​​Materials:​​ Wear-resistant natural rubber with fabric reinforcement
    4. ​​Temperature Range:​​ -40°C to +70°C operation
    5. ​​Movement:​​ 104-305mm stroke length

    ​​Industrial Applications Include:​​


    • Truck/trailer suspensions
    • Press machinery vibration control
    • Conveyor system load leveling
    • AGV vehicle height adjustment

    The Applications of AIRSUSTECH Rubber Air Bags


    • Precision measuring equipment: Electron microscope, optical microscope, 3D measuring instrument, roughness meter, hardness meter, etc.
    • Manufacturing equipment: LCD and semiconductor Assembly & FAB Equipment.
    • Inspection equipment: LCD, semiconductor, PCB, film.
    • Precision processing equipment: Laser, Jig Boring Machine, CNC Grinding Machine.
    • Testing equipment related to automobile parts.
    • Tension and press equipment: Belt tension, lifter, packing, molding, paper.
    • Dustproofing of industrial equipment: Air conditioners, pumps, hydraulic equipment, cooling towers, double floors.
    • Industrial vibrators: Concrete fume pipes, construction equipment, vibrating screens.

    The Detailed Pictures

    Factory Workshop
