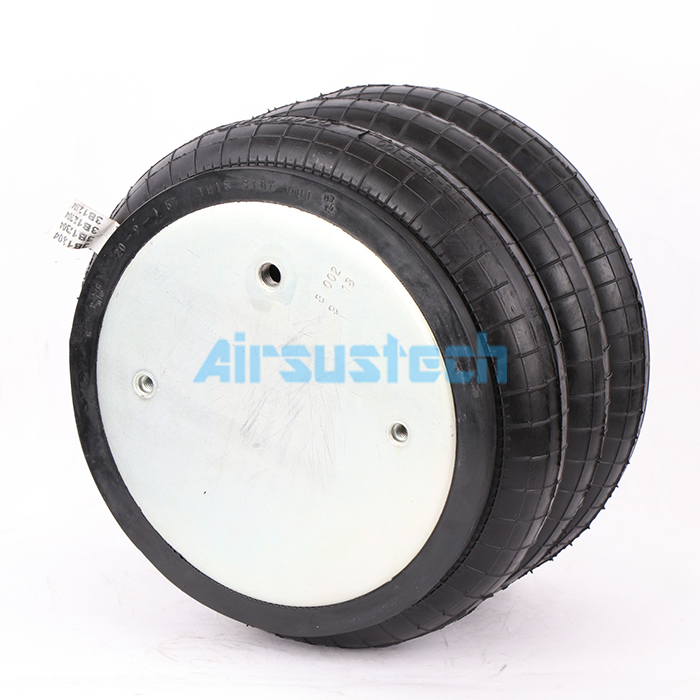

    Natural Rubber Convoluted Air Spring 578-932-304 by Goodyear Pneumatic Air Actuator

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B12-304
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Natural Rubber Convoluted Air Spring 578-932-304 by Goodyear Pneumatic Air Actuator

    Natural Rubber Convoluted Air Spring 578-932-304 by Goodyear Pneumatic Air Actuator


    Product Datas


    Bottom Plate Alignment: Parallel
    Bottom Plate Center To Center Diameter: 6.20 inches
    Bottom Plate Diameter: 9.00 inches
    Bottom Plate Hole Quantity: 2×3/8-16UNC
    Bottom Plate Type: Steel
    Top Plate Alignment: Parallel
    Top Plate Center To Center Diameter: 6.20 inches
    Top Plate Diameter: 9.00 inches
    Top Plate Hole Quantity: 2×3/8-16UNC
    Top Plate Type: Steel

    Expanded Height: 18.0 inches
    Compressed Height: 4.8 inches
    Spring Type: triple convoluted

    Air Connection: 1/4NPT

    Operation: Gas-filled


    Superseded Part Numbers


    Goodyear Bellows NO. 578-932-304

    Goodyear Bellows NO. 578932304

    Goodyear Bellows NO. 578 932 304

    Firestone Air Bag W01-358-8006

    Firestone Air Bag W013588006

    Firestone Air Bag W01 358 8006
    Contitech Air Bag FT 330-29 430

    Contitech Air Bag FT 33029 430

    Contitech Air Bag FT 330 29 430
    Goodyear Air Bag 3B12-304

    Goodyear Air Bag 3B12304

    Goodyear Air Bag 3B12 304
    Goodyear Air Bag 578933100

    Goodyear Air Bag 578-93-3-100

    Goodyear Air Bag 578 93 3 100
    Triangle Air Bag 6334 / 4430
    Leland Air Bag Sc2132
    Arvin Meritor Air Bag 200320


    What Are The Applications of AIRSUSTECH Air Springs?


    • Application of Rubber Air Springs in Hoists

    Conventional hoists use cylinders or hydraulic cylinders to lift objects. These components require a lot of space, are complex to manufacture, heavy, prone to leaks, and difficult to maintain. The use of rubber air springs as lifting elements in hoists overcomes the disadvantages of conventional hoists: they are maintenance-free, have a long service life, and are convenient to operate and replace. Therefore, rubber air springs are increasingly replacing cylinders in hoists.


    • Application of Rubber Air Springs in Vibration Isolation Systems

    The advantages of high-frequency vibration isolation, sound insulation, and low natural vibration frequency of rubber air springs enable better vibration isolation and ensure the safety and stability of the vibration base and control system. Therefore, rubber air springs are often used for vibration isolation of vibrating screens, vibration dampening of luxury car seats, and other equipment.

    • Other Applications of Rubber Air Springs

    Using rubber air springs as vibration damping bases can effectively protect precision equipment, such as the transport and control systems of rocket launchers, from damage during transport. The use of rubber air springs as support tools, along with their lightweight and easy-to-use features, makes them practical for the maintenance of field vehicles and equipment.


    We Have Other Convoluted Rubber Air Springs Cross Goodyear Brand


    Part No.Usable StrokeMax Dia. @ 100 psi InMin Height InchesMax Height InchesBumperForce At Actuator Height Limit (Pounds)Force At Compressed Height Limit (Pounds)
    100 psi80 psi60 psi40 psi100 psi80 psi60 psi40 psi
    3B12-30513.3134.718NO29.252165137073510165791558553960
    3B14-35110.915.57.318.2YES477033851935940138851055078105220
    3B14-35310.915.57.318.2NO477033851935940138851055078105220
    3B14-35413.515.54.718.2NO477033851935940152001108082405220
    3B14-36113.515.54.718.2NO477033851935940152001108082405220
    3B15-37512.316.54.717.0NO6165477534702225166501327597656555
    3B15-3769.716.57.317.0YES6165477534702225149251186589055945
    3B15-37712.316.54.717.0NO6165477534702225166501327597656555
    3B15-3789.716.57.317.0YES6165477534702225149251186589055945

    Product Images




    Factory Workshop

    Quality Natural Rubber Convoluted Air Spring 578-932-304 by Goodyear Pneumatic Air Actuator for sale
