Brand Name : | AIRSUSTECH |
Model Number : | 1B1209 |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |
AIRSUSTECH 1B5330 Cross Contitech FS 330-11 474 Industrial Rubber Air Suspension
1B5330 Air Spring Specifications and Technical Datas
Diameter of the Top Cover Plate: 231 mm
Center-to-Center Distance of Screws on the Top Cover Plate: 157.5
mm
Diameter of the Bottom Cover Plate: 231 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate:
157.5 mm
Screw (Nut) Thread Count for the Top Cover Plate: 2×3/8-16UNC
Screw (Nut) Thread Count for the Bottom Cover Plate: 2×3/8-16UNC
Air Inlet: 1/4NPTF
Max Diameter of the Rubber Bellow: 325 mm
Design Height: 130 mm
Maximum Height: 160 mm
Minimum Height: 55 mm
Vibration isolation - dynamic characteristics values
Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
Force (Load) [kN] | 10.7 | 14.2 | 17.8 | 21.8 | 25.4 | 29.0 | 6.8 |
Spring Rate [N/cm] | 2645 | 3290 | 3935 | 4580 | 5225 | 5870 | |
Natural Frequency [Hz] | 2.5 | 2.4 | 2.4 | 2.3 | 2.3 | 2.3 |
Pneumatic application - static characteristic values
Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[l] |
Height H [mm] | 130 | 10.7 | 14.2 | 17.8 | 21.8 | 25.4 | 29.0 | 7.0 |
120 | 11.9 | 15.7 | 19.6 | 23.8 | 27.8 | 31.8 | 6.3 | |
110 | 12.7 | 16.9 | 21.1 | 25.8 | 30.1 | 34.4 | 5.8 | |
100 | 13.6 | 18.1 | 22.7 | 27.6 | 32.1 | 36.7 | 5.6 | |
90 | 14.4 | 19.2 | 24.0 | 29.1 | 34.0 | 38.9 | 5.3 | |
80 | 15.0 | 20.2 | 25.2 | 30.5 | 35.5 | 40.6 | 4.9 | |
70 | 15.5 | 20.9 | 26.2 | 31.6 | 36.9 | 42.1 | 4.3 | |
60 | 16.0 | 21.6 | 27.1 | 32.6 | 38.0 | 43.3 | 3.9 |
Part Interchanges
Contitech Number: FS 330-11 474
Contitech Number: FS 33011 474
Contitech Number: FS 330 11 474
Firestone Number: W01-358-7008
Firestone Number: W013587008
Firestone Number: W01 358 7008
Goodyear Number: 1B12-300, 1B12-313
Goodyear Number: 1B12300, 1B12313
Goodyear Number: 1B12 300, 1B12 313
Triangle Number: 6374 4474
Triangle Number: 63744474
Holland (Neway) Number: 90557226
The Advantages of AIRSUSTECH Airbags
FAQ
Question: How do you correctly identify the products you need? Answer: Supply part number,we can check directly. Engine and gearbox parts;if you don't know part code,try to found engine or gear model and number. |
Question: What are your packaging conditions? Answer: Generally, the goods are packed in neutral white boxes or brown cartons. If you have a legally registered patent, the goods can be packed in your branded boxes after obtaining your authorization letter. |
Question: Do you test all goods before delivery? Answer: Yes, 100% tested before delivery. |

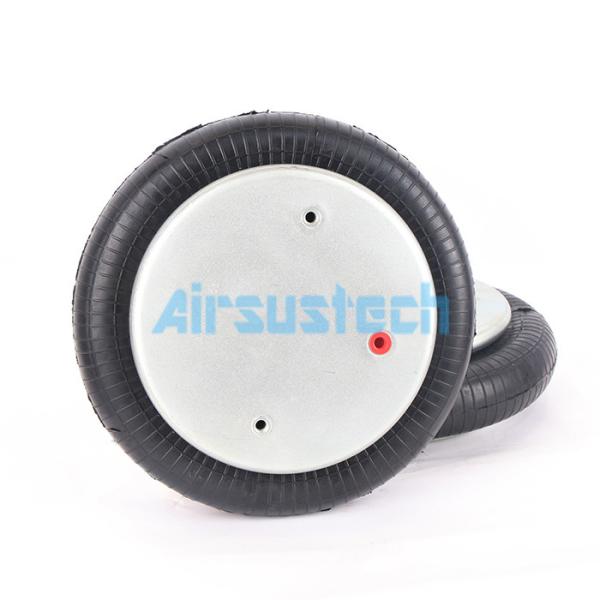

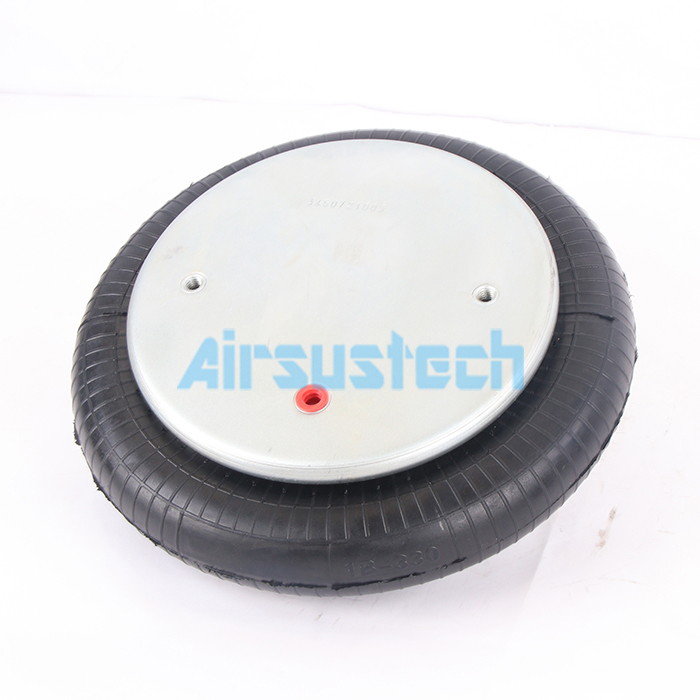

The Real Pictures and Drawing of 1B5330
![]() |
