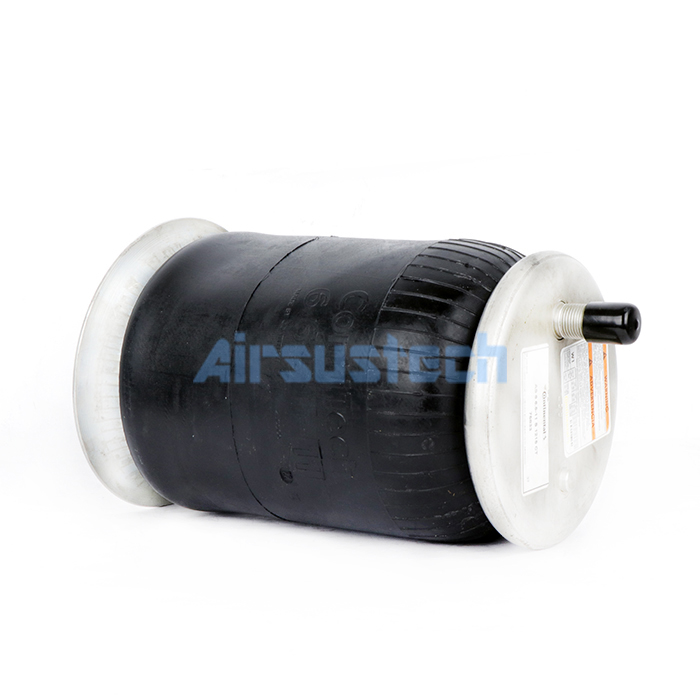

    Complete Rubber Air Spring W01-358-9646 by Firestone Truck Air Shock Suspension

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1T9646
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Complete Rubber Air Spring W01-358-9646 by Firestone Truck Air Shock Suspension

    Complete Rubber Air Spring W01-358-9646 by Firestone Truck Air Shock Suspension


    What is Completed Air Springs?


    Complete air springs are suspension components specifically designed for heavy-duty vehicles in truck, tractor, and trailer combinations. They help minimize the impact of adverse road conditions on the driver and load, maintain vehicle balance during loading, and maximize road, cargo, and passenger safety through balanced handling. With features such as independent movement and variable height adjustment, the complete air spring system offers comfortable use for trailer and truck vehicles to meet application requirements during loading and unloading.


    1T9464 Detailed Datas


    Screw Type2×3/4-16UNF
    Air Connection2×1/4NPTF
    Compressed Height188 mm
    Extended Height622 mm
    Static Height365 mm
    Design Height of Piston143.8 mm
    Inner Diameter of Piston195 mm
    Screw Length32 mm
    Cover Plate Diameter231 mm
    Center to Center Diameter140 mm
    Piston Diameter261 mm

    OEM Manufacturer


    Firestone OEM Manufacturer: W01-358-9646

    Firestone OEM Manufacturer: W013589646

    Firestone OEM Manufacturer: W01 358 9646
    Contitech OEM Manufacturer: 910BP-20P738

    ContiTech OEM Manufacturer: 64694
    Hendrickson OEM Manufacturer: S23611
    Triangle OEM Manufacturer: 8564 6429
    FleetPride OEM Manufacturer: AS9646
    Taurus OEM Manufacturer: 6427
    Triangle OEM Manufacturer: AS-8564
    TRP OEM Manufacturer: AS96460
    Contitech OEM Manufacturer: AS6 6.5-11 S


    The Features of AIRSUSTECH Air Springs


    1. Features: Integrated casting process, strong airtight, leakproof, high surface density, burst resistance
    2. Installation: Dimensions are the same as the original model, direct replacement without modification, easy to install
    3. Quality: Using advanced technology improves product destruction, acid resistance, corrosion resistance, long service life
    4. Design: Designed for comfortable suspension with high compression strength and excellent sound isolation to ensure driving comfort and safety.

    The Detailed Pictures




    Company Profile

    Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
