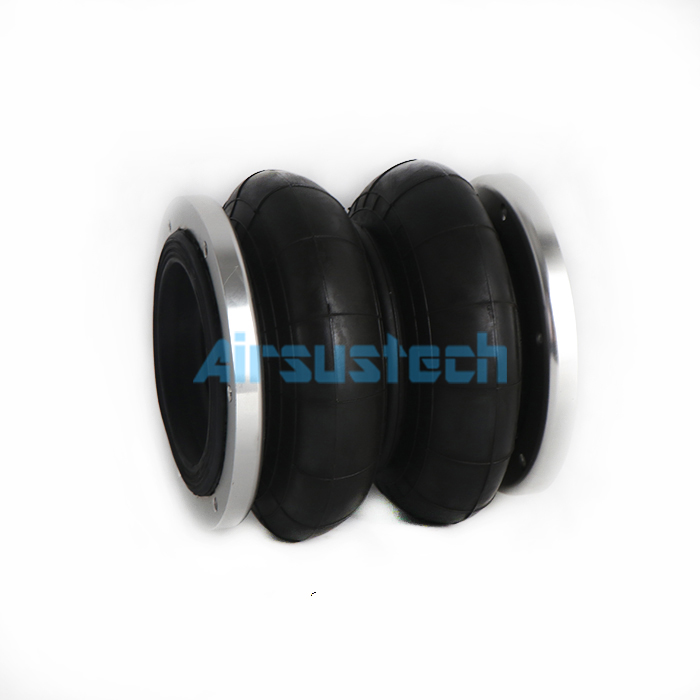

    Flange Connection Contitech Rubber Air Spring FD 120-17 Air Bag for Reduce Shock

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B120-17F
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Flange Connection Contitech Rubber Air Spring FD 120-17 Air Bag for Reduce Shock

    Flange Connection Contitech Rubber Air Spring FD 120-17 Air Bag for Reduce Shock


    Product Information


    WarrantyOne Year
    OriginGuangzhou, China
    ModelTruck/Trailer/Bus/Commercial Car
    PurposeFor Replace
    ConditionBrand New
    TypeGas Filled
    StandardOEM Standard

    Product Specification


    Flange Diameter157 mm
    Center to Center Distance137.5 mm
    Natural Diameter of Rubber Bellow176 mm
    Static Height178 mm
    Screw Type6×1/4''
    Structuredouble convoluted

    The Features of Flange Connection Air Bags


    1. Compact and durable structure: The air spring features an integrated design that combines a rubber lining with a press-fitted metal plate, improving durability and stability.
    2. Easy installation: Gas springs can be easily and directly connected to mechanical equipment without the need for additional components such as flanges.
    3. Excellent shock absorption performance: Excellent vibration isolation and shock absorption performance help extend the service life of the equipment.
    4. Flexible load adjustment: The adjustable internal air pressure allows the air spring to adapt to different load requirements, ensuring consistent performance.
    5. Wide range of applications: Highly adaptable, suitable for machinery and equipment, cars, and buses, making it an ideal solution for all walks of life.

    We Also Have Other Double Convoluted Air Bellows


    AIRSUSTECH NumberCross ReferencesDetails
    2B12017

    Contitech FD 120-17

    Airkraft 113053, 2B-181

    Air Hole: G3/4

    Bead Plate

    2B12017-1/4

    Firestone W01-M58-6353

    Contitech FD 120-17

    Airkraft 113054, 2B-181

    Air Inlet: G1/4

    Bead Plate

    2B12017-G3/8Contitech FD 120-17Air Connection: G 3/8
    2B12017-RC3/8Contitech FD 120-17

    Pneumatic Connection: RC3/8

    Bead Plate


    The Real Pictures




    Company Profile

    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.
