4-M10 Screw Suspension Air Spring Parker 9109044 Pneumatic Air Bellows Supplier

Guangzhou Guomat Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 4-M10 Screw Suspension Air Spring Parker 9109044 Pneumatic Air Bellows Supplier from wholesalers

    Buy cheap 4-M10 Screw Suspension Air Spring Parker 9109044 Pneumatic Air Bellows Supplier from wholesalers
    • Buy cheap 4-M10 Screw Suspension Air Spring Parker 9109044 Pneumatic Air Bellows Supplier from wholesalers
    • Buy cheap 4-M10 Screw Suspension Air Spring Parker 9109044 Pneumatic Air Bellows Supplier from wholesalers
    • Buy cheap 4-M10 Screw Suspension Air Spring Parker 9109044 Pneumatic Air Bellows Supplier from wholesalers
    • Buy cheap 4-M10 Screw Suspension Air Spring Parker 9109044 Pneumatic Air Bellows Supplier from wholesalers

    4-M10 Screw Suspension Air Spring Parker 9109044 Pneumatic Air Bellows Supplier

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B12×1T
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    4-M10 Screw Suspension Air Spring Parker 9109044 Pneumatic Air Bellows Supplier

    4-M10 Screw Suspension Air Spring Parker 9109044 Pneumatic Air Bellows Supplier


    Product Information


    ManufacturerAIRSUSTECH
    Operating Temperature-40℃+70℃
    After-sales ServiceOne Year
    PackagingCartons Or As Customers' Request
    PurposeReduce Shock
    StandardOEM Standard


    Product Specification


    Static Height: 130 mm

    Natural Diameter of Rubber Bellow: 300 mm

    Cover Plate Width: 260 mm

    Center to Center Distance: 232 mm

    Screw Type: 4-M10

    Gas Hole Width: 30 mm

    Screw Length: 25 mm

    Bellows Type: single convoluted


    OEM Original Manufacturer


    Parker Air Spring 9109044

    Firestone Air Spring W01-R58-4060

    Firestone Air Spring W01R584060

    Firestone Air Spring W01 R58 4060

    DUNLOP PNEURIDE Air Spring 12''×1

    DUNLOP PNEURIDE Air Spring 12'×1

    DUNLOP PNEURIDE Air Spring 12×1

    DUNLOP SPRINGRIDE Air Spring SP1540

    DUNLOP SPRINGRIDE Air Spring SP 1540

    DUNLOP SPRINGRIDE Air Spring SP 15 40

    Contitech Air Spring FS 412-10 DS

    Contitech Air Spring FS 41210 DS

    Contitech Air Spring FS 412 10 DS

    Norgren Air Spring M/31121

    Norgren Air Spring M31121

    Norgren Air Spring M 31121


    Applications of Air Springs in These Fields


    • Rubber springs for food processing in vibrating tables
    • Air springs used in the mining and construction field
    • Convoluted bellow cylinder used in various production machines
    • Air springs used in electric overhead traveling cranes
    • Rubber air spring shock isolators in the mining industry
    • Rubber air bellows used in bevelling machines

    We Have Other Flange Connection Rubber Air Springs


    GUOMAT NO.FirestoneDunlop PneurideDunlop SpringrideContitechNorgrenParker
    2 3/4''×12 3/4''×1SP2906FS 22-3 DI9109025
    1B4.5×1PW01R5840504 1/2''×1SP2334FS 44-5 DIPM/310419109400
    1B6×1T(AI)W01R5840786''×1(Al)SP2913FS 76-7 DIPM/310619109004A
    1B6×1T(Steel)W01R5840526''×1(Steel)SP1536FS 76-7 DSM/310619109004
    1B8×1TW01R5840548''×1SP1537FS 138-8 DSM/310819109014
    1B10×1TW01R58405710''×1SP2523FS 210-10 DSM/311019109024
    1B12×1TW01R58406012''×1SP1540FS 412-10 DSM/311219109044
    1B14 1/2''×1TW01R58406314 1/2''×1SP1543FS 614-13 DSM/311419109064
    1B16×1TW01R58406616''×1FS 816-15 DSM/311619109126

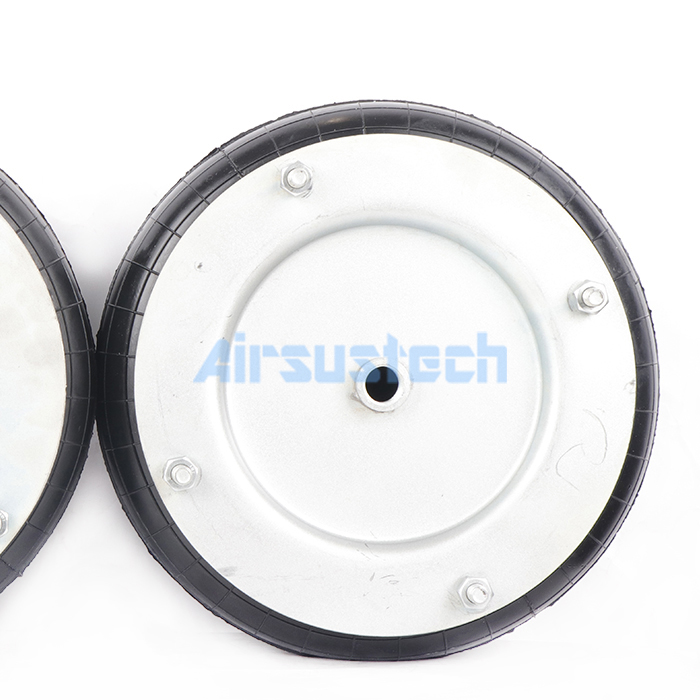

    The Real Pictures
