    Triangle 6325 4320 Double Rubber Air Spring AIRSUSTECH 2B6910 Total Stroke 185MM

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B6910
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Triangle 6325 4320 Double Rubber Air Spring AIRSUSTECH 2B6910 Total Stroke 185MM

    Triangle 6325 4320 Double Rubber Air Spring AIRSUSTECH 2B6910 Total Stroke 185MM


    Product Information


    Brand NameAIRSUSTECH
    Standard

    OEM Standard

    Operating Temperature-40℃+70℃
    WarrantyOne Year
    ConditionBrand New
    CompatibilityUniversal

    Product Specifications


    • Cover Plate

    Top Cover Plate Diameter: 160 mm
    Screw Center Distance of Top Cover Plate: 89 mm
    Bottom Cover Plate Diameter: 160 mm
    Screw Center Distance of Bottom Cover Plate: 89 mm


    • Nut/Blind Nuts

    Top Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC
    Bottom Cover Plate Screw(Nut) Tooth: 2×3/8-16UNC


    • Gas Hole/Air Inlet/Air Fitting

    Air Hole Standard: 1/4NPTF


    • Rubber Bellow

    Rubber Bellow Max. Diameter: 251 mm

    Natural Diameter of Rubber Bellow: 224 mm
    Minimum Height: 75 mm
    Maximum Height: 260 mm


    OEM Manufacturer


    Firestone OEM Manufacturer W01-358-6910
    Contitech OEM Manufacturer FD 200-19 320
    Goodyear OEM Manufacturer 2B9-200/202/216
    Goodyear Bellow NO. 578423202
    Triangle OEM Manufacturer 6325 4320
    Taurus OEM Manufacturer KF218-6910
    Brake & Wheel OEM Manufacturer M3501
    Dina OEM Manufacturer A812719/AZ812719
    Dayton OEM Manufacturer 3546910
    Leland OEM Manufacturer Sc2011
    Navistar OEM Manufacturer 554783C1
    Hendrickson OEM Manufacturer S8768/458433
    Ridewell OEM Manufacturer 1003586910C
    SAF Holland OEM Manufacturer 57006910
    Trailers De OEM Manufacturer 133128
    Tuthill OEM Manufacturer 1371
    Watson&Chalin OEM Manufacturer AS-0001/AS-0156G


    Precautions for Installing and Using Air Springs


    1. Do not exceed the recommended safe extension height: When installing or using gas springs, ensure they do not extend beyond the recommended height. Exceeding this height can cause the air spring to overextend, which can lead to damage or a loss of performance over time.
    2. Avoid using the air spring below its minimum compression height: To extend the life of the air spring, always avoid using it below its minimum compression height. Operating below this limit can cause the rubber bladder to overextend, resulting in premature wear and possible failure.
    3. Do not use at a pressure above 0.7 MPa: Gas springs must operate within the specified pressure range to ensure optimal performance and safety. Pressures above 0.7 MPa can cause the air spring to overextend, compromising its structural integrity.
    4. Avoid deformation of the air spring: During installation and use, care must be taken to avoid deformation of the air spring. A warped air spring can lead to uneven air pressure distribution, which can cause internal damage or even failure.

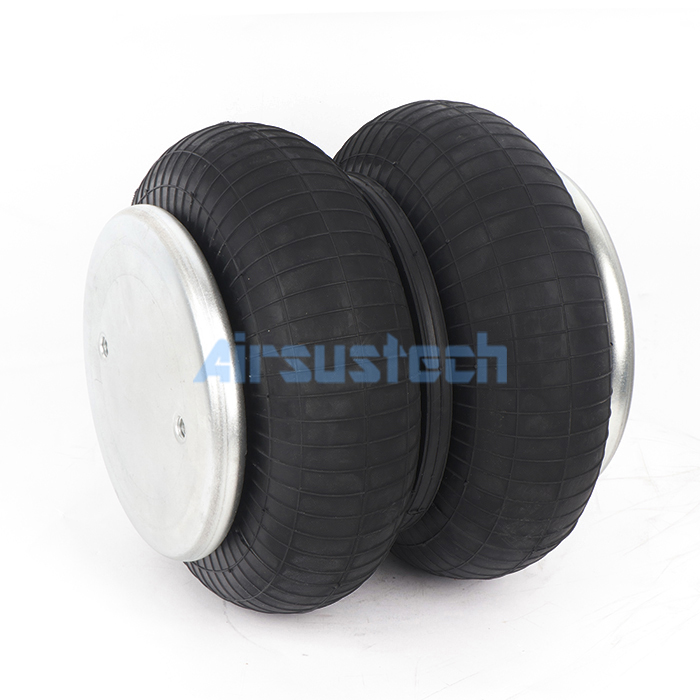

    The Detailed Pictures



    Factory Workshop
