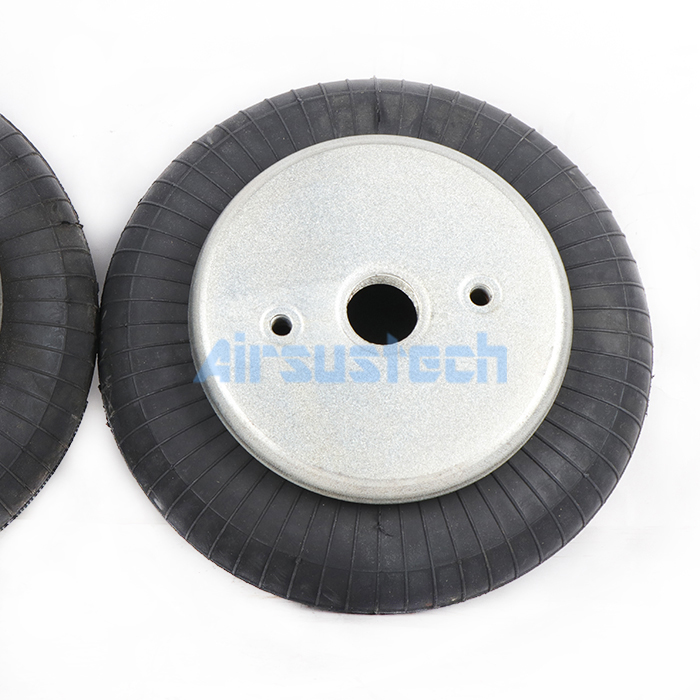

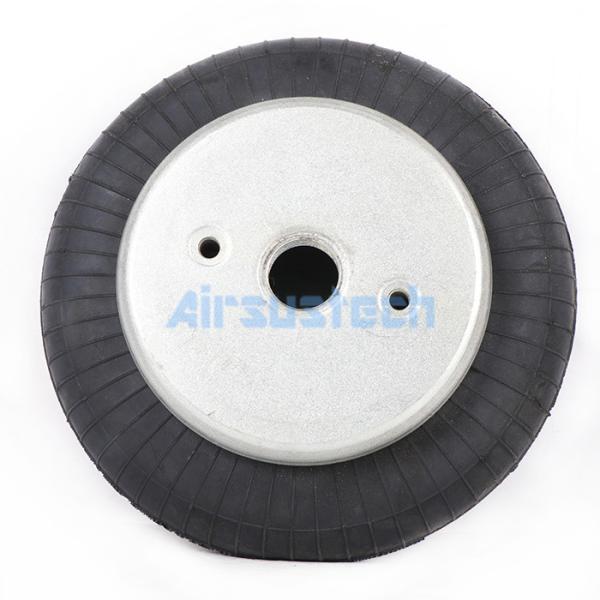

    High-Performance Air Bag Airtech 111003/1B-190FB Industrial Single Air Suspension

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B1209
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    High-Performance Air Bag Airtech 111003/1B-190FB Industrial Single Air Suspension

    High-Performance Air Bag Airtech 111003/1B-190FB Industrial Single Air Suspension


    OEM Manufacturer


    Airtech 111003/1B-190FB

    Firestone W01-M58-6165

    Firestone W01M586165

    Firestone W01 M58 6165

    Contitech FS 120-9

    Contitech FS 1209

    Contitech FS 120 9

    Dunlop 8''x1 S08101

    Dunlop 8'x1 S08101

    Dunlop 8x1 S08101

    Bosch 822419003

    Festo EB-215-80

    Festo EB21580

    Festo EB 215 80

    Norgren PM/31081(8x1)

    Norgren PM31081(8x1)

    Norgren PM 31081(8x1)

    Weforma WBE 300-E1

    Weforma WBE 300E1

    Weforma WBE 300 E1

    Airtech 140293
    Megatech 1S120-9 3/4 M8

    Product Specification and Technical Data Sheet


    Minimum Height: 50 mm

    Maximum Height: 115 mm

    Maximum Diameter of Rubber Bellow: 215 mm

    Air Connection: G3/4

    Screw Type: 2×M8×1.25

    Cover Plate Diameter: 135 mm

    Center to Center Distance Diameter: 70 mm


    Pressure P [bar]345678Vol. V[l]
    Force (Load) [kN]3.95.36.88.39.610.91.8
    Spring Rate [N/cm]131516201925223025352840
    Natural Frequency [Hz]2.92.82.72.62.62.6

    Pressure p[bar]245678Vol.[l]
    Height H [mm]1203.14.35.66.989.21.9
    1103.95.36.88.39.610.91.8
    1004.56.17.99.71112.41.7
    9056.88.910.812.213.8
    805.57.49.711.613.315.01.3
    705.97.910.312.314.216.01.1
    606.38.210.713.01517.00.9

    Product Applications


    Paper machinery
    Textile machinery
    Vibrating machinery
    Baker peeling machinery
    Piston machines
    Scissors type lifting table
    Press
    Roll tensioner

    Assistant air suspension for motor homes


    AIRSUSTECH Air Spring Function


    The air spring has nonlinear characteristics, and its stiffness changes with the load, so its natural frequency remains almost unchanged under any load, so the spring device has almost constant characteristics.


    1.it has good high-frequency vibration absorption and sound insulation performance

    2.it can simultaneously Withstand axial and radial loads.

    3.Different bearing capacities can be obtained by adjusting the internal pressure.


    Therefore, it can meet the needs of various loads.
