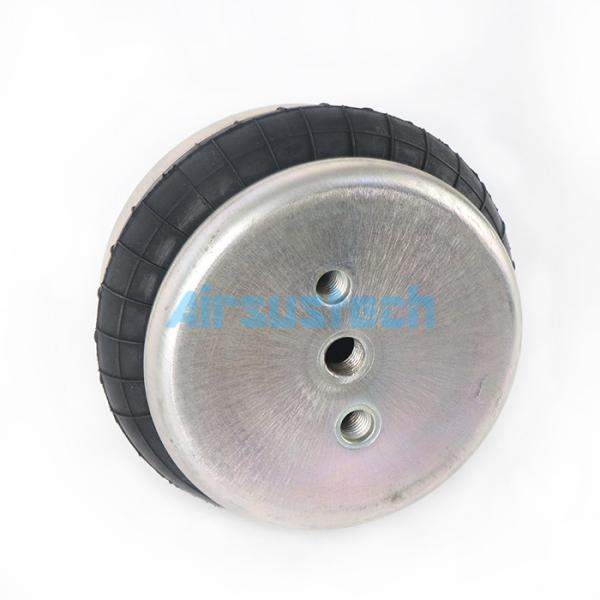

Guangzhou AIRSUSTECH 1B130070 Cross Contitech FS 50-5 Rubber Convoluted Air Spring

Product Introduction

Air springs are extremely durable, precisely engineered, and cost-effective for a variety of actuation and vibration isolation applications. AIRSUSTECH air springs feature a proven design, natural rubber flex member construction, and corrosion-resistant end retainers to deliver superior quality and performance.

1B130070 Specifications and Technical Datas

Diameter of the Top Cover Plate: 114 mm
Center-to-Center Distance of Screws on the Top Cover Plate: 44.5 mm
Diameter of the Bottom Cover Plate: 114 mm
Center-to-Center Distance of Screws on the Bottom Cover Plate: 44.5 mm
Screw (Nut) Thread Count for the Top Cover Plate: 2×M10×1.5
Screw (Nut) Thread Count for the Bottom Cover Plate: 2×M10×1.5
Air Connection: ZG1/4
Max Diameter of the Rubber Bellow: 145 mm

Design Height: 70 mm
Maximum Height: 100 mm
Minimum Height: 50 mm

OEM Cross References

Contitech Air Spring FS 50-5

Contitech Air Spring FS 505

Contitech Air Spring FS 50 5

Contitech Air Spring FS50-5

Contitech Air Spring FS505

Contitech Air Spring FS50 5
Firestone Air SpringW01-M58-6140

Firestone Air SpringW01M586140

Firestone Air SpringW01 M58 6140

Firestone Air SpringWO1-M58-6140

Firestone Air SpringWO1M586140

Firestone Air SpringWO1 M58 6140

AIRSUSTECH Air Spring130070J-1

AIRSUSTECH Air Spring 1B130070

Application of Air Spring in Stone Powder Vibration Screening Machine

The air spring airbag interacts with the vibration of the screening machine through air pressure to form a dynamic balance. When the screening machine is running, the air pressure in the airbag will be automatically adjusted to offset the impact caused by the vibration. This design can not only reduce the vibration amplitude of the equipment, but also reduce the vibration transmission to the ground or other connecting parts, thereby extending the service life of the equipment.

Obvious Advantages

1. Efficient vibration reduction: AIRSUSTECH air suspensions can significantly reduce the vibration amplitude and improve the stability of equipment operation.
2. Easy installation: No complicated installation process is required, just replace the traditional shock absorber.
3. Simple maintenance: There are no mechanical parts inside the airbag, low maintenance cost and long service life.
4. Strong adaptability: It can be adjusted according to different screening machine models and working conditions to meet diverse needs.

Factory Workshop

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

AIRSUSTECH is another brand of Guangzhou Guomat Air Spring Co., Ltd.

AIRSUSTECH is focus on industrial air spring.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
