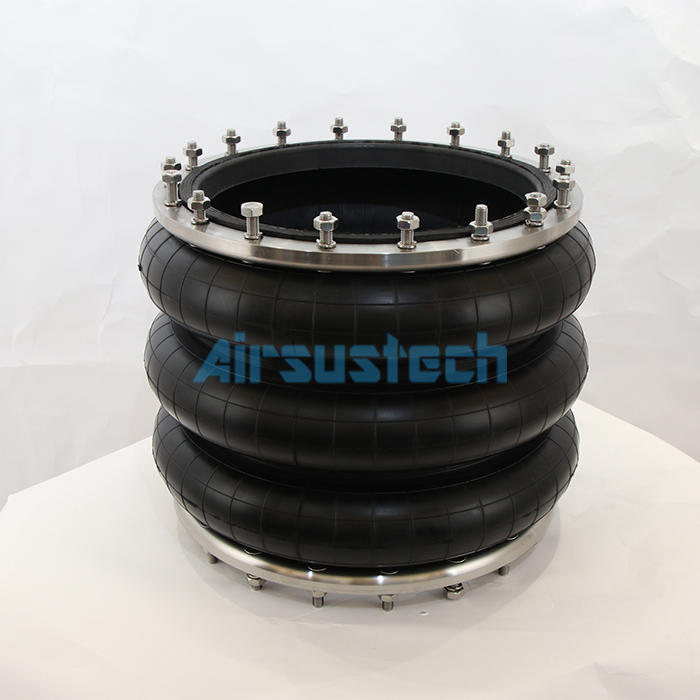

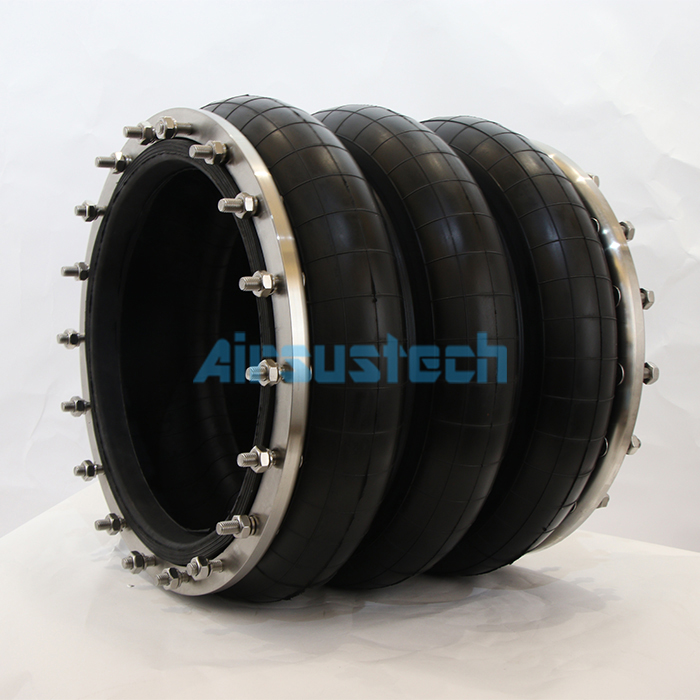

    Rubber Industrial Air Spring 3H400312 Triple Convoluted Air Bag with Flange Ring

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3H400312
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Rubber Industrial Air Spring 3H400312 Triple Convoluted Air Bag with Flange Ring

    Rubber Industrial Air Spring 3H400312 Triple Convoluted Air Bag with Flange Ring


    What is Flange Connection Air Springs?


    A flange connection air spring is a type of air suspension component that utilizes flanges for secure attachment to other structures, combining the benefits of air springs with robust mechanical connections.


    Product Datas


    Dimensions - Minimum Height122 mm
    Dimensions - Maximum Height378 mm
    Dimensions - Natural Height312 mm
    Dimensions - Maximum Diameter430 mm
    Dimensions - Cover Plate Diameter396 mm
    Dimensions - Center to Center Distance358 mm
    Screw Type18-M10

    Cross References


    Ribbed neck aluminum bead rings (equal spacing), 45 mm bolts, nuts, washers

    W01-M58-7530, W01M587530, W01 M58 7530

    WO1-M58-7530, WO1M587530, WO1 M58 7530

    Rolled plate assembly, 1/2 blind nuts, 3/4NPTW01-358-7286, W013587286, W01 358 7286

    WO1-358-7286, WO13587286, WO1 358 7286

    Rubber bellows onlyW01-358-7914, W013587914, W01 358 7914

    WO1-358-7914, WO135879146, WO1 358 7914


    Key Components and Functionality


    1. Air Spring Basics:

    Uses compressed air within a flexible bellows to provide adjustable support, damping, and load-bearing capabilities. Common in vehicles (trucks, buses, trains) and industrial machinery.


    2. Flange Connection:

    Design: Features a protruding rim (flange) at one or both ends, typically with bolt holes for secure mounting. The flange ensures alignment and distributes stress evenly.

    Sealing: Often includes gaskets, O-rings, or sealed grooves to maintain airtightness, critical for pressure retention.

    Materials: Flanges are usually made of durable metals (steel, aluminum) to withstand high pressure, vibration, and environmental stressors.


    Other Triple Convoluted H Series AIRSUSTECH Air Springs


    Product NumberNonimal Diameter (mm)0.7Mpa Max.DiameterLoad at Design Height0.7Mpa
    Natural Frequency
    Stroke Range
    0.2Mpa0.5MPa0.7MpaMin. HeightMax. Height
    3H2002061502202296348881.68116236
    3H250260185270507134419241.7116299
    3H255230200280566146020701.3116264
    3H255322200290116400
    3H310306230330861223931701.3120354
    3H3303062503551035273038921.4120354
    3H3603062803801250322045701.3122360
    3H3803163004051401367252351.32122370
    3H4003123204301724443663081.19122360
    3H52031240055030467932112621.32118354
    3H580306500600395010181144091.22118354
    3H630376530660424311045156120.94122436
    3H680376580710525913620193391.27122436
