Brand Name : | AIRSUSTECH |
Model Number : | 2B4.5×2P |
Certification : | ISO/TS16949:2009 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, Paypal or Others |
Supply Ability : | 1000PCS/Week |
Delivery Time : | 5-8 Working Days |

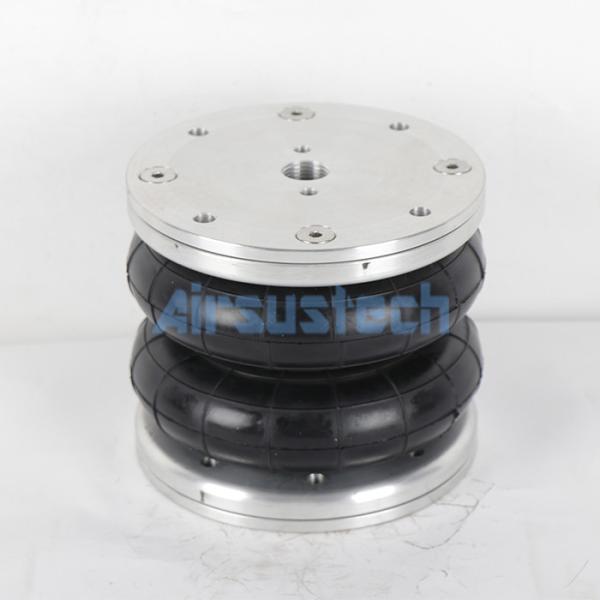

Original AIRSUSTECH 4.5×2 Rubber Air Bag W01-R58-4051 Firestone Air Suspension
Product Specification: 2B4.5×2P
Type | Max. Diameter | Minimum Height (mm) | Maximum Height (mm) | Total Stroke | Static Height (mm) | C to C Diameter | Space Required |
41/2×2 | 125 | 65 | 145 | 80 | 100 | 93 | 140 |
6×2 | 168 | 73 | 170 | 100 | 120 | 127 | 180 |
8×2 | 230 | 72 | 225 | 153 | 150 | 156 | 240 |
91/4×2 | 260 | 70 | 240 | 170 | 160 | 168 | 275 |
10×2 | 280 | 70 | 240 | 170 | 160 | 181 | 295 |
12×2 | 330 | 74 | 240 | 166 | 160 | 232 | 345 |
141/2×2 | 395 | 70 | 280 | 210 | 180 | 283 | 410 |
16×2 | 430 | 77 | 320 | 243 | 180 | 283 | 445 |
OEM Original Manufacturer
Manufacturer: Firestone
OEM Number: W01-R58-4051 / W01R584051 / W01 R58 4051
Manufacturer: Contitech
OEM Number: FD 44-10 DI CR / FD 4410 DI CR / FD 44 10 DI CR
Manufacturer: Dunlop
OEM Number: SP2441 / SP 2441 / SP 24 41
Manufacturer: Dunlop
OEM Number: 4 1/2''×2 / 4 1/2'×2 / 4 1/2×2
Manufacturer: DUNLOP UK (PNEURIDE)
OEM Number: PNP 305590107 / PNP305590107
Manufacturer: YS-AIR
OEM Number: YS-115-2V / YS1152V / YS 115 2V
Manufacturer: Norgren
OEM Number: PM/31042 / PM31042 / PM 31042
Air Spring Solutions for Scissor Lifts
With these advantages and solutions, air actuators offer strong
support for scissor lift applications and meet the high demands for
efficiency, comfort, and durability in modern industrial
environments.
Precautions When Using Air Springs
1. Do not use air springs that exceed the recommended safe
extension height.
2. To extend the service life of the air spring, do not use the air
spring below the minimum compression height.
3. Do not use the air spring at a pressure above 0.7 MPa.
4. Do not use the air spring in a twisted state.
We Have Other Convoluted Air Spring Replacements to Firestone Air Bags
W01-R58-8514 | W01-R58-9881 | W01-R58-4037 | W01-R58-4073 | W01-R58-4061 |
W01-R58-8513 | W01-R58-8106 | W01-R58-4050 | W01-R58-4058 | W01-R58-4060 |
W01-R58-0736 | W01-R58-8107 | W01-R58-4051 | W01-R58-4057 | W01-R58-4062 |
W01-R58-0028 | W01-R58-6339 | W01-R58-4045 | W01-R58-4081 | W01-R58-4050 |
W01-R58-8765 | W01-R58-7370 | W01-R58-4055 | W01-R58-4078 | W01-R58-4051 |
W01-R58-8766 | W01-R58-8601 | W01-R58-4048 | W01-R58-4070 | W01-R58-4035 |
W01-R58-6361 | W01-R58-4023 | W01-R58-4044 | W01-R58-4043 | W01-R58-4076 |
W01-R58-6364 | W01-R58-4085 | W01-R58-4075 | W01-R58-4046 | W01-R58-4048 |
W01-R58-6345 | W01-R58-4052 | W01-R58-4047 | W01-R58-4085 | W01-R58-4044 |
W01-R58-7358 | W01-R58-4076 | W01-R58-4057 | W01-R58-4064 | W01-R58-4045 |
W01-R58-6338 | W01-R58-4053 | W01-R58-4038 | W01-R58-4063 | W01-R58-4036 |
W01-R58-6348 | W01-R58-4092 | W01-R58-4095 | W01-R58-4065 | W01-R58-4075 |
W01-R58-8721 | W01-R58-4086 | W01-R58-4056 | W01-R58-4059 | W01-R58-4047 |
W01-R58-8722 | W01-R58-4062 | W01-R58-4035 | W01-R58-4058 | W01-R58-4052 |
W01-R58-6359 | W01-R58-4054 | W01-R58-4081 | W01-R58-4054 | W01-R58-4059 |
W01-R58-6334 | W01-R58-4060 | W01-R58-4078 | W01-R58-4055 | W01-R58-4043 |
W01-R58-8747 | W01-R58-4063 | W01-R58-4070 | W01-R58-4056 | W01-R58-5522 |
W01-R58-8786 | W01-R58-4074 | W01-R58-4036 | W01-R58-4053 |
