    100% Tested AIRSUSTECH 2B7070 Cross Festo 36494 Double Convoluted Air Actuator

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B7070
    Certification : ISO/TS16949:2009
    Price : $99.9-199.9/PC
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    100% Tested AIRSUSTECH 2B7070 Cross Festo 36494 Double Convoluted Air Actuator

    100% Tested AIRSUSTECH 2B7070 Cross Festo 36494 Double Convoluted Air Actuator


    2B7070 Detailed Specifications


    Body Diameter: 146 mm
    Temperature Range : -40℃+70℃
    Air Inlet Type: Imperial
    Pressure [Max]: 0-8 bar
    Design Height: 162 mm
    Air Inlet: G 1/4
    Nut/Blind Nuts: 4×M12
    Center to Center Distance: 44.5 mm
    Center Distance Air Hole Betweeen Screw: 2×M8×1.25
    Cover Plate Diameter: 105 mm


    OEM Manufacturer


    Festo OEM Manufacturer: 36494
    Festo OEM Manufacturer: EB-165-125

    Festo OEM Manufacturer: EB165125

    Festo OEM Manufacturer: EB 165 125


    The Applications of Air Springs


    1Precision measuring equipment: Electron microscope, optical microscope, 3D measuring instrument, roughness meter, hardness meter, etc.
    2Manufacturing equipment: LCD and semiconductor Assembly & FAB Equipment.
    3Inspection equipment: LCD, semiconductor, PCB, film.
    4Precision processing equipment: Laser, Jig Boring Machine, CNC Grinding Machine.
    5Testing equipment related to automobile parts.
    6Tension and press equipment: Belt tension, lifter, packing, molding, paper.
    7Dustproofing of industrial equipment: Air conditioners, pumps, hydraulic equipment, cooling towers, double floors.
    8Industrial vibrators: Concrete fume pipes, construction equipment, vibrating screens.

    Other Double Convoluted Air Suspensions OEM Numbers


    2B6-5302B6-531FD 40-10 CISP2907
    2B6-5322B6-535FD 70-13 CISP2441
    2B6-5362B7-540FD 110-15 CISP2917
    2B7-5412B7-542FD 120-17 CISP1482
    2B7-5452B7-546FD 120-20 CISP1490
    2B8-5502B8-552FD 200-19 CISP1538
    2B8-5532B8-554FD 200-22 CISP1541
    2B9-2002B9-201FD 200-25 CISP2782NB
    2B9-2042B9-205FD 330-22 CISP1556
    2B9-2162B9-250FD 330-30 CISP1557
    2B9-2512B9-253FD 530-22 CISP1408
    2B12-3092B12-218FD 530-35 CISP2342
    2B12-4252B12-429FD 960-22 CI
    2B12-4372B12-416FD 1330-25 CI
    2B14-3522B14-353
    2B14-3542B14-355
    2B14-3622B14-363
    2B14-4522B15-375
    2B15-3762B15-377
    2B15-3782B19-8433
    2B22-8539

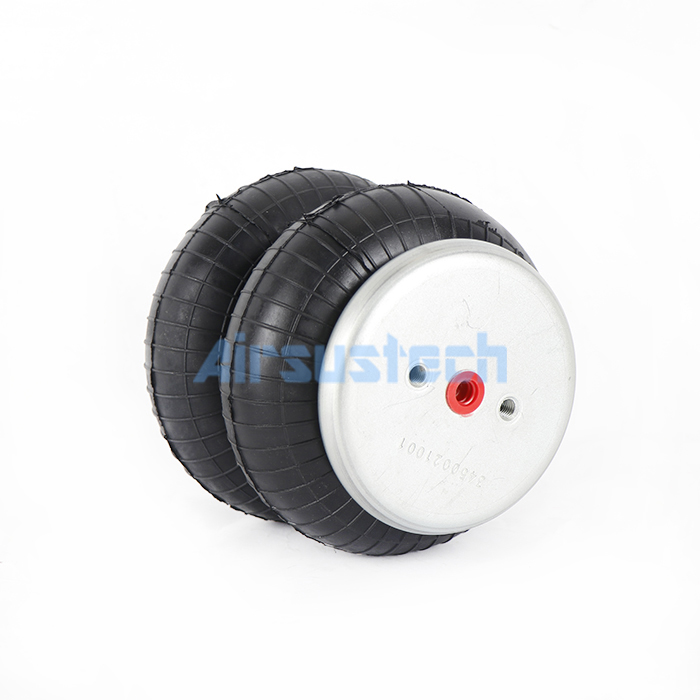

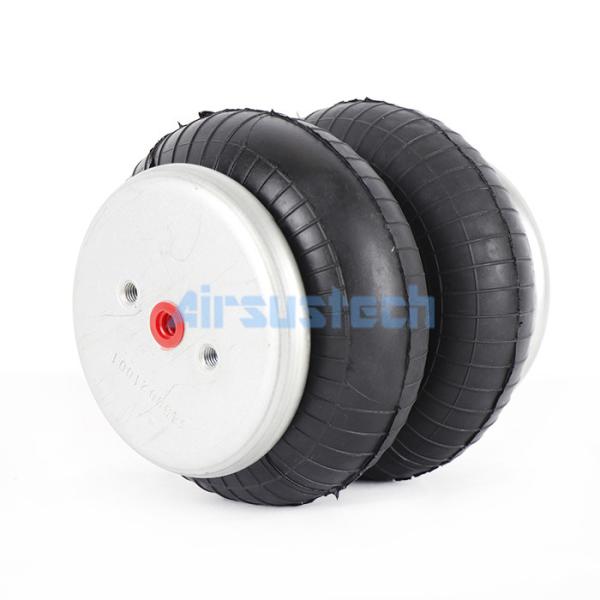

    2B7070 Real Pictures





    Company Profile

    Guangzhou Guomate Air Spring Co., Ltd. is located in Guangzhou, China's first open port, just a fifteen-minute drive from Guangzhou Baiyun International Airport. The company boasts a modern building with an area of ​​approximately 20,000 square meters and state-of-the-art production facilities for rubber air springs. It is currently the largest air spring production base in China. The company's products are primarily used in commercial vehicles, rail vehicles, and industrial machinery and equipment. The main products are: rubber air springs, bus airbags, truck airbags, air springs for the paper machine industry, airbags for large washing machines, and rubber air springs for automobiles. We currently offer hundreds of models and designs and can also design and produce according to customer requirements or existing product specifications. New and existing customers are welcome to contact us for a consultation. Our company utilizes state-of-the-art domestic air spring processing facilities and integrates foreign air spring production technologies. Thanks to our unique production process, we produce according to international standards and thus create world-class products.


    Factory Workshop
