    Steel Cover Plate Air Actuator Norgren M/31061 Single Pneumatic Air Suspension

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 1B6×1T
    Certification : ISO/TS16949:2009
    Price : $119.9-159.9/pc
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Steel Cover Plate Air Actuator Norgren M/31061 Single Pneumatic Air Suspension

    Steel Cover Plate Air Actuator Norgren M/31061 Single Pneumatic Air Suspension


    Product Introduction


    Air springs are extremely durable, precisely engineered, and cost-effective. They can be used in numerous propulsion and vibration isolation applications. AIRSUSTECH air springs offer superior quality and performance through a proven design, construction with flexible natural rubber elements, and corrosion-resistant end brackets.


    1B6×1T Technical Data


    AIRSUSTECH Number1B6×1T
    Operating Temperature-40℃+70℃
    Operating Pressure0-8 bar
    Port Size1/2 BSP
    Maximum Diameter168 mm
    Number of Convolutions1
    Stroke Length45 mm
    Operationgas filled
    Material - Bodynatural rubber
    Dimensions - Height [min]45 mm
    Dimensions - Height [max]95 mm
    BrandAIRSUSTECH

    OEM Manufacturer


    Norgren OEM Manufacturer: M/31061

    Norgren OEM Manufacturer: M31061

    Norgren OEM Manufacturer: M 31061

    Firestone OEM Manufacturer: W01-R58-4052

    Firestone OEM Manufacturer: W01R584052

    Firestone OEM Manufacturer: W01 R58 4052
    Dunlop Pneuride OEM Manufacturer: 6"x1 (Steel)

    Dunlop Pneuride OEM Manufacturer: 6x1 (Steel)

    Dunlop Pneuride OEM Manufacturer: 6'x1 (Steel)
    Dunlop Springride OEM Manufacturer: SP1536

    Dunlop Springride OEM Manufacturer: SP 1536

    Dunlop Springride OEM Manufacturer: SP 15 36
    Contitech OEM Manufacturer: FS 76-7 DS

    Contitech OEM Manufacturer: FS 767 DS

    Contitech OEM Manufacturer: FS 76 7 DS

    Contitech OEM Manufacturer: FS76-7 DS

    Contitech OEM Manufacturer: FS767 DS

    Contitech OEM Manufacturer: FS76 7 DS
    Parker OEM Manufacturer: 9109004


    4-Step Selection Guide for Buyers


    1. Define: Primary load type (static/dynamic/impact)
    2. Measure: Operating frequency range
    3. Identify: Space constraints (see our compact 168mm OD design)
    4. Select: Port type (SAE, BSPP, NPT with anti-vibration threads)

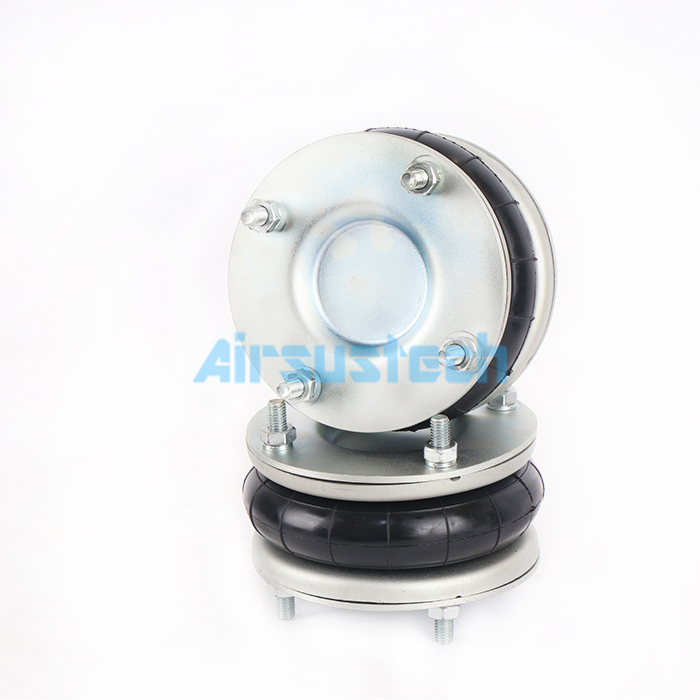

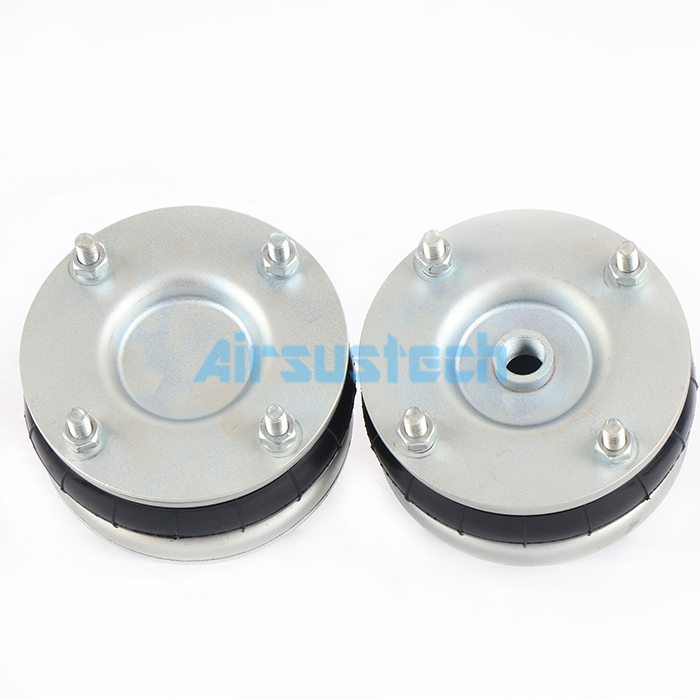

    Product Images
