    Gas Filled Double Convoluted Air Springs Contitech FD 330-22 363 Industrial Equipment Shock Absorption

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 2B 6330
    Certification : ISO/TS16949:2009
    Payment Terms : T/T, Western Union, Paypal or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 5-8 Working Days
    • Product Details
    • Company Profile

    Gas Filled Double Convoluted Air Springs Contitech FD 330-22 363 Industrial Equipment Shock Absorption

    Double Convoluted Air Springs Contitech FD 330-22 363 Rubber Industrial Industrial Equipment Shock Absorption


    Cross Reference


    Good Year: 2B12-425

    Good Year: 2B12-311

    Navistar: 1685179C1

    Hendrickson: 1VA1816

    Ridewell: 1003587180C

    Contitech: FD 330-22 363

    Contitech: FD 330 22 363

    Contitech: FD 33022363

    SAF Holland: 57007180

    Firestone:W01-358-7180

    Firestone: W01 358 7180

    Firestone: W013587180

    Firestone: WO13587180

    Firestone: WO1 358 7180

    Firestone: WO1-358-7180

    Watson&Chalinl: AS01541 G/01881F

    Triangle: 6316

    Triangle: 4363

    Peerless: 0550 00001

    Airkraft: 11506 1/3B-356

    Vibracoustic: VSP2B22R7180

    EI Rise: 8030190

    Kwiklok/Todco(Jifflox)

    Leland: Sc2075


    The detailed Specifications and parameters


    Blind Nut/Screw teeth

    Screw teeth of the top plate: 2×3/8UNC

    Screw teeth of the bottom plate: 2×3/8UNC

    The screw center distance: 157mm

    Air inlet/Air hole/Air fittings

    1/4NPTF

    The distance between the screw center and the air inlet:73mm

    Cover plate

    Top cover plate:231mm

    Bottom cover plate:231mm

    Rubber Max. OD: 325mm

    Height

    Min. height: 81mm

    Max. height: 305mm

    Bumper block: Without

    Girdle ring/Girdle hoop/belt loop: one piece of belt loop/girdle hoop/girdle ring


    Other types of Continental convoluted air springs replacement we could offer


    FS 40-6 1/8 M8FS 70-7 1/4 M8FS 120-9 3/4 M8
    FS 120-9 1/4 M8FS 120-10FS 200-10 3/4 M8
    FS 200-10 4FS 330-11 474FS 330-11
    FS 330-11 468FS 330-11 647FS 330-14
    FD 200-19 450FD 330-22 500FD 40-10
    FD 200-19 448FD 330-22 313FD 70-13
    FD 200-19 506FD 330-22 337FD 120-17
    FD 200-19 510FD 330-22 318FD 120-17
    FD 200-22 524FD 330-22 346FD 120-17
    FD 200-19 P04FD 330-22 364FD 120-17
    FD 120-20FD 330-22 365FD 200-22 510
    FD 120-20 509FD 330-22 366FD 200-22 706
    FD 120-20 509FD 330-22 367FD 200-25
    FD 330-22 331FD 200-25 427FD 330-22 368
    FD 200-25 454FD 40-10FD 200-19 504
    FD 200-25FD 330-22 327FD 200-19
    FD 330-22 343FD 200-19 724FD 200-25 453
    FD 330-22 334FD 200-19 539FD 200-25 426
    FD 330-30-371FD 200-19 505FD 200-25 427
    FD 331-26-514FD 200-19 319FD 200-25 463
    FD 331-26-541FD 330-22 471FD 200-19 310
    FD 200-25 429FD 331-26-480FD 200-19 315
    FD 200-25 507FD 530-35 545FD 200-19 362
    FD 200-25 511FD 530-35 543FD 330-22 364
    FD 200-19 320FD 200-25 717FD 530-35 530
    FD 200-19 504FD 530-22 321FD 530-35 545
    FD 200-19 452FD 330-22 363FD 530-35 720
    FD 200-19 499FD 330-22 472FD 120-17 509
    FD 200-19 315FT 210-32FT 330-29 498
    FT 330-29 546FT 330-29 547FT 330-29 430
    FT 330-29 431FT 330-29 432FT 330-29 433
    FT 330-29 469FT 330-29 466FT 412-323

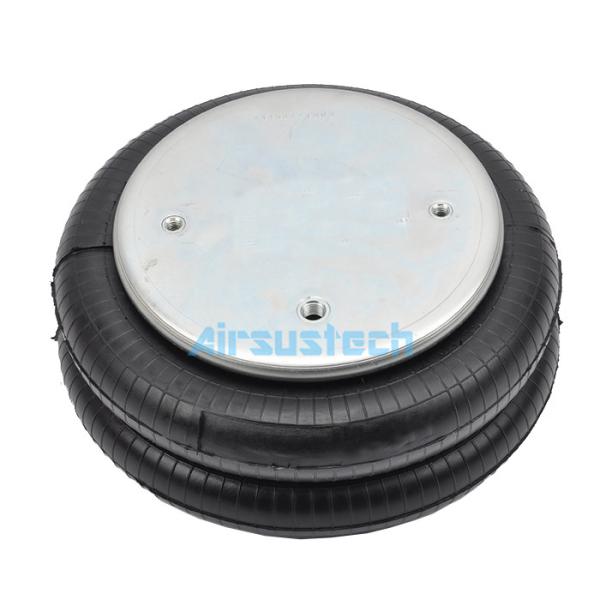

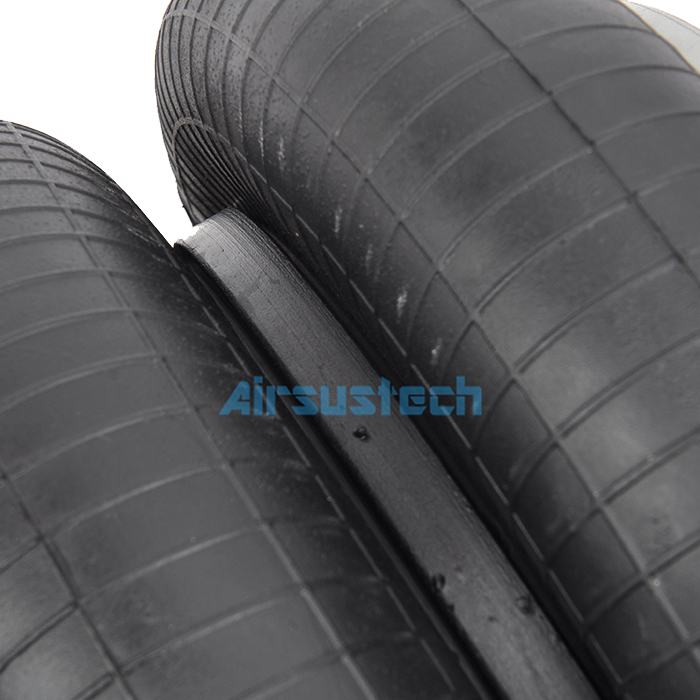

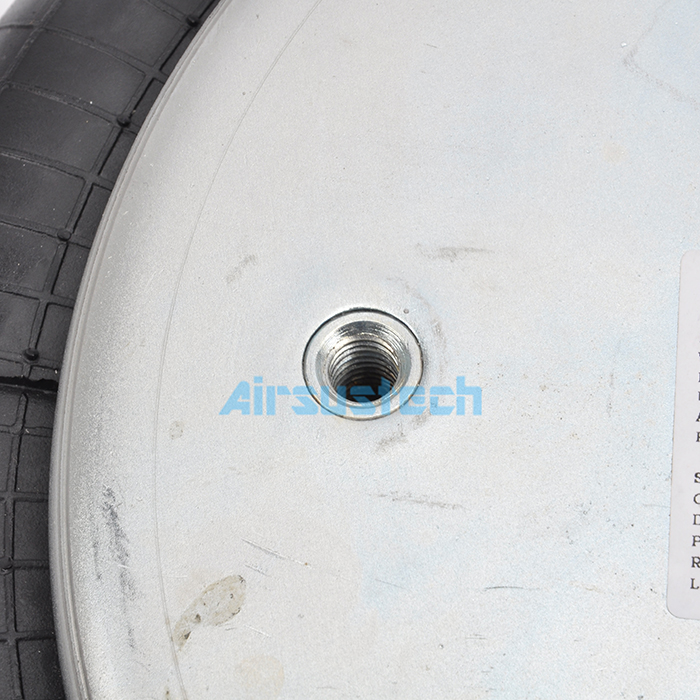

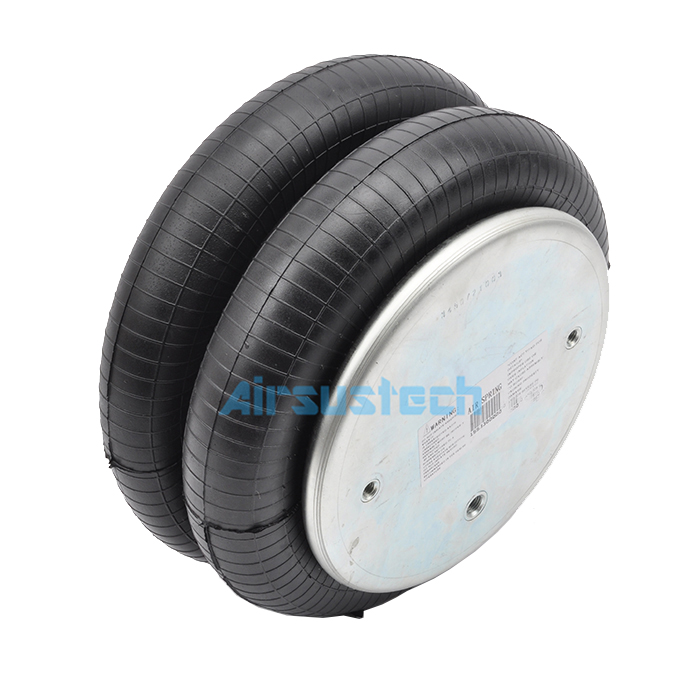

    The reated picture
